METZ CONNECT Patch Panel Splice 12xLC-D OS2 1504597412-F

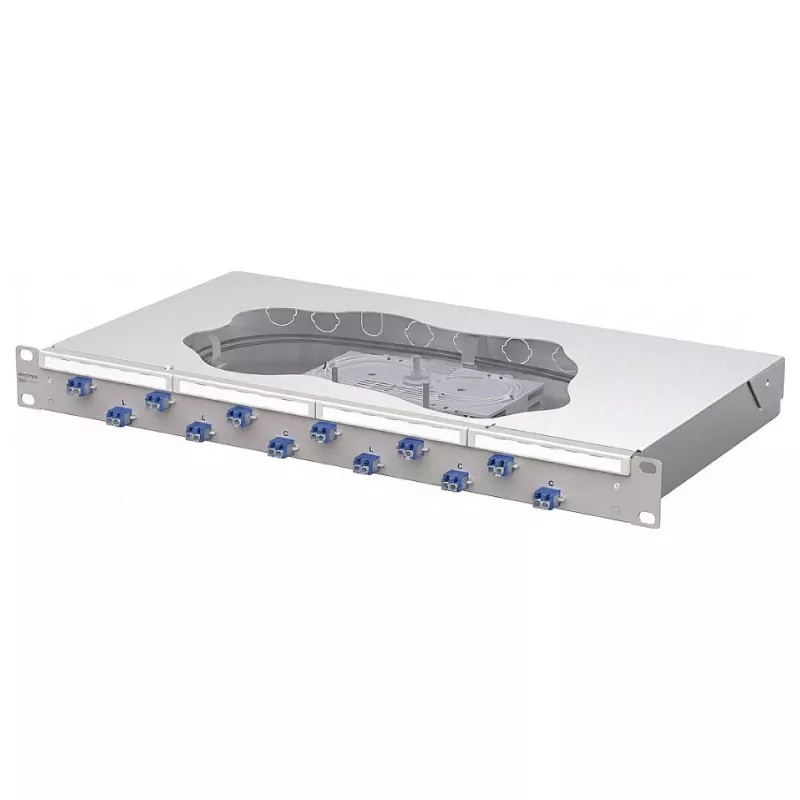

The METZ CONNECT patch panel splice 12xLC-D OS2 is a high-quality fiber optic splice box designed for professional network installations. This 1U 19-inch rack mount panel provides 12 LC-Duplex ports and is pre-assembled with pigtails and adapters for quick deployment. Ideal for data centers, telecom rooms, and enterprise networks requiring reliable single-mode fiber connectivity.

Advantages

Pre-assembled with 2m LC-PC pigtails and LC-Duplex adapters, reducing installation time. Integrated splice tray with holders ensures organized fiber management. Durable steel housing with light grey powder coating (RAL 7035) offers protection and longevity.

Suitable for

• Data centers and server rooms
• Telecommunications infrastructure
• Enterprise network cabling
• Fiber-to-the-home (FTTH) distribution

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Mounting: 19-inch, 1U
• Number of Ports: 12
• Connector Type: LC-Duplex
• Fiber Type: OS2 (Single-mode), 9/125 µm
• Pigtail Connector: LC-PC (UPC), 2m length
• Housing: Steel, powder-coated, light grey (RAL 7035)
• Protection Class: IP20
• Operating Temperature: -10 to +60 °C
• Insertion Loss: < 0.25 dB typical
• Return Loss: > 50 dB typical

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cable management. Suitable for both horizontal and vertical cabling systems.
