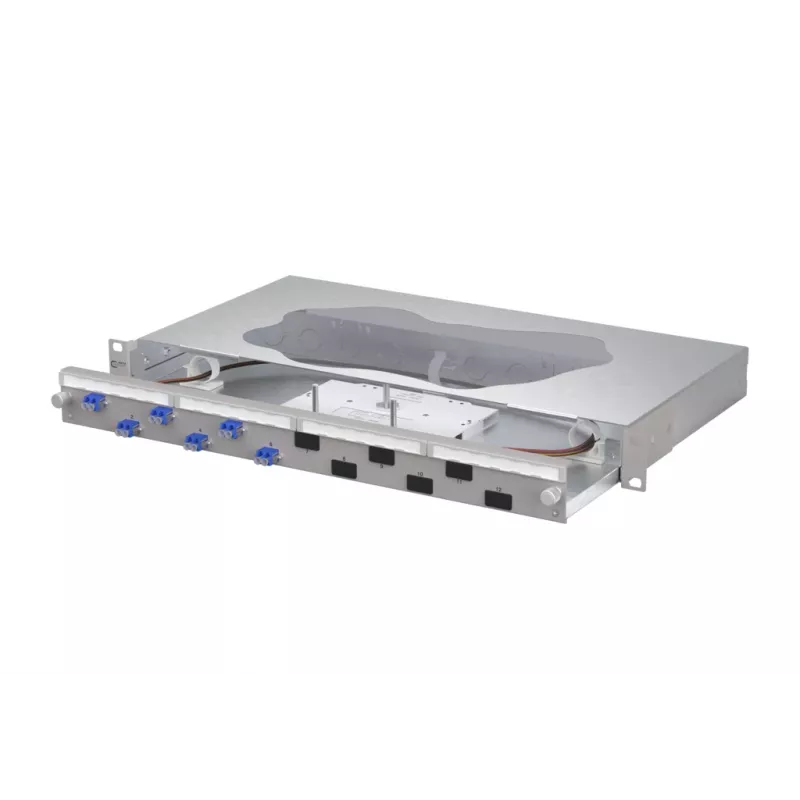

METZ CONNECT Πάνελ patch συγκόλλησης LWL 6xLC-D OS2 1U τοποθέτηση σε rack 1504697406-F

In a busy data center or server room, technicians need a reliable way to manage and protect fiber optic splices. The METZ CONNECT splice patch panel provides a 1U rack-mountable solution for terminating up to 12 fibers with LC duplex connectors. It is built for singlemode OS2 networks, ensuring stable connections in high-density environments.

Key specifications

• Type: Fiber optic splice patch panel
• Mounting: 19-inch rack, 1U
• Fiber type: Singlemode OS2
• Connectors: 6x LC duplex (12 fibers total)
• Splice type: Fusion splice
• Housing material: Steel
• Colour: Light grey (RAL 7035)
• Operating temperature: -10°C to +60°C

Why choose it

The steel housing offers durability, and the included splice tray simplifies fiber management. Ceramic adapter sleeves ensure precise alignment for low insertion loss. The panel is designed for rear cable entry with two M20/M25 cable glands, keeping installations tidy.

Ideal use cases

• Data centers requiring structured fiber termination
• Server rooms with limited rack space
• Telecommunications distribution points

Good to know

The panel is compliant with RoHS and REACH standards, ensuring environmental responsibility. It is intended for indoor use and comes with cable glands for secure cable entry.
