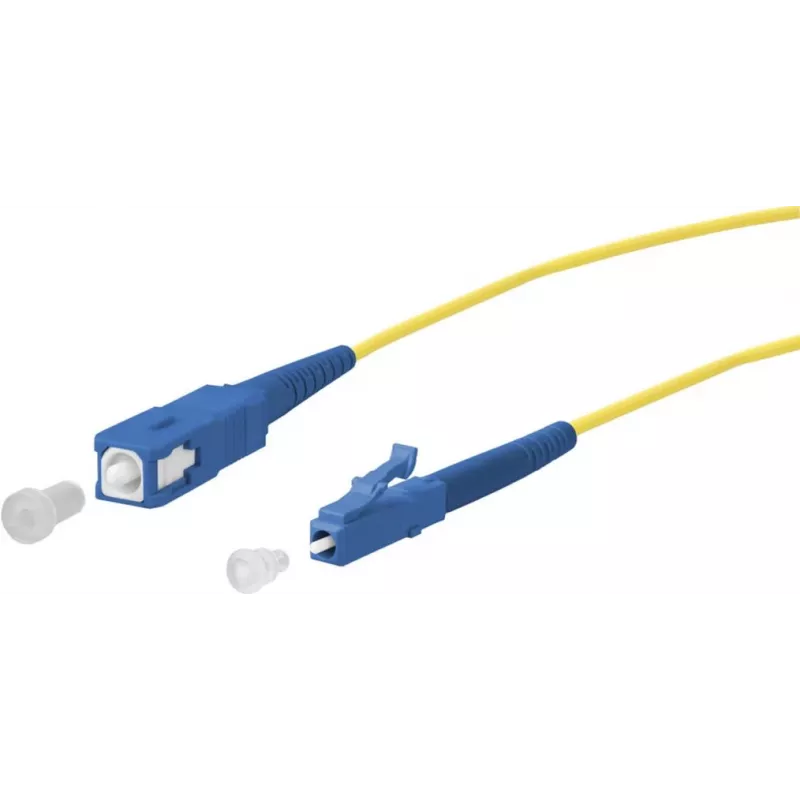

METZ CONNECT OpDAT Patchkabel SC-S/LC-S OS2 2,0 m

The METZ CONNECT OpDAT Patch Cable SC-S/LC-S OS2 2.0 m is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in structured cabling systems. With simplex construction and LSZH jacket, it ensures safety and performance in data centers, telecom rooms, and FTTH applications.

Advantages

Low insertion loss and high return loss ensure excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for indoor installations. Compact 3.0 mm diameter facilitates easy routing and space-saving cable management.

Suitable for

• Data center patching
• Telecommunications networks
• Fiber-to-the-home (FTTH) connections
• Local area networks (LAN)

Key specifications

• Connector Type End 1: SC-Simplex
• Connector Type End 2: LC-Simplex
• Fiber Type: OS2 (G.657.A1)
• Fiber Mode: Single-mode
• Cable Length: 2.0 m
• Cable Construction: Simplex
• Number of Fibers: 1
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Polishing Type: PC (Physical Contact)
• Insertion Loss (SC): typ. 0.25 dB, max. 0.4 dB
• Insertion Loss (LC): typ. 0.15 dB, max. 0.3 dB
• Return Loss (SC): min. 50 dB
• Return Loss (LC): min. 50 dB
• Ferrule Material: Zirconia ceramic
• Operating Temperature: -10 °C to 60 °C
• Storage Temperature: -20 °C to 70 °C
• Standards Compliance: IEC 61753-1, EN 50173-1, ISO/IEC 11801

Recommendations

For optimal performance, use with compatible single-mode transceivers and ensure proper cleaning of connectors before installation.
