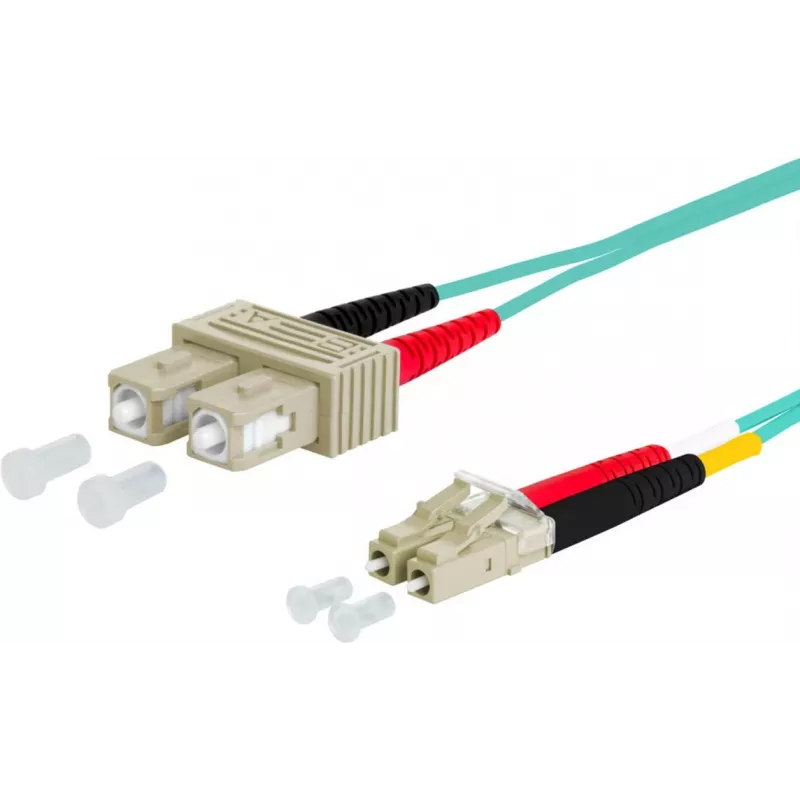

METZ CONNECT OpDAT Patchkabel SC Duplex σε LC Duplex OM3 5m Aqua

The METZ CONNECT OpDAT patch cable is a high-performance fiber optic cable designed for reliable data transmission in multimode networks. With SC duplex to LC duplex connectors and OM3 fiber type, it supports high-bandwidth applications up to 10 Gbps. The cable features a durable LSZH jacket in aqua color, ensuring safety and easy identification.

Advantages

Low insertion loss and high return loss ensure excellent signal integrity. The LSZH jacket reduces toxic fumes in case of fire, making it suitable for indoor installations. The 5-meter length provides flexibility in rack and cabinet setups.

Suitable for

• Data center cabling
• Telecommunications networks
• LAN and SAN connections
• Fiber-to-the-desk applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM3
• Connector A: SC Duplex
• Connector B: LC Duplex
• Cable Length: 5 meters
• Number of Fibers: 2
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Diameter: 2.8 mm
• Polarity: A-B (Crossed)
• Insertion Loss (max): 0.3 dB
• Return Loss (min): 30 dB
• Bandwidth (850nm): 1500 MHz*km
• Bandwidth (1300nm): 500 MHz*km
• Attenuation (850nm): 2.5 dB/km
• Attenuation (1300nm): 0.8 dB/km
• Operating Temperature: -10 to +60 °C
• Storage Temperature: -25 to +70 °C
• Standards Compliance: IEC 61753-1 Cat. U, IEC 60332-1-2, IEC 61034, IEC 60754-1/2

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure proper cable management to avoid bending beyond the minimum bend radius.
