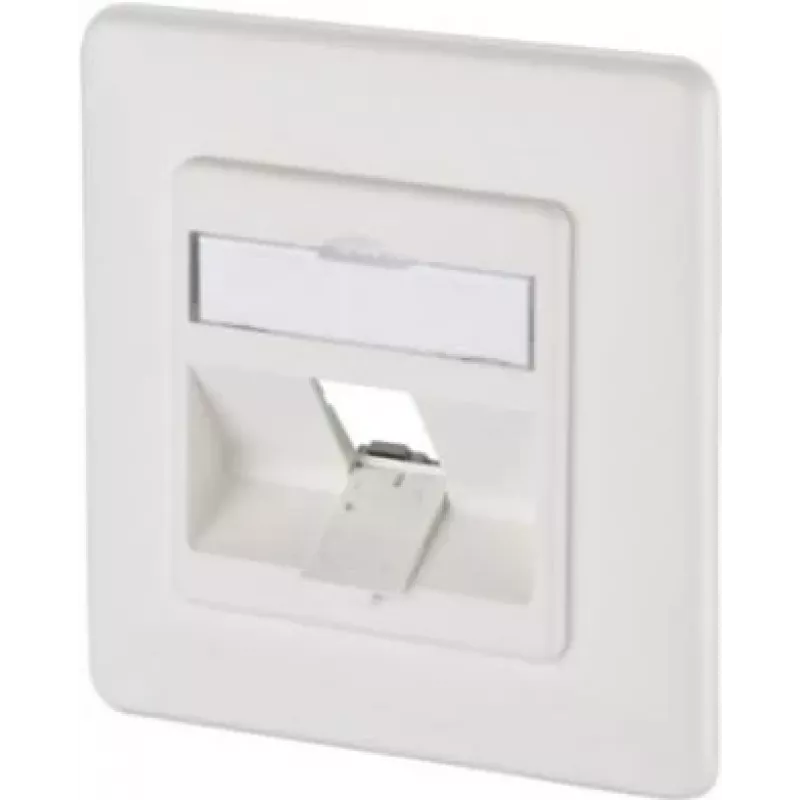

METZ CONNECT Keystone 1-Port Flush-Mount Wall Outlet Pure White (RAL 9010) 130B20D11002KE

The METZ CONNECT Keystone 1-Port Flush-Mount Wall Outlet (130B20D11002KE) is a high-quality data network outlet designed for professional installations. It features a single Keystone port in a flush-mount design, ideal for use with E-DAT modules. The outlet comes in pure white (RAL 9010) and is supplied without a central plate, allowing for seamless integration with various frame systems.

Advantages

This outlet offers reliable performance and easy installation. Its flush-mount design ensures a clean, low-profile appearance. The Keystone compatibility allows for flexible configuration with different module types. The halogen-free, flame-retardant material (UL94 V-0) enhances safety.

Suitable for

• Data network cabling in residential and commercial buildings
• Integration with Keystone (E-DAT) modules for RJ-45, USB, HDMI, and other connectors
• Use with standard German flush-mount boxes

Key specifications

• Product Type: Keystone Wall Outlet
• Number of Ports: 1
• Mounting Type: Flush-mount (UP)
• Module Compatibility: Keystone (E-DAT design)
• Color: Pure White (RAL 9010)
• Material: PC/ABS
• Protection Class: IP20
• Operating Temperature: -10°C to +50°C
• Fire Protection Class: UL94 V-0
• Halogen-free: Yes
• RoHS Compliant: Yes
• Cable Entry: Rear
• Included Components: Outlet housing, dust protection caps

Recommendations

For a complete installation, pair this outlet with a compatible frame and Keystone module. Ensure proper cable termination for optimal performance.
