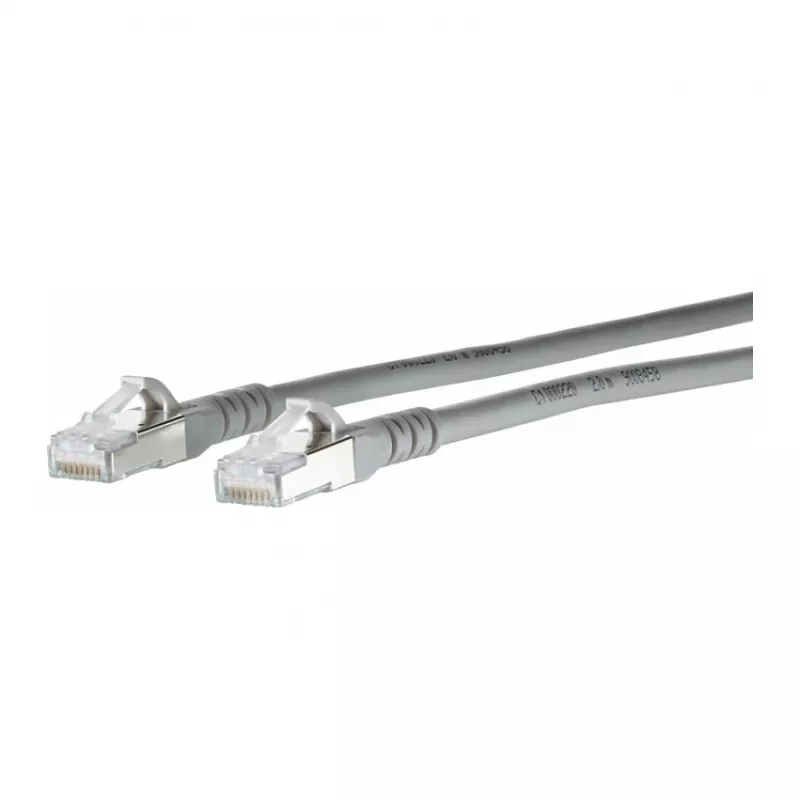

METZ CONNECT Cat.6A S/FTP Καλώδιο Patch AWG26 LSZH Γκρι 0,5m

The METZ CONNECT Patch Cable Cat.6A AWG26 in grey is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With S/FTP shielding and LSZH jacket, it ensures minimal interference and safety in professional environments.

Advantages

This patch cable offers superior signal integrity and reduced crosstalk thanks to its S/FTP (PiMF) shielding. The AWG26 stranded copper conductors provide flexibility while maintaining excellent conductivity. The snagless molded boot protects the RJ45 connectors during installation and removal.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks where 10GBASE-T performance is needed
• PoE applications including PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Installations where low smoke zero halogen materials are required for safety

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Conductor: AWG26/7 stranded copper
• Jacket Material: LSZH
• Length: 0.5 m
• Colour: Grey
• Connectors: RJ45 (8P8C) with gold-plated contacts (50µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data Rate: 10 Gigabit Ethernet (10GBASE-T)
• Outer Diameter: Approx. 6.2 mm
• Flammability Rating: IEC 60332-1-2
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
