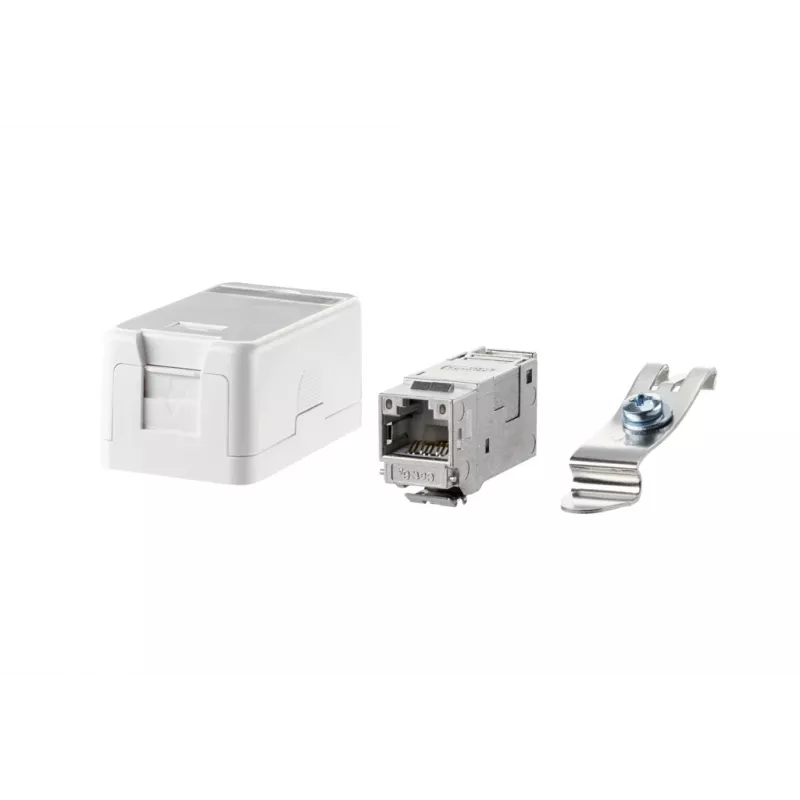

METZ BTR 130910D1APLKE Επίτοιχη Πρίζα σύνδεσης Keystone, 1-Port, Λευκό

When setting up a structured cabling system in an office or residential environment, you need a reliable surface-mount housing for a single keystone module. The METZ BTR 130910D1APLKE connection box provides exactly that, offering a clean and professional termination point for data outlets on walls, furniture, or cable ducts. Its flat, pure white design blends seamlessly into any interior while protecting the module from dust and accidental contact.

Key specifications

• Product type: Data connection box (surface mount)
• Number of module slots: 1 (keystone format)
• Compatible modules: BTR E-DAT modul keystone (Cat.5e, Cat.6, Cat.6A)
• Housing material: ABS plastic
• Colour: Pure white (RAL 9010)
• Cable entry: 8-way (top, bottom, rear, sides)
• Shielding: Unshielded housing (module-dependent)
• Mounting: Screw mounting
• Protection rating: IP20
• Environmental compliance: RoHS

Why choose it

This connection box is engineered for flexibility and ease of installation. The multiple cable entry points allow for neat cable routing regardless of the installation environment, while the screw mounting ensures a secure fit. The ABS housing is both durable and lightweight, and the pure white finish matches standard wall plates and trunking. By using a keystone-compatible design, it supports a wide range of data modules, making it a future-proof choice for evolving network requirements.

Ideal use cases

• Surface-mounted network outlets in offices and meeting rooms
• Retrofit installations where in-wall cabling is not possible
• Structured cabling in industrial or commercial buildings
• Home networking for wall-mounted access points or IP cameras
• Termination points in cable ducts or under-desk installations

Good to know

The box is supplied without a keystone module, allowing you to select the appropriate BTR E-DAT module for your cable category (Cat.5e, Cat.6, or Cat.6A). Its IP20 rating indicates suitability for indoor use only. The flat design minimizes protrusion from the wall, making it ideal for areas with limited space. All materials are RoHS compliant, ensuring environmental safety.
