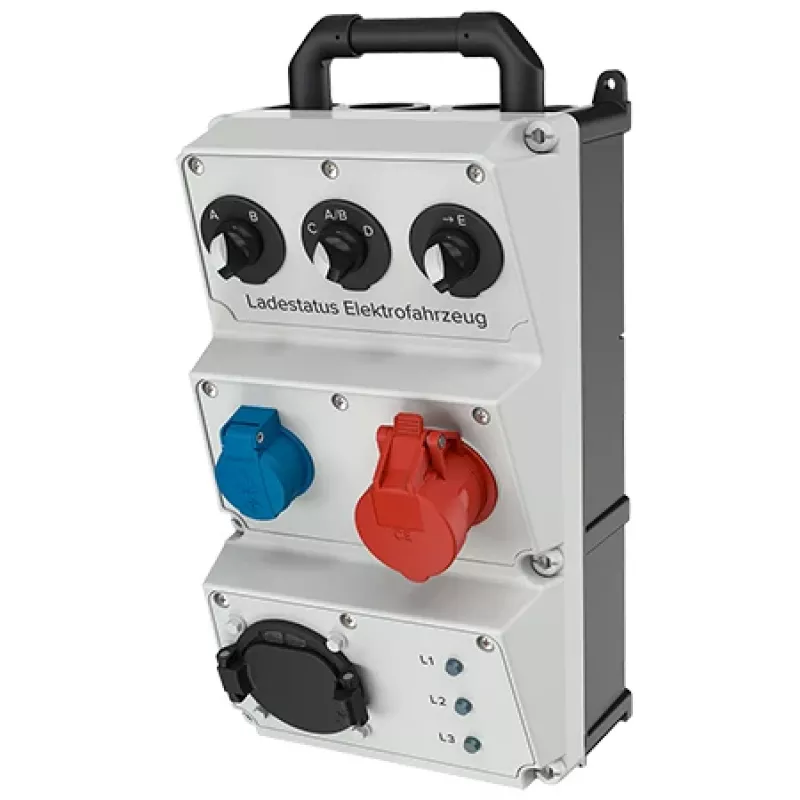

MENNEKES E-Mobility κουτί δοκιμής για σταθμούς φόρτισης 320011

For electricians and service technicians who commission and maintain AC charging stations, the MENNEKES E-Mobility Test Box 320011 provides a reliable way to verify the functionality and safety of Mode 3 charging points. Connect the Type 2 plug to the charging station and simulate vehicle states, cable codings, and error conditions to ensure correct operation before connecting an actual electric vehicle.

Key specifications

• Product type: E-Mobility Test Device
• Supported charging mode: Mode 3 (AC)
• Connector type (input): Type 2 plug (IEC 62196-2)
• Vehicle state simulation: State A, B, C, D
• Cable coding simulation: 13A, 20A, 32A, 63A
• Error state simulation: PE error, CP error
• Integrated measurement: Phase and voltage display
• Safety test functions: RCD test, PE test
• External measurement ports: Safety sockets (4mm) for L1, L2, L3, N, PE, CP
• Max. operating voltage: 400 V AC
• Max. operating current: 63 A
• Protection class: IP44 (when connected)
• Operating temperature: -25°C to +40°C
• Housing material: Robust plastic
• Standards compliance: IEC 61851-1, IEC 62196-2
• Display type: LED indicators, digital display for voltage/phase
• Power supply: Passive (powered by charging station)

Why choose it

The test box enables thorough testing of charging stations without the need for an electric vehicle. It simulates various vehicle states and cable codings, allowing you to verify that the charging station responds correctly to different conditions. The integrated RCD and PE tests help ensure electrical safety, while the external measurement ports provide access for detailed diagnostics.

Ideal use cases

• Commissioning new AC charging stations
• Periodic inspection and maintenance of charging infrastructure
• Troubleshooting charging faults
• Verifying safety functions such as RCD and PE

Good to know

The device is passive and draws power from the charging station, so no separate power supply is needed. The robust plastic housing and IP44 protection (when connected) make it suitable for use in various environments.
