DeLOCK M8 βύσμα θηλυκό A-coded 3 ακίδων σύνδεση βιδώματος

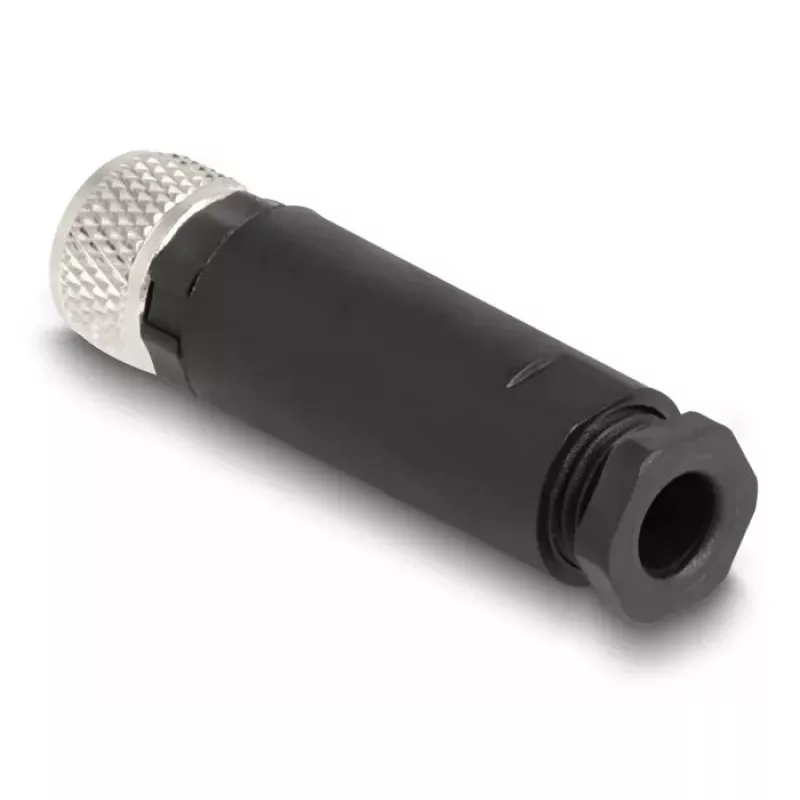

The DeLOCK M8 Connector A-coded 3 pin female screw connection is a metal M8 connector designed to provide a secure screw-terminal interface for cable installation. With a compact construction (42 mm width, 12.1 mm depth) and a 3-pin female contact layout, it is suitable for reliable signal or low-power connections in industrial environments such as machine control and automation.

Advantages

The metal housing offers mechanical robustness and electromagnetic shielding. The screw terminal connection enables straightforward, tool-assisted installation of stripped cable conductors without the need for crimped contacts. A-coded M8 pin assignment and a 3-pin female layout ensure compatibility with standard M8 A-coded plugs and devices.

Suitable for

• Machine control signal connections
• Automation sensors and actuators
• Industrial equipment requiring M8 A-coded interfaces
• Field wiring where screw-terminal termination is preferred

Key specifications

• Brand: DELOCK
• Model / MPN: 60531
• EAN: 4043619605316
• Connector type: M8, A-coded, 3 pin female
• Termination: screw terminal
• Housing material: metal
• Dimensions: 42 mm (width) x 12.1 mm (depth)

How to use

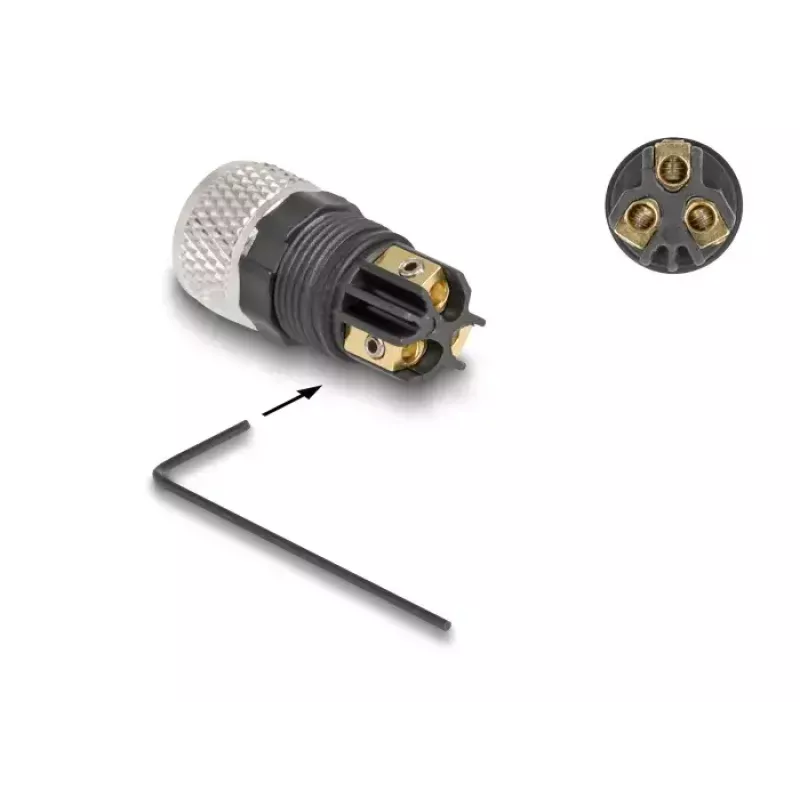

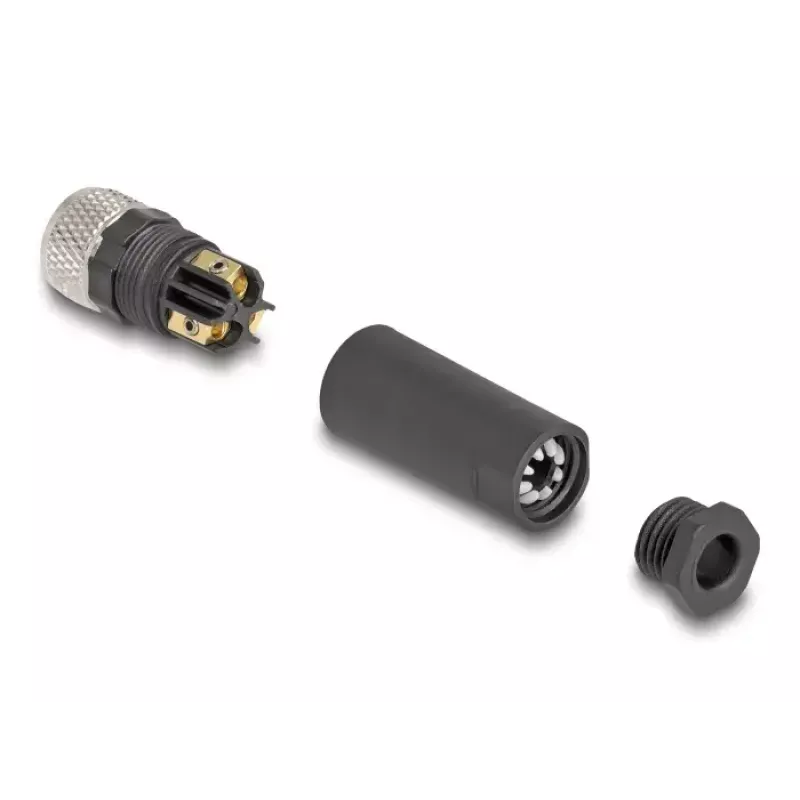

Prepare the cable by stripping the insulation of each conductor to the length recommended for the screw terminals. Open the connector housing if required, insert the stripped conductors into the corresponding screw terminals according to the pin assignment, and tighten the screws to secure the conductors. Reassemble any housing parts and connect the M8 female connector to the mating A-coded M8 plug on the device or cable.

Recommendations

Verify the pin assignment and ensure correct tightening torque for the screw terminals to maintain a reliable electrical and mechanical connection. Use appropriate cable cross-section compatible with the terminal clamps and observe applicable industrial wiring standards.
