MDT BE-GT04S.01 Γυάλινος διακόπτης Push Button Plus 4-πλός μαύρος

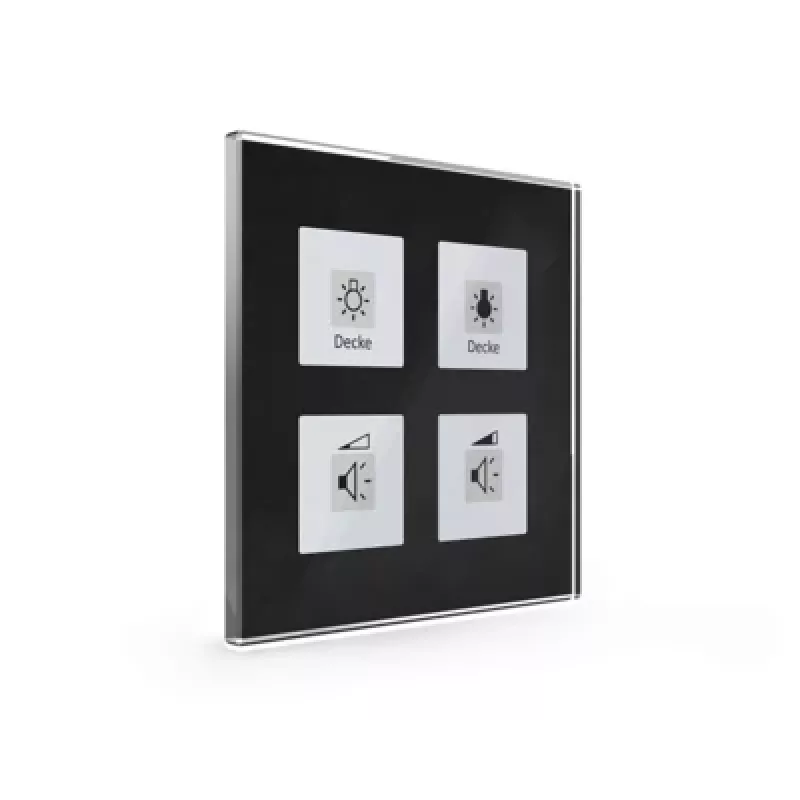

Managing multiple lighting scenes, blinds, and temperature settings from a single wall station can clutter your space with separate controls. The MDT BE-GT04S.01 Glass Push Button Plus 4-fold solves this by combining four configurable buttons with integrated temperature and humidity sensing in one sleek, black glass panel. It connects directly to your KNX bus, giving you a clean, modern interface for smart building control without extra gateways.

Who is it for

This device is for KNX installers and homeowners who want a premium, multi-function wall control. It suits residential and commercial projects where aesthetics matter and where temperature/humidity data is needed for climate automation. If you already use ETS5 or higher, you can program each button for switching, dimming, blinds, scenes, or value transmission.

Main features

• 4 buttons on a real glass surface, black finish
• Integrated temperature and humidity sensors for room climate monitoring
• 4 pairs of RGB status LEDs with adjustable brightness for symbols and backlight
• Each button supports short/long press, switching, dimming, blinds, value transmitter, scene recall, and sequence control
• Built-in logic functions (4 logic blocks) and up to 8 scenes
• Internal buzzer for acoustic feedback, deactivatable
• Powered directly from the KNX bus, no external supply needed
• Flush-mounted in a standard flush-mounted box

Specifications

• Product type: KNX Glass Push Button
• Number of buttons: 4
• Colour: Black
• Material: Glass surface
• System compatibility: KNX Bus System
• Integrated sensors: Temperature, Humidity
• Status indication: 4 pairs of RGB Status LEDs
• Backlight: Adjustable brightness for symbols and LEDs
• Functions per button: Switching, Dimming, Blinds, Value Transmitter, Scene Recall, Sequence Control
• Logic functions: Yes (4 logic blocks)
• Scene control: Yes (up to 8 scenes)
• Power supply: KNX Bus
• Mounting type: Flush-mounted
• Protection class: IP20
• Operating temperature: -5°C to +45°C
• Programming software: ETS5 or higher
• Acoustic feedback: Internal buzzer (deactivatable)
• Short/long press function: Yes

Tips

Use the integrated temperature sensor to trigger heating or cooling scenes automatically. Adjust LED brightness in ETS to match ambient light and avoid glare at night. For multi-room projects, keep button labelling consistent by using the same symbol set across all MDT glass push buttons.
