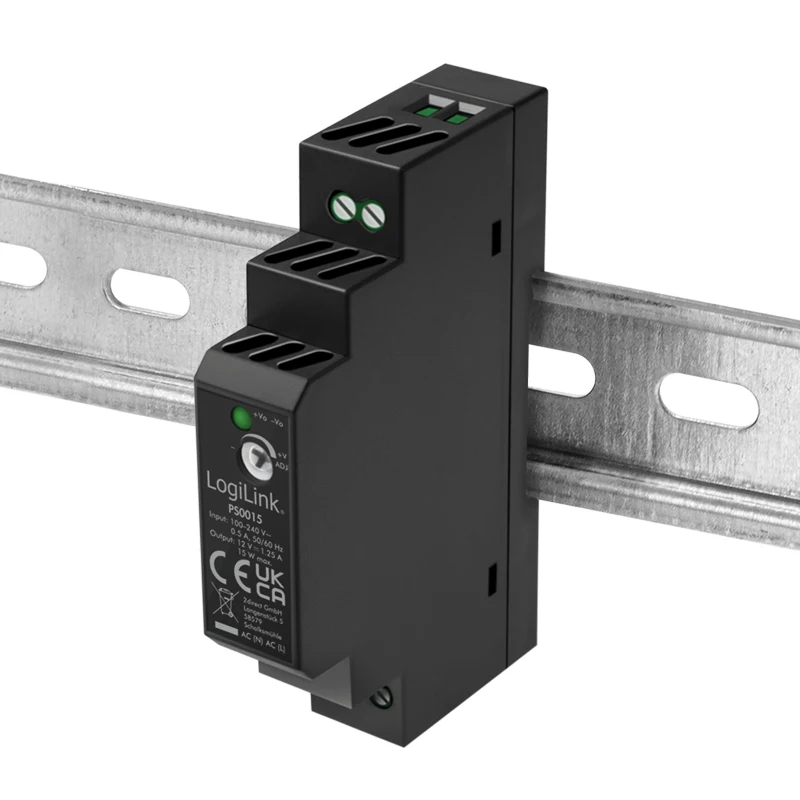

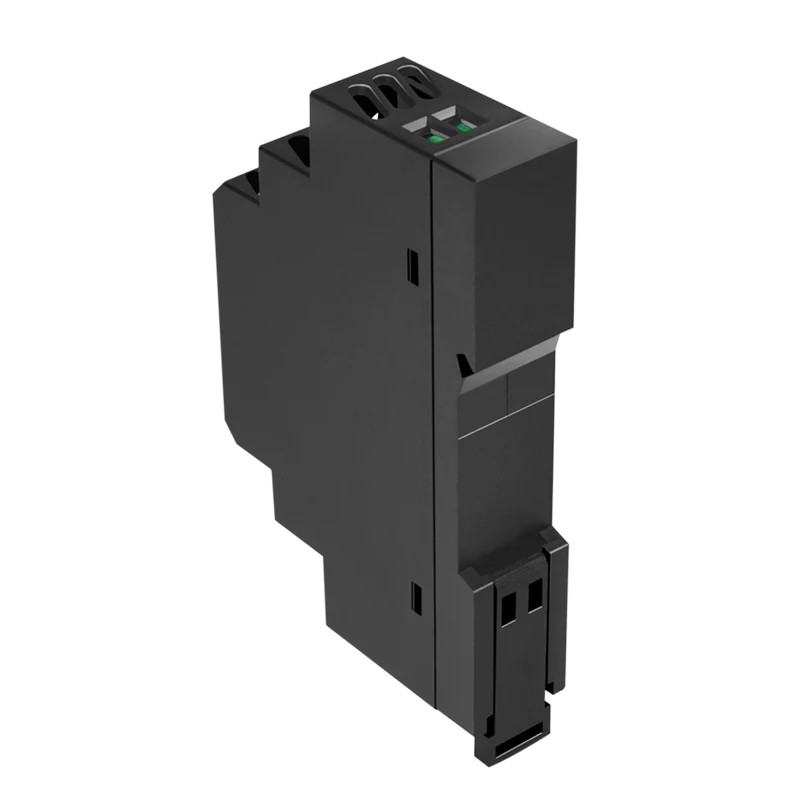

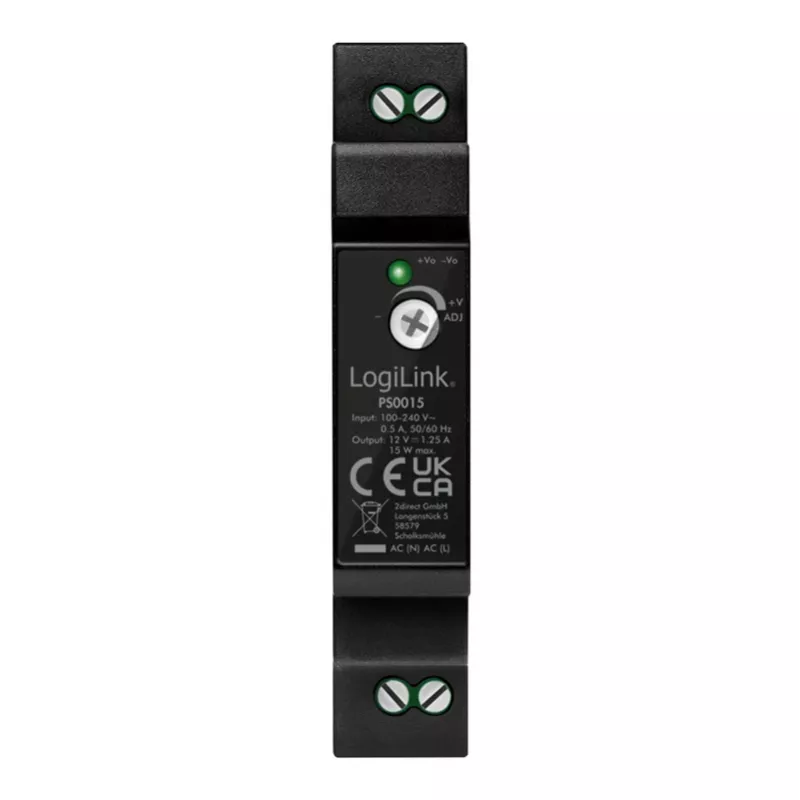

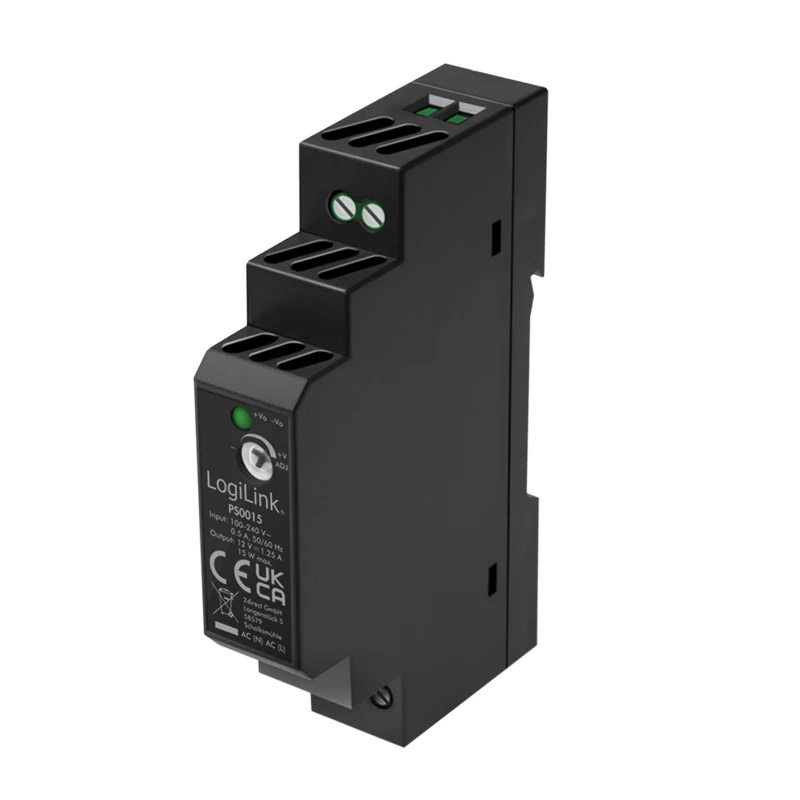

LOGILINK Τροφοδοτικό ράγας DIN 15 W / 12 V

In control cabinets where every millimetre counts, the LOGILINK PS0015 power supply delivers clean 12 V DC for sensors, controllers and small actuators. Its ultra-slim housing fits seamlessly alongside other DIN rail modules, while the wide input range accepts 85–264 V AC or 120–370 V DC, making it suitable for installations worldwide.

Key specifications

• Output power: 15 W
• Output voltage: 12 V DC (adjustable 10.8–13.8 V)
• Output current: 1.25 A
• Input voltage: 85–264 V AC / 120–370 V DC
• Input frequency: 47–63 Hz
• Efficiency: 85%
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Protection: short circuit, overload, over voltage
• Operating temperature: -30 °C to +70 °C
• Ripple & noise: 120 mVp-p
• Isolation voltage: 3 kV AC (input-output)
• Safety standards: UL 61010-1, UL 61010-2-201, TUV EN61010-1, EN61010-2-201
• EMC: EN55032, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
• MTBF: >700,000 hours

Why choose it

This power supply combines high reliability with a compact footprint. Its wide input range accepts both AC and DC sources, while the adjustable output lets you fine-tune voltage for specific loads. Built-in protections and compliance with international safety standards ensure safe operation in demanding environments.

Ideal use cases

• Industrial automation and control cabinets
• Building management systems
• Security and access control panels
• LED lighting and small motor drives
• Test and measurement equipment

Good to know

The unit features a no-load power consumption of less than 0.5 W, contributing to energy efficiency in standby modes. Its wide operating temperature range from -30 °C to +70 °C allows deployment in harsh environments, from cold storage facilities to hot machinery rooms.
