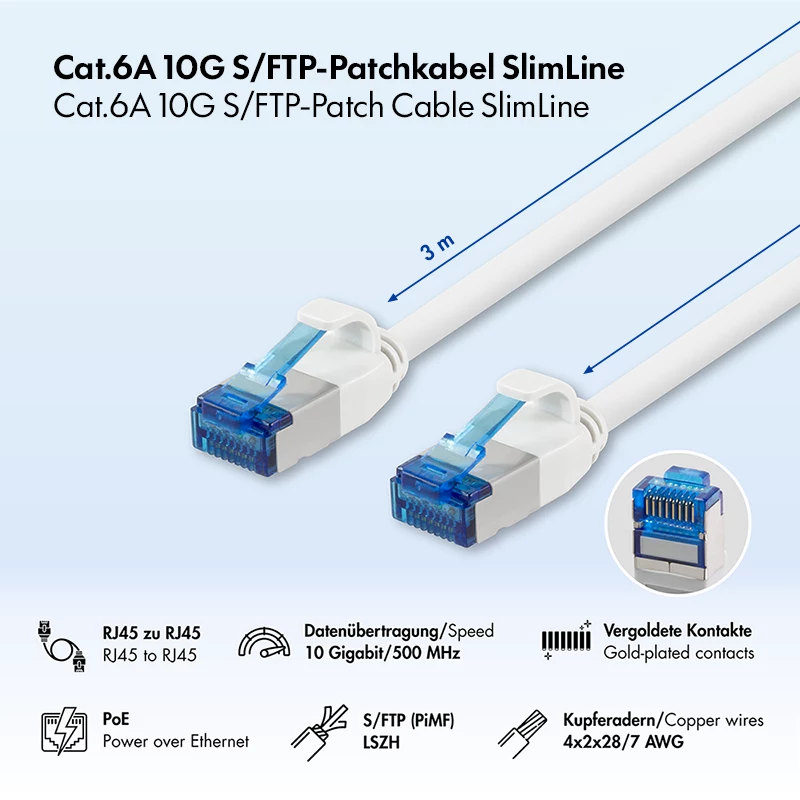

LogiLink SlimLine καλώδιο patch Cat.6A S/FTP LSZH, λευκό, 3 m

Network congestion and bulky cabling can turn a tidy server room into a tangled mess, but this slim, high-performance patch cable solves both problems at once. The LogiLink SlimLine Cat.6A patch cable delivers 10 Gigabit Ethernet speeds up to 500 MHz while its ultra-thin 3.8 mm diameter keeps cable runs neat and manageable. The white LSZH jacket blends into modern interiors and releases minimal smoke and toxic fumes in case of fire, making it ideal for offices, data centers, and public buildings.

Who is it for

This cable is built for IT professionals, network administrators, and home users who demand high-speed, reliable connections without the clutter of standard Ethernet cables. It is perfect for connecting servers, switches, routers, patch panels, and workstations in high-density environments where airflow and cable management matter.

Main features

• Cat.6A performance: supports 10GBASE-T up to 500 MHz for future-proof networking.

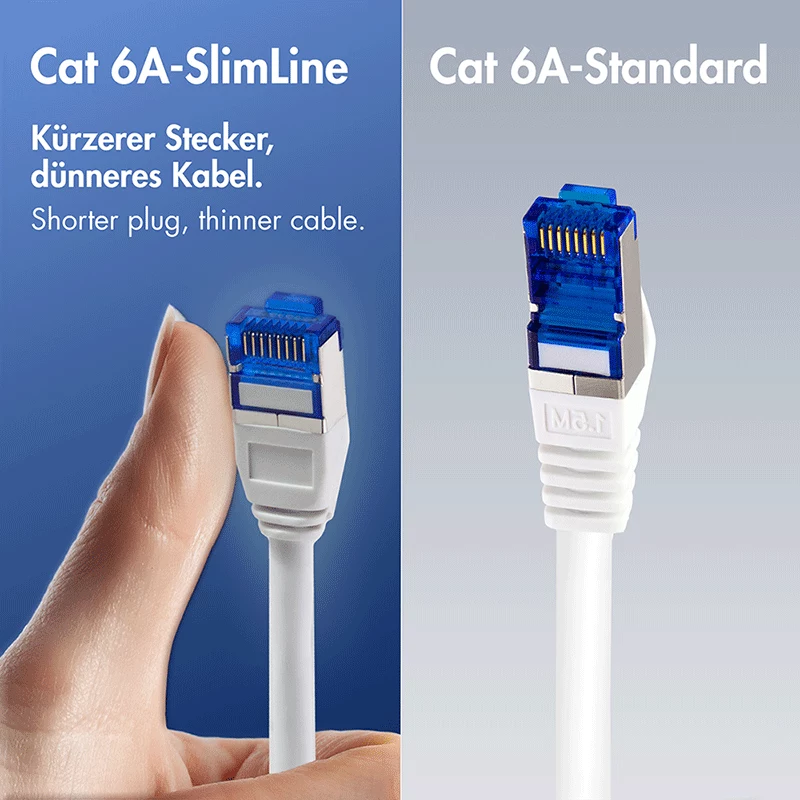

• SlimLine design: 3.8 mm outer diameter reduces cable bulk and improves airflow in racks.
• S/FTP shielding: each pair is foil-shielded and the overall cable has a braided screen, providing excellent protection against EMI and crosstalk.
• LSZH jacket: low smoke zero halogen material enhances safety in enclosed spaces.
• Gold-plated RJ45 connectors: 50 µm gold plating ensures reliable, corrosion-resistant contacts.
• PoE support: delivers power up to PoE++ (IEEE 802.3bt) for devices like IP cameras and access points.
• Stranded copper conductors: AWG 30/7 offers flexibility for easy routing in tight spaces.

Specifications

• Cable type: Cat.6A S/FTP patch cable
• Length: 3 m
• Colour: White
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 30/7 (stranded)
• Outer diameter: approx. 3.8 mm
• Connector plating: Gold-plated (50 µm)
• Wiring standard: TIA/EIA 568B
• PoE support: PoE, PoE+, PoE++
• Halogen-free: Yes
• Flame retardant: Yes
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568B

Tips

To maximize performance, avoid sharp bends and do not exceed the minimum bend radius of four times the cable diameter. When using PoE++, ensure your power sourcing equipment supports the required wattage. For high-density installations, consider using cable management panels to keep the slim cables organized and prevent accidental disconnections.
