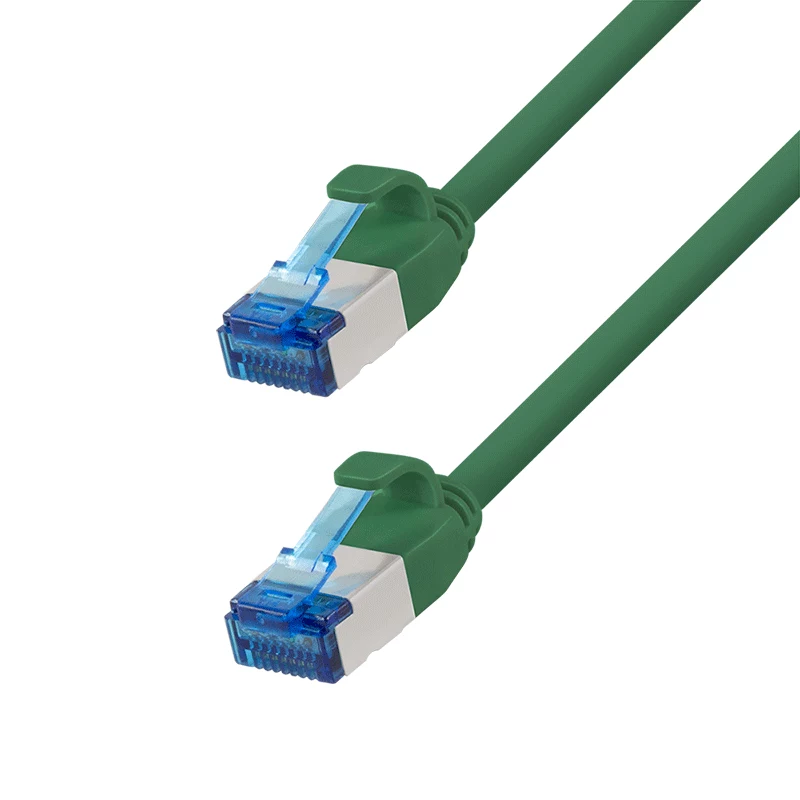

LogiLink Καλώδιο patch Cat.6A S/FTP Slim, LSZH, Πράσινο, 5 m

High-performance Cat.6A patch cable with slim design and S/FTP shielding, delivering up to 10 Gigabit Ethernet speeds over 5 meters. The green LSZH jacket ensures safety in dense installations, while the reduced diameter improves airflow and cable management.

Advantages

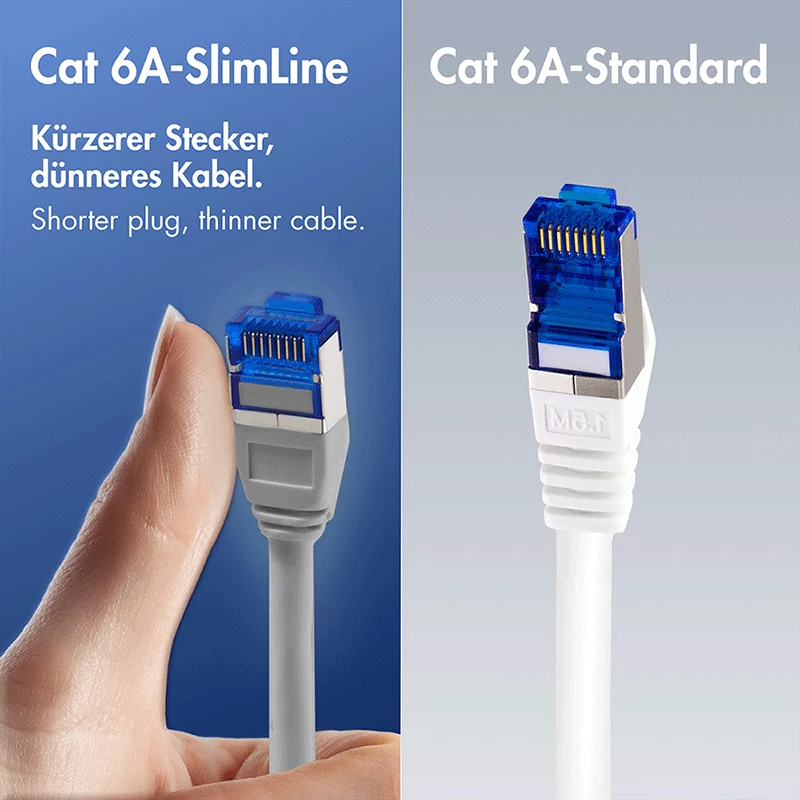

This cable features a slim 3.8 mm outer diameter, making it ideal for high-density patching where space is limited. The S/FTP construction—each pair individually foil-shielded plus an overall braid—provides superior protection against alien crosstalk and EMI, ensuring reliable 10GBASE-T performance. Gold-plated contacts (50µm) resist corrosion and maintain signal integrity over repeated insertions. The LSZH jacket emits low smoke and zero halogen when exposed to fire, enhancing safety in offices, data centers, and public buildings.

Suitable for

• 10 Gigabit Ethernet networks (10GBASE-T)
• Data centers and server rooms with high-density cabling
• Office LAN connections for workstations and VoIP phones
• PoE applications up to PoE++ (IEEE 802.3bt)
• Environments requiring halogen-free cabling

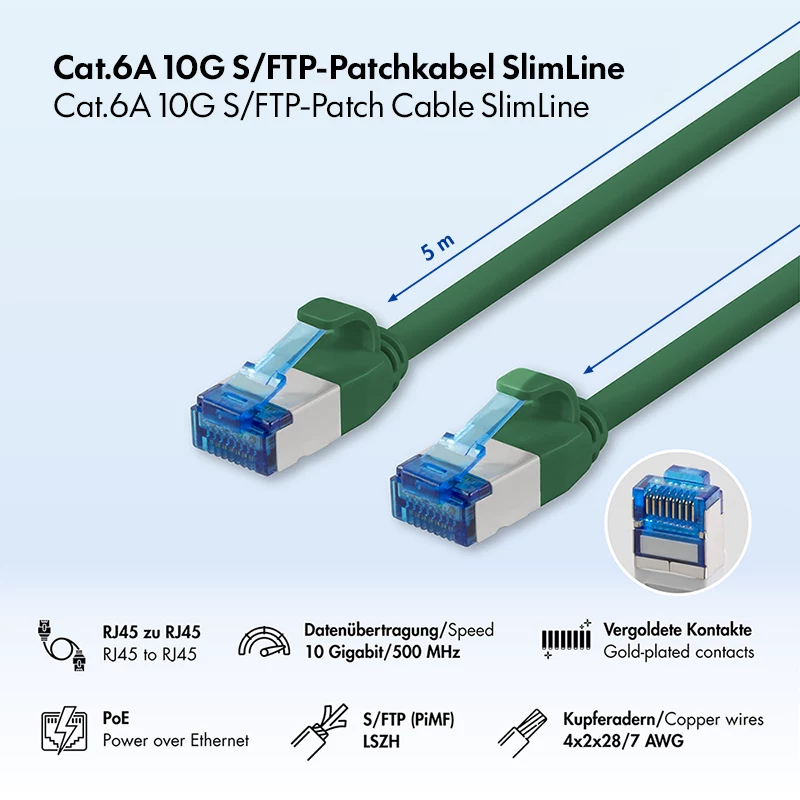

Key specifications

• Category: Cat.6A (Class EA), backward compatible with Cat.6/5e/5
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braid
• Length: 5.0 m
• Colour: Green
• Conductor: Copper, AWG 28/7 stranded
• Bandwidth: Up to 500 MHz
• Data rate: Up to 10 Gbps
• Connectors: RJ45 (8P8C), gold-plated 50µm
• Wiring: TIA/EIA 568B
• Jacket: LSZH (Low Smoke Zero Halogen), flame retardant
• Outer diameter: approx. 3.8 mm (slim)

Recommendations

For best performance, use this cable in high-density 10G networks where space and safety are critical. Pair with compatible Cat.6A patch panels and keystone jacks to maintain full shielding integrity. Ideal for data centers, server rooms, and modern office environments requiring halogen-free cabling.
