LogiLink Cat.6A Slim S/FTP LSZH καλώδιο patch, γκρι, 5m, SlimLine

Engineered for 10 Gigabit Ethernet, this LogiLink Cat.6A Slim patch cable delivers up to 500 MHz bandwidth in a remarkably slim profile. The S/FTP shielding with PIMF (pairs in metal foil) and an overall braided screen ensures superior protection against alien crosstalk and EMI, making it ideal for high-density data center and office environments. The LSZH jacket guarantees low smoke and zero halogen emissions for enhanced safety.

Overview

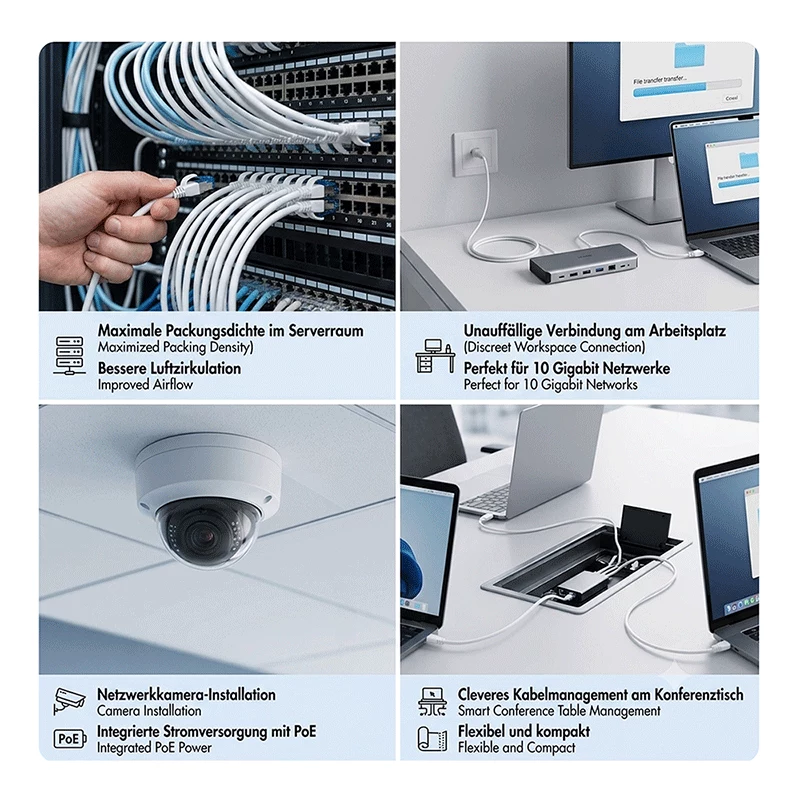

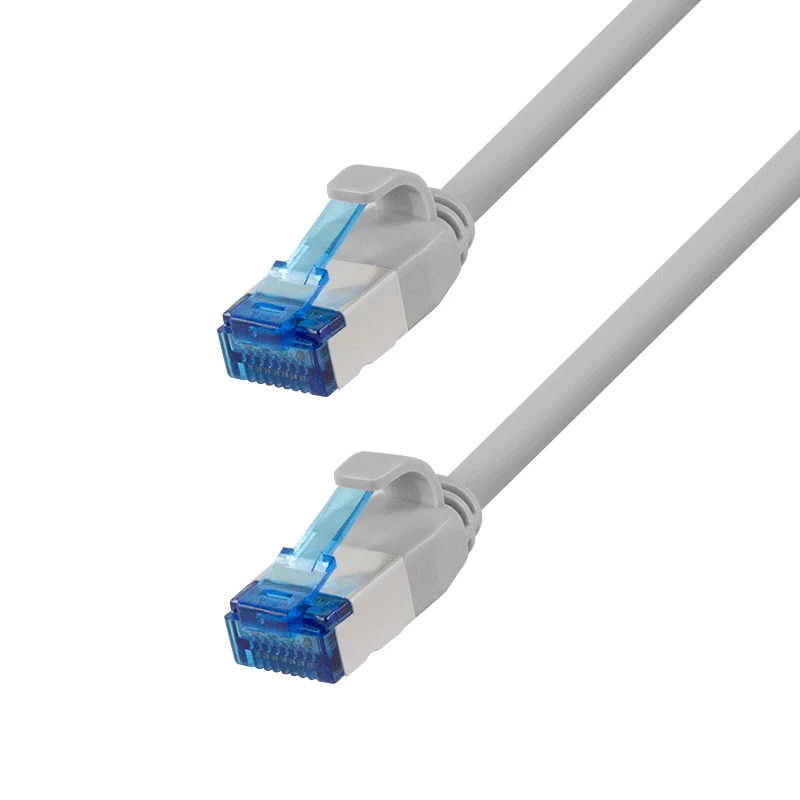

The LogiLink CP5072S is a premium Cat.6A patch cable designed for reliable 10GBASE-T performance. It features 28 AWG stranded copper conductors for flexibility and durability, gold-plated RJ45 connectors for corrosion resistance, and a snagless molded boot to protect the locking tab. The slim cable design (approximately 3.8 mm outer diameter) saves space in cable management and improves airflow in racks. The grey LSZH jacket meets IEC 60332-1 flame retardancy, IEC 60754-2 halogen-free, and IEC 61034 low smoke standards, making it suitable for public buildings and enclosed spaces.

What stands out

• Supports 10 Gigabit Ethernet up to 500 MHz
• S/FTP shielding: individually foil-screened pairs plus overall braid
• SlimLine design with 28 AWG stranded copper for easy routing
• Gold-plated (50µ) RJ45 connectors with snagless molded boots
• LSZH jacket: low smoke, zero halogen, flame retardant
• Length: 5 meters, colour: grey

Technical details

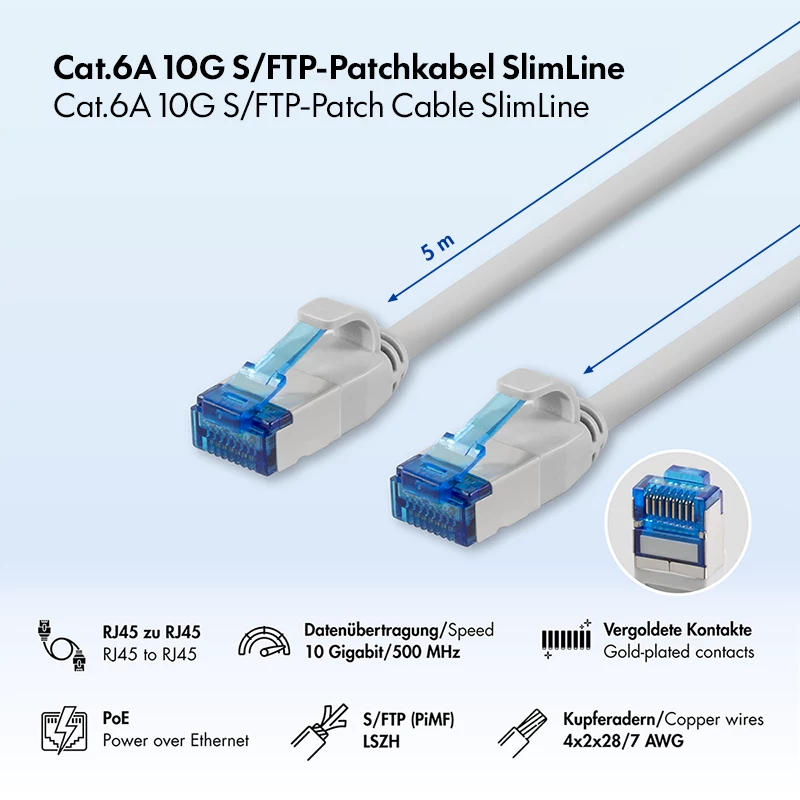

• Cable type: Cat.6A S/FTP (PIMF) patch cable
• Shielding: S/FTP (screened/foiled twisted pair)
• Conductor: bare copper, AWG 28/7 stranded
• Connector: RJ45 male to RJ45 male, 50µ gold-plated contacts
• Wiring: TIA/EIA 568B
• Bandwidth: up to 500 MHz
• Data rate: 10GBASE-T (10 Gbps)
• Jacket: LSZH (low smoke zero halogen)
• Flame retardancy: IEC 60332-1
• Halogen-free: IEC 60754-2
• Low smoke: IEC 61034
• Operating temperature: -20°C to 60°C

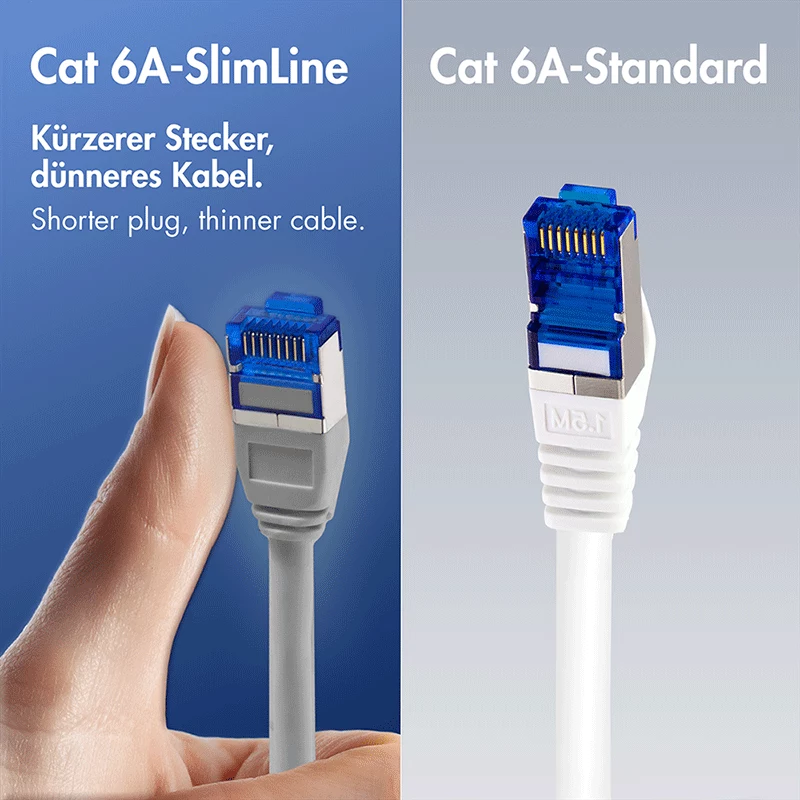

• Cable diameter: approx. 3.8 mm (slim)
• Boot: molded, snagless

Our verdict

The LogiLink CP5072S combines high-speed Cat.6A performance with a space-saving slim design and safety-focused LSZH materials. It's an excellent choice for professional network installations where performance, safety, and cable management are critical.
