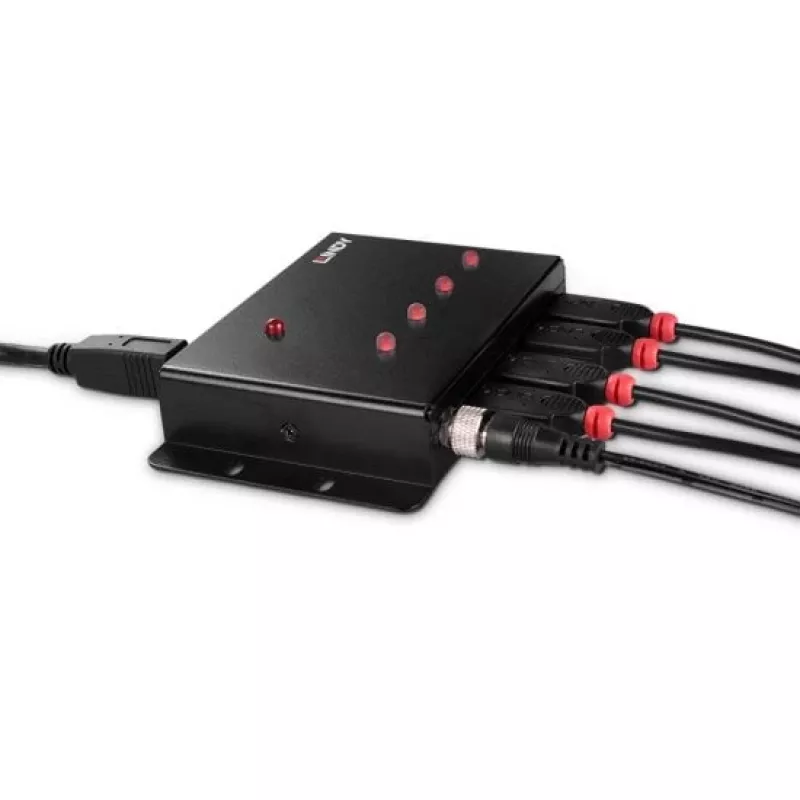

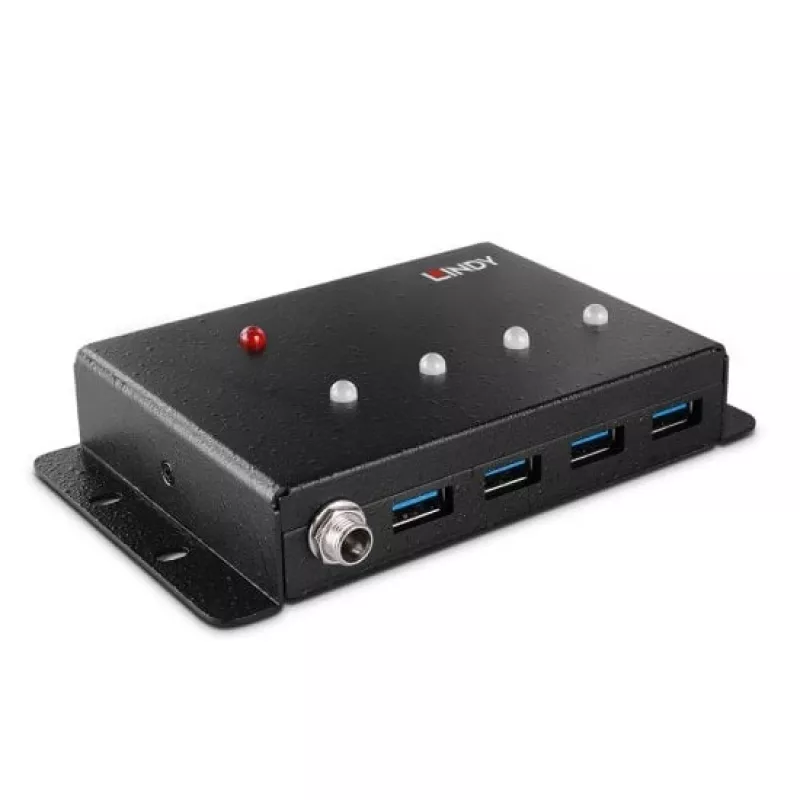

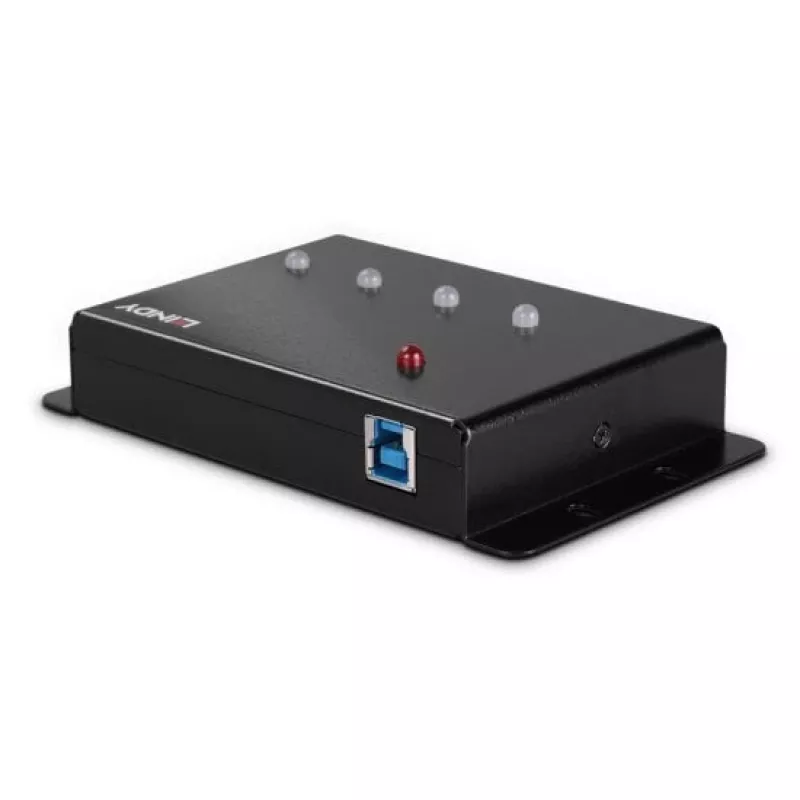

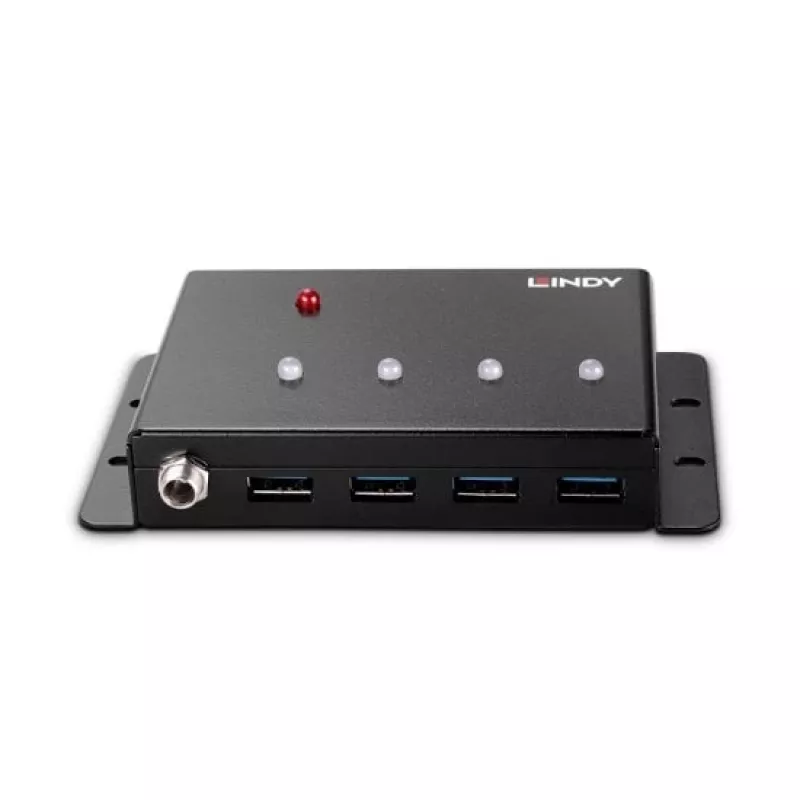

Lindy hub USB 3.0 4 θυρών μεταλλικό

The Lindy 4 Port USB 3.0 Metal Hub is an industrial-grade USB hub designed for reliable performance in demanding environments. It features a rugged all-metal chassis with integrated mounting brackets and excellent EMC protection. The hub provides four USB 3.2 Gen 1 Type-A ports and a USB 3.2 Gen 1 Type-B host interface, supporting data transfer rates up to 5 Gbps and powered via DC for stable operation.

Advantages

The metal housing ensures durability and improved electromagnetic compatibility. Backwards compatibility with USB 2.0 and 1.1 allows simultaneous connection of older peripherals, and MTT support optimises throughput for legacy USB 1.1 devices. Each port includes individual short-circuit protection and the supplied external power adapter provides a reliable and uninterrupted power source.

Suitable for

• Industrial workstations and manufacturing equipment
• Embedded systems and control cabinets requiring secure mounting
• Offices and shared workspaces connecting multiple USB devices
• Environments where electromagnetic protection and robust construction are required

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: 4 × USB 3.2 Gen 1 Type-A
• Maximum data rate: up to 5 Gbps (USB 3.2 Gen 1 / USB 3.0)
• Dimensions: 125 mm × 74.6 mm × 22 mm
• Weight: 0.256 kg
• Product colour: Black

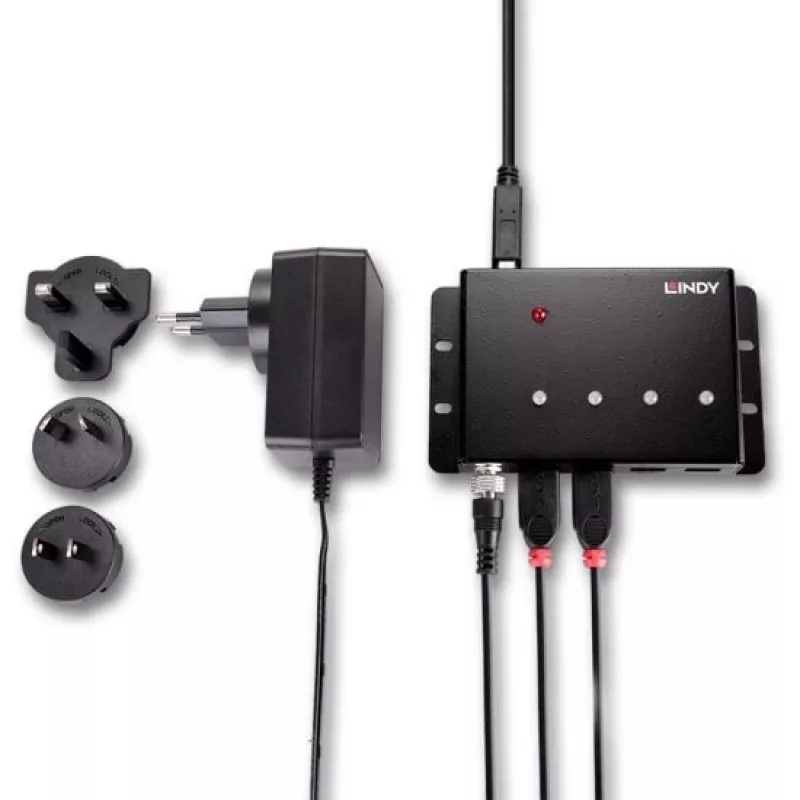

• Power: DC powered (external power supply included)

How to use

Mount the hub using the integrated brackets or place it on a stable surface. Connect the host device to the hub using a compatible USB Type-B to Type-A or Type-C cable depending on the host port, then connect USB peripherals to the Type-A ports. Attach the supplied DC power adapter to ensure stable operation, especially when multiple devices draw power from the hub. Windows, macOS and Linux systems that support USB 3.x will recognise the hub automatically; legacy USB 2.0/1.1 devices are supported at their respective speeds.

Recommendations

Use quality shielded USB cables for best signal integrity in electrically noisy environments and ensure the external power adapter is connected when powering multiple high-consumption devices. For wall- or panel-mount installations, verify secure fastening of the integrated brackets and allow adequate ventilation around the metal chassis.
