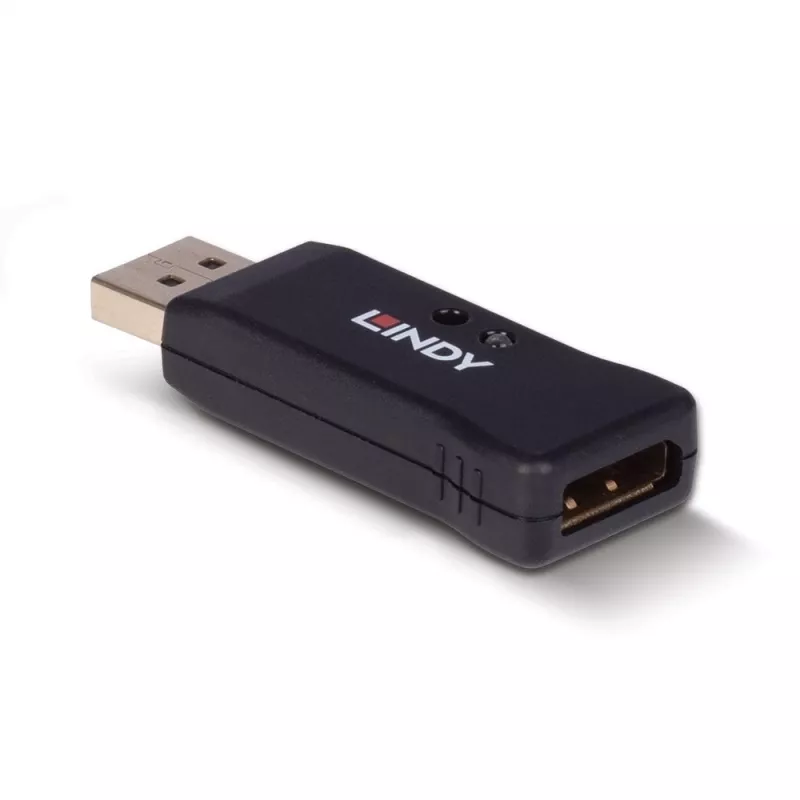

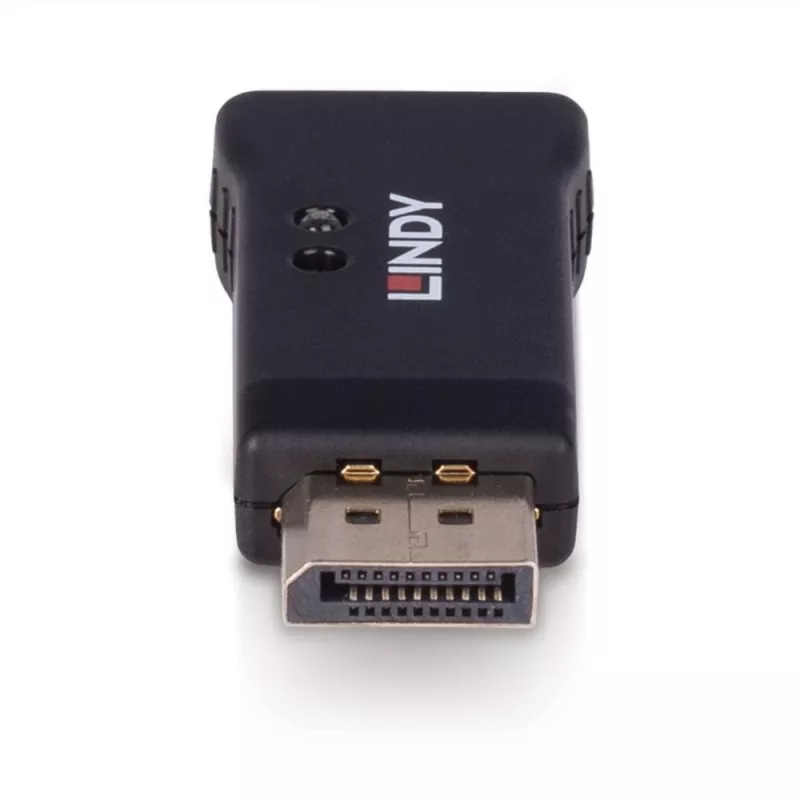

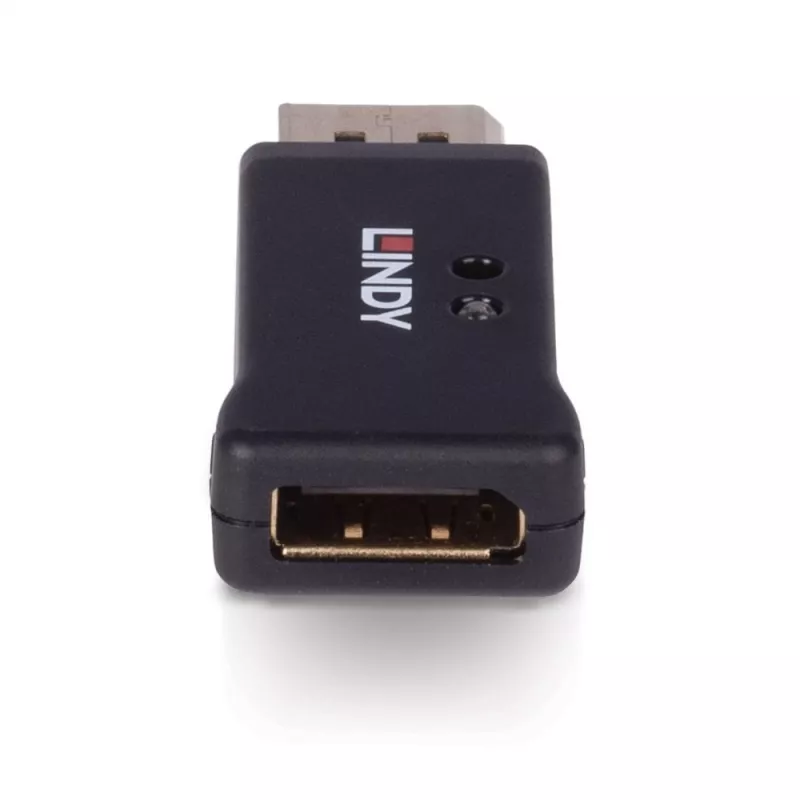

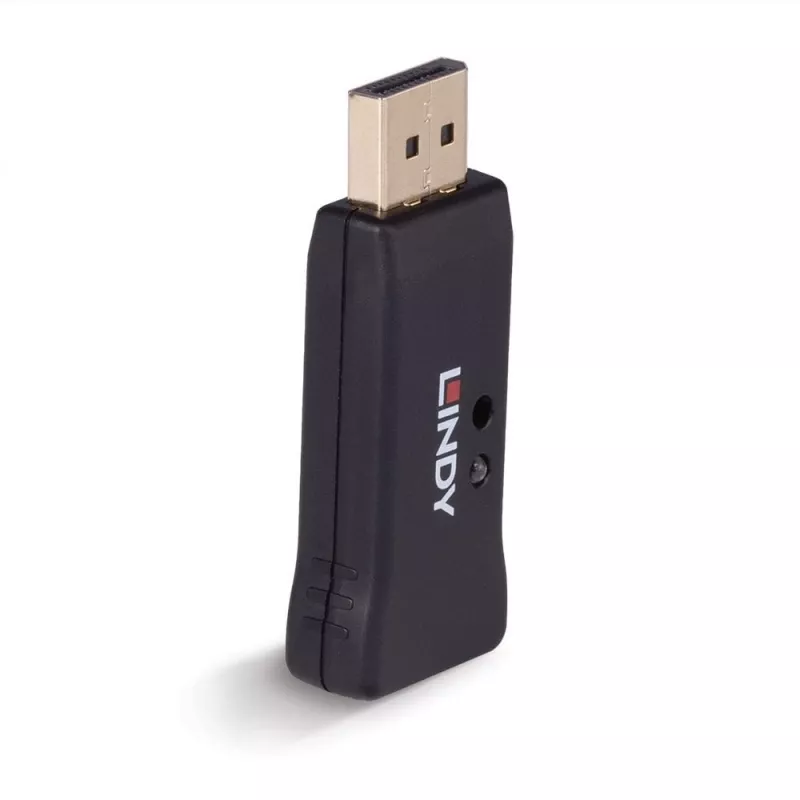

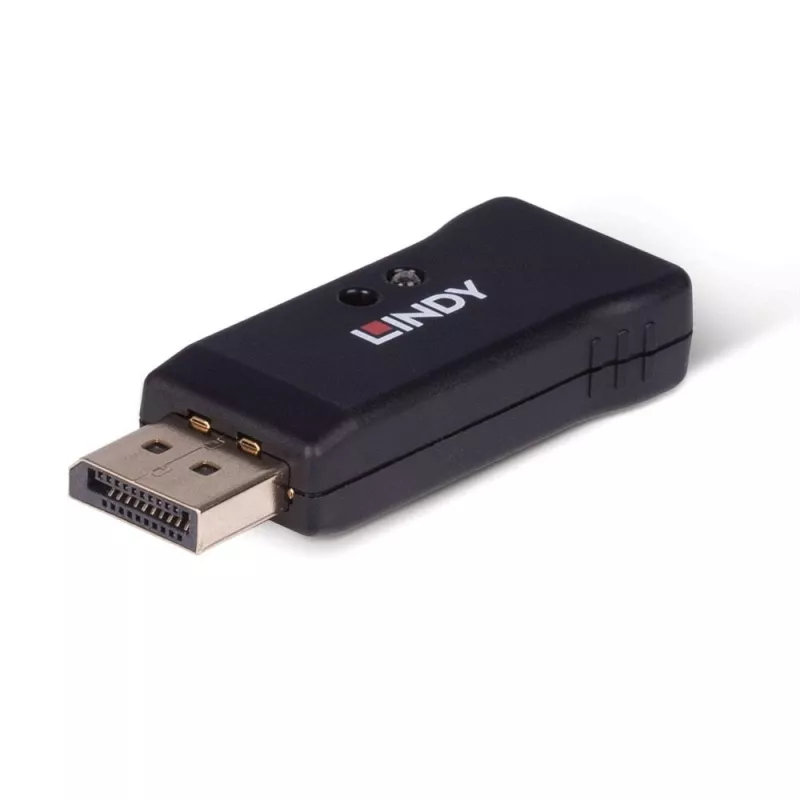

Lindy DisplayPort 1.4 EDID Emulator

The Lindy DisplayPort 1.4 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters and Switches.

The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@30Hz or 3840x2160@144Hz HDR (Via cloning), HDCP 2.2 and DPCP 2.0 pass-through, this emulator is perfect for use with Ultra HD 4K monitors, Displays and source equipment.

A headless EDID adapter enables a simulated connection on the video source device without requiring an actual monitor to be connected.

With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new DPequipmentworks seamlessly with no compromise onperformance.

This adapter can be used to quickly and easily clone the EDID data from the DP display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds;Alternativelythe EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.

Note: When EDID emulator is in headless mode rebooting/restarting will cause the resolution to default to 3840x2160@60Hz, 4:2:2, 8-bit.

Lindy DisplayPort 1.4 EDID Emulator. Maximum video resolution: 7680 x 4320 pixels, Video resolutions: 800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 960,1366 x 768,1600 x 1200,1680 x 1050,1920 x..., Bandwidth: 32.4 Gbit/s. Product colour: Black, Housing material: Plastic. Video port type: DisplayPort. Width: 25.2 mm, Depth: 51.6 mm, Height: 12.1 mm. Package width: 136 mm, Package depth: 138 mm, Package weight: 26 g
