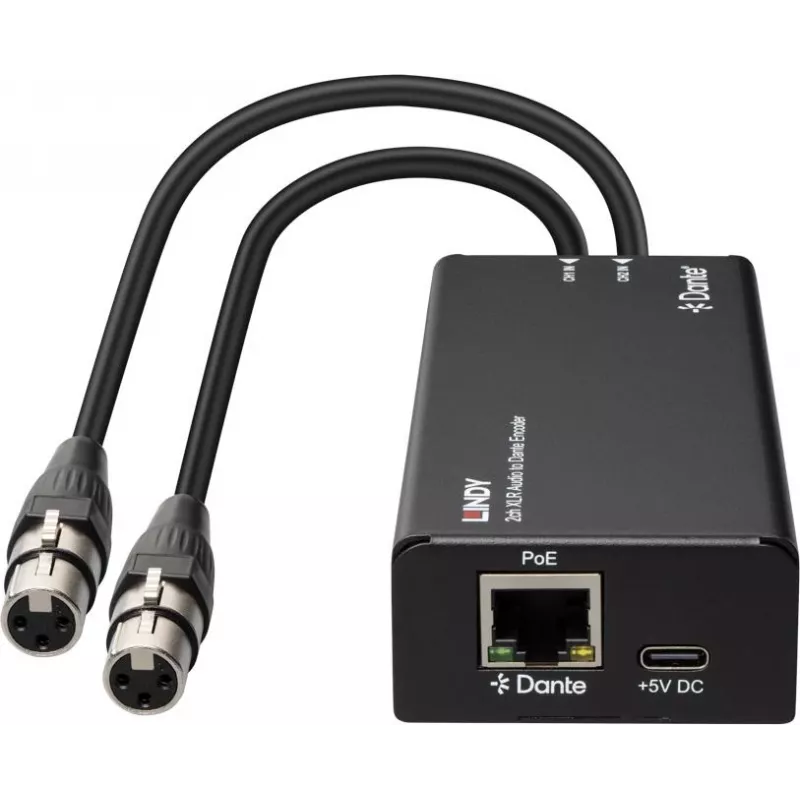

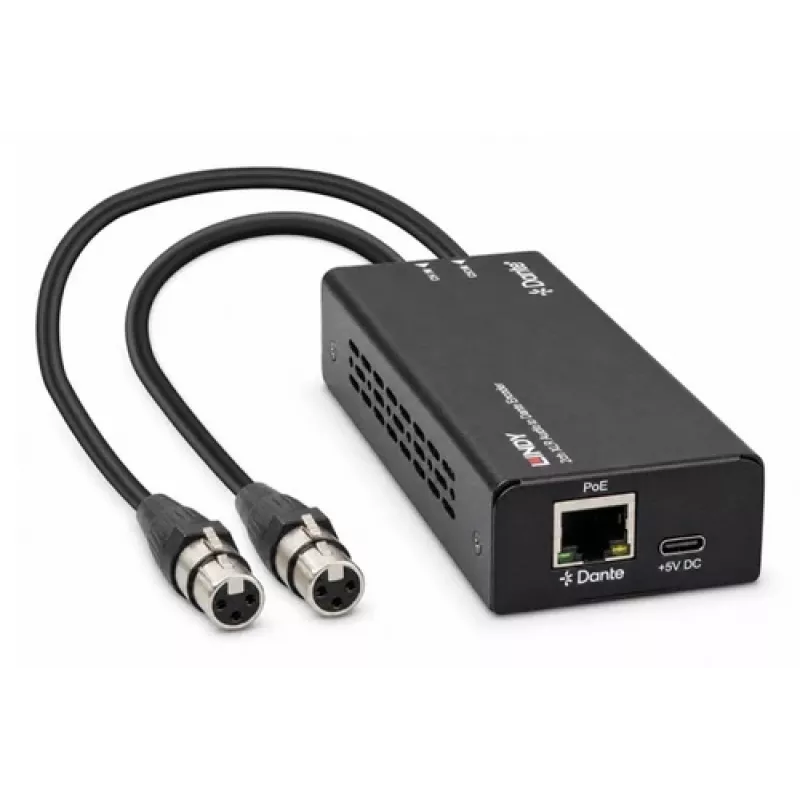

LINDY 2-κάναλο XLR Audio σε Dante Encoder, PoE, AES67, 24-Bit/96kHz 70618

Professional 2-channel analogue audio to Dante network encoder converts balanced XLR line or microphone signals into Dante digital audio streams. With support for 24-bit resolution up to 96kHz, switchable +48V phantom power, and PoE or 12V DC power, it delivers pristine audio over standard Gigabit Ethernet.

Advantages

Integrate legacy analogue audio equipment into modern Dante networks without replacing existing hardware. The encoder supports AES67 and Dante Domain Manager for flexible interoperability, while the rugged metal chassis ensures reliable operation in fixed installations and live environments.

Suitable for

• Live sound reinforcement and recording studios
• Conference rooms and boardrooms with analogue microphones
• Broadcast facilities migrating to AoIP
• Educational and corporate AV installations
• Houses of worship requiring flexible audio routing

Key specifications

• 2 balanced XLR female inputs with individually switchable +48V phantom power
• Dante audio output over Gigabit Ethernet (RJ45)
• Sampling rates: 44.1, 48, 88.2, and 96 kHz at 24-bit
• Frequency response: 20 Hz – 20 kHz (±0.5 dB); dynamic range >100 dB (A-weighted)
• THD+N <0.005% @ 1 kHz; maximum input level +24 dBu
• Power over Ethernet (802.3af) or optional 12V DC adapter
• Dante Controller software for routing and monitoring
• CE, FCC, RoHS, and REACH compliant

Recommendations

For seamless integration of analogue sources into Dante networks, pair this encoder with a PoE-enabled Gigabit switch and use shielded Cat6 cabling to maintain signal integrity. Configure phantom power per channel only when using condenser microphones.
