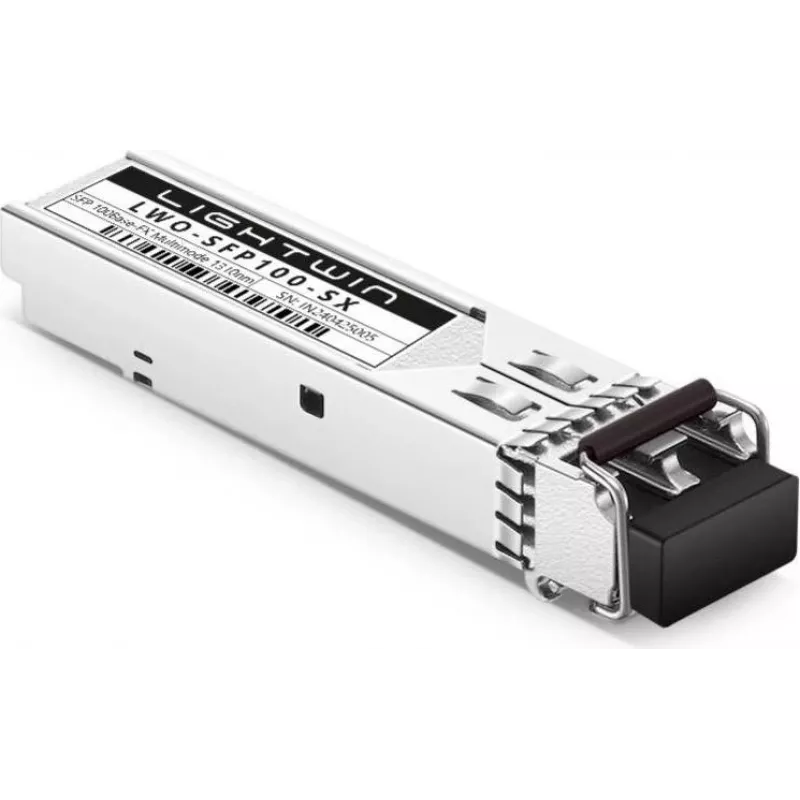

Lightwin LWO-SFP100-SX 155 Mbps SFP Πομποδέκτης, 2 km, LC Duplex, Multimode, DDM

Network administrators upgrading legacy Fast Ethernet links in campus or enterprise environments can rely on the Lightwin LWO-SFP100-SX to deliver stable 155 Mbps connectivity over multimode fiber up to 2 km. This hot-pluggable SFP module fits standard SFP ports and uses a 1310 nm FP laser with an LC duplex connector, making it a direct replacement for existing multimode fiber transceivers. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of key parameters such as optical power, temperature, and voltage, simplifying troubleshooting and proactive maintenance.

Key specifications

• Form Factor: SFP (Small Form-Factor Pluggable)
• Data Rate: 155 Mbps (Fast Ethernet)
• Max Distance: 2 km over multimode fiber
• Connector: LC Duplex
• Wavelength: 1310 nm
• Transmitter: FP Laser
• Receiver: PIN
• DDM/DOM: Yes
• Power Supply: 3.3V
• Hot-Pluggable: Yes
• MSA Compliant: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Power Consumption: < 1W (typical)
• Fiber Compatibility: OM1, OM2, OM3, OM4
• Certifications: RoHS, CE, FCC

Why choose it

This SFP transceiver ensures seamless interoperability with major networking equipment brands, thanks to full MSA compliance. Its low power consumption and robust design reduce total cost of ownership, while DDM support gives you the visibility needed to maintain network health. The commercial temperature range covers most indoor deployments, and the module is backed by rigorous quality testing.

Ideal use cases

• Upgrading or extending Fast Ethernet networks in enterprise buildings
• Connecting switches, routers, and media converters over multimode fiber
• Replacing failed or end-of-life SFP modules in existing installations
• Deploying cost-effective fiber links for IP cameras, access points, or industrial devices

Good to know

The LWO-SFP100-SX is a plug-and-play solution that requires no configuration. It supports full-duplex operation and is compatible with standard SFP cages. Always ensure that both ends of the fiber link use the same wavelength and fiber type for optimal performance. The module is RoHS compliant and meets CE and FCC requirements for electromagnetic compatibility.
