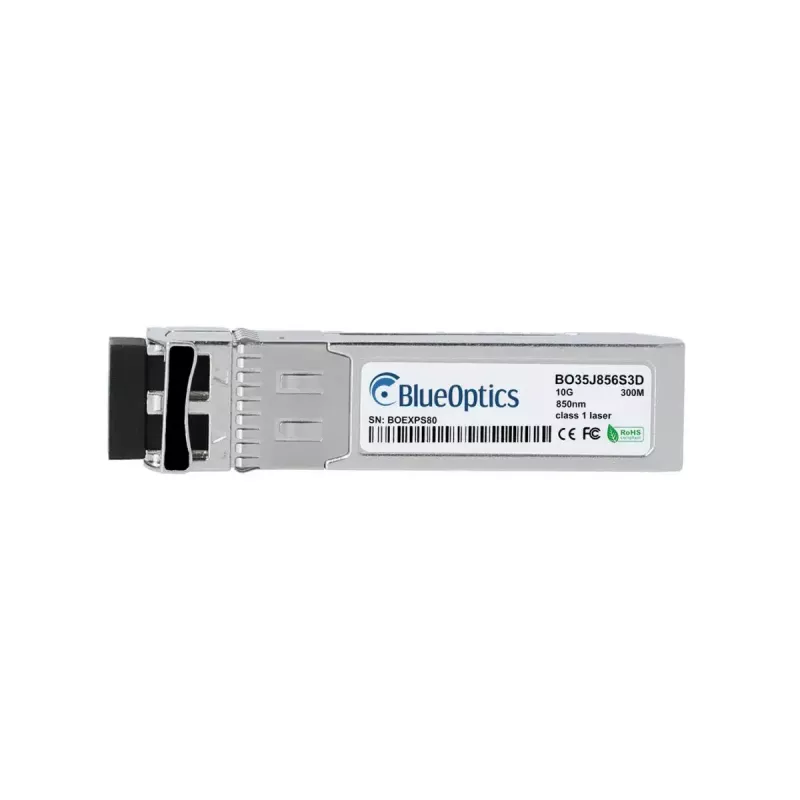

Μονάδα πομποδέκτη οπτικών ινών BlueOptics 407-10356-BO SFP+ 300m

The BlueOptics 407-10356-BO SFP+ 300m is a fiber optic transceiver module designed for short-range 10G data links over multi-mode fiber. Housed in an aluminium casing and weighing 20 grams, this SFP+ module implements the 10GBASE-SR optical interface with LC duplex connector and supports data transmission up to 300 meters. The module is compatible with MSA-compliant SFP+ ports and provides support for common high-speed protocols including Ethernet and Fibre Channel over Ethernet.

Advantages

The module uses 850 nm multimode optics for simultaneous transmit and receive channels and follows MSA standards for mechanical and electrical compatibility. Its aluminium enclosure offers durability while keeping weight low, and the SFP+ form factor enables hot-pluggable installation in supported switches, routers and storage hardware. Digital Diagnostics Monitoring (DDM/DOM) support provides real-time parameters such as supply voltage, laser bias current, optical output and received power, and temperature when the host system supports this feature.

Suitable for

• 10 Gigabit Ethernet links in data center racks and server rooms
• Short-range multimode fiber connections up to 300 m
• Interconnects between switches, storage arrays and servers
• Fibre Channel over Ethernet and other high-speed applications

Key specifications

• Interface type: SFP+ (10GBASE-SR)
• Wavelength: 850 nm multimode optics
• Maximum reach: up to 300 meters over multimode fiber

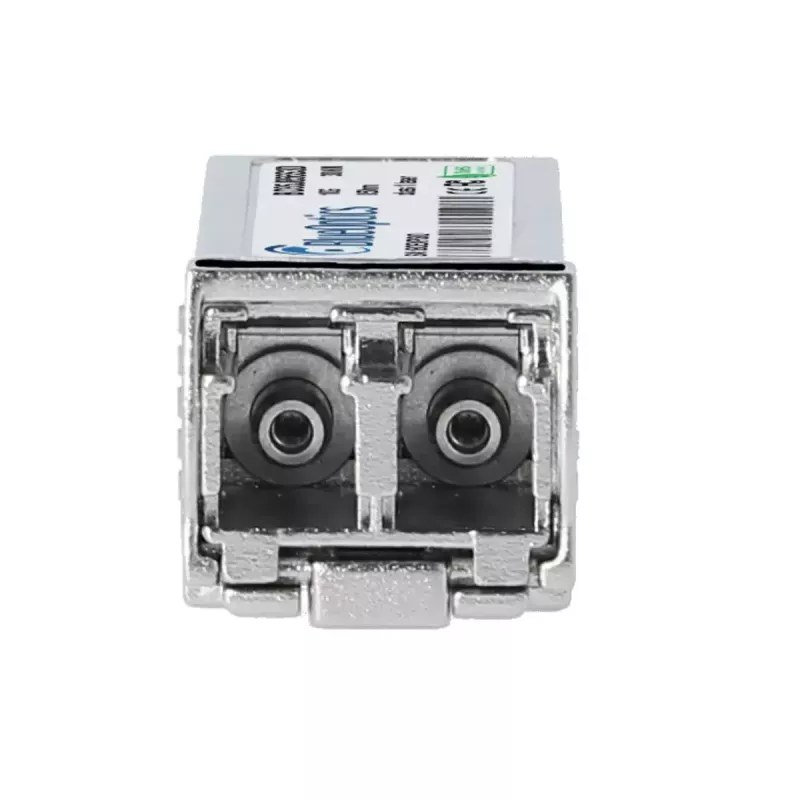

• Connector: LC duplex
• Housing material and colour: aluminium
• Weight: 0.02 kg
• Form factor: hot-pluggable SFP+ transceiver
• Monitoring: DDM/DOM support (if host hardware supports it)

How to use

Install the BlueOptics SFP+ module into a compatible SFP+ port until it clicks into place; no power down is required for hot-pluggable installation on supported devices. Connect LC duplex multimode fiber patch cords to the module, ensuring correct Tx/Rx orientation. Verify link status in the host device management interface and, if available, read DDM/DOM parameters to confirm optical power levels and temperature. Use compatible multimode fiber (OM3/OM4 as recommended for 10GBASE-SR) to achieve the specified 300 m range.

Recommendations

To obtain reliable 10G links, use high-quality LC duplex multimode patch cords and maintain clean connector endfaces. Confirm that the target hardware officially supports MSA-compliant third-party SFP+ transceivers and that DDM/DOM features are enabled if diagnostics are required. Avoid bending fiber beyond recommended radii and consult your network equipment documentation for any vendor-specific settings related to third-party optics.
