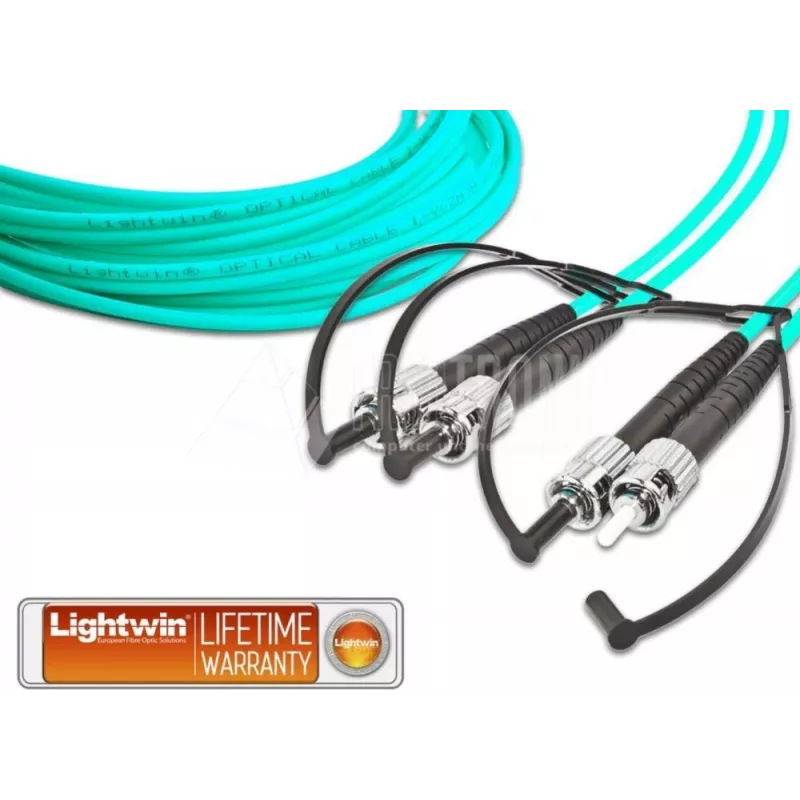

Lightwin LDP-50 ST-ST 5.0 OM3 Duplex Multimode Καλώδιο Patch Οπτικών Ινών, 5 m, Aqua, LSZH

High-speed data links demand more than just any cable—they require a connection that maintains signal integrity over distance. The Lightwin LDP-50 ST-ST 5.0 OM3 is a 5-meter duplex multimode fiber optic patch cable engineered to deliver reliable 10 Gigabit Ethernet performance up to 300 meters. Its aqua LSZH jacket and precision-polished ST connectors ensure low insertion loss and high return loss, making it a dependable choice for data centers, enterprise networks, and high-performance computing environments.

Who is it for

This patch cable is ideal for network engineers, IT administrators, and system integrators who need a robust, standards-compliant fiber optic link for 10G, 40G, and 100G applications. It suits data center interconnects, backbone cabling, and any environment where safety and performance are critical, thanks to its low-smoke zero-halogen jacket.

Main features

• OM3 multimode fiber with 50/125 µm core/cladding supports 10 Gbps up to 300 m and higher rates at shorter distances.
• Duplex construction with ST connectors on both ends for secure, bayonet-style mating.
• Aqua LSZH jacket is flame-retardant and emits low smoke and zero halogen, enhancing safety in enclosed spaces.
• Typical insertion loss ≤ 0.3 dB and return loss ≥ 30 dB ensure minimal signal degradation.
• Operating temperature range from -20°C to +70°C for reliable performance in varied conditions.
• Compliant with IEC 60793, TIA/EIA-568-C.3, RoHS, and CE standards.

Specifications

• Cable Type: Fiber Optic Patch Cable, Duplex
• Fiber Mode: Multimode (OM3)
• Core/Cladding Diameter: 50/125 µm
• Connectors: ST to ST
• Length: 5 m (16.4 ft)
• Jacket Color: Aqua
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Maximum Data Rate: 10 Gbps (up to 300 m), 40/100 Gbps (shorter distances)
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 30 dB (typical)
• Polishing Type: PC (Physical Contact)
• Minimum Bend Radius: 30 mm (installation), 60 mm (long-term)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: IEC 60793, TIA/EIA-568-C.3, RoHS, CE

Tips

To maintain optimal performance, avoid exceeding the minimum bend radius during installation and use. For 10G applications, ensure the total link length does not exceed 300 meters. Store in a dry, temperature-controlled environment when not in use.
