Lanview LVO231406-FLEX Καλώδιο InfiniBand/οπτικής ίνας 1 m LC LC/LC κίτρινο

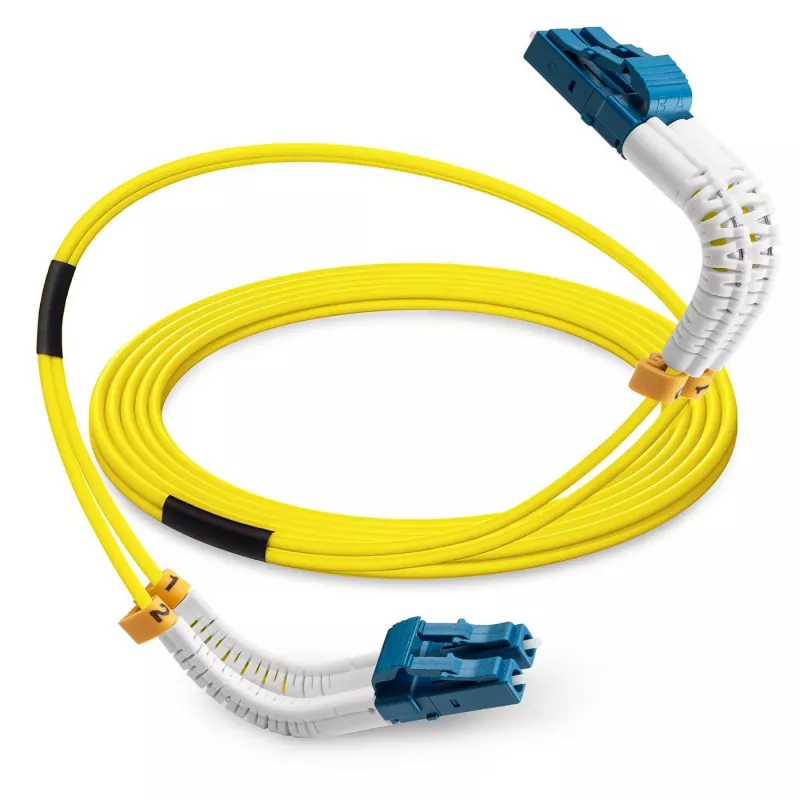

The Lanview LVO231406-FLEX is a 1 m fibre optic cable with LC connectors on both ends, designed for single-mode OS2 transmission. The cable is full duplex and intended for high-speed data links in networking and data centre environments, including InfiniBand applications. Its yellow jacket and 9 µm core meet standard single-mode cable conventions.

Advantages

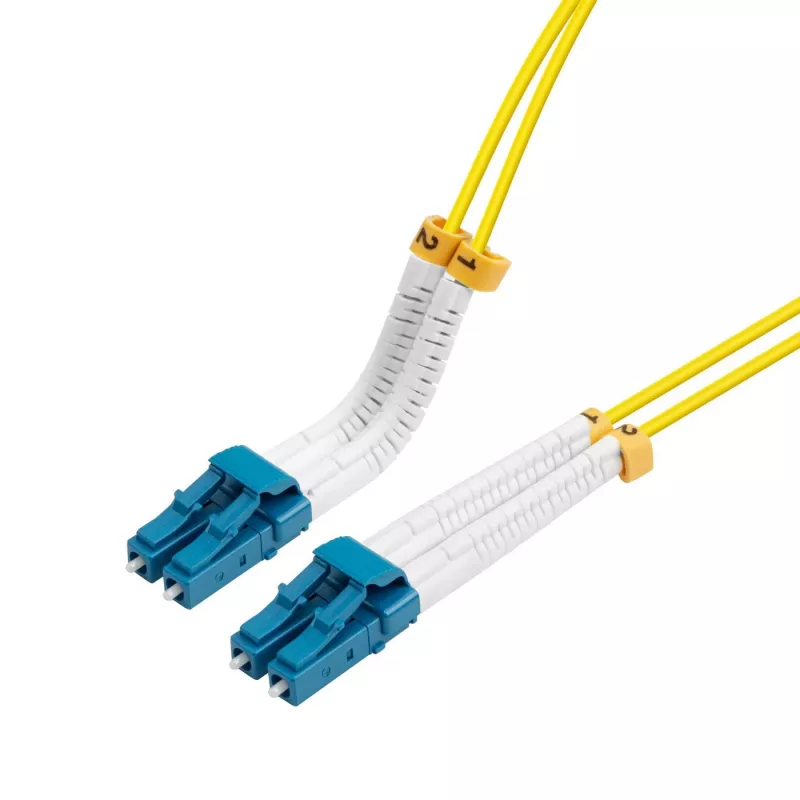

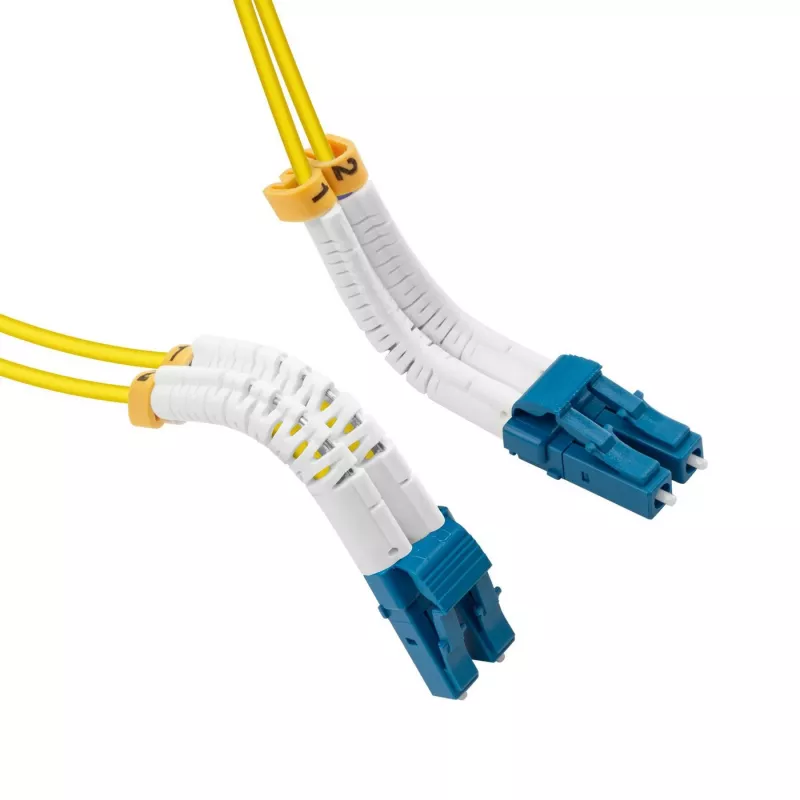

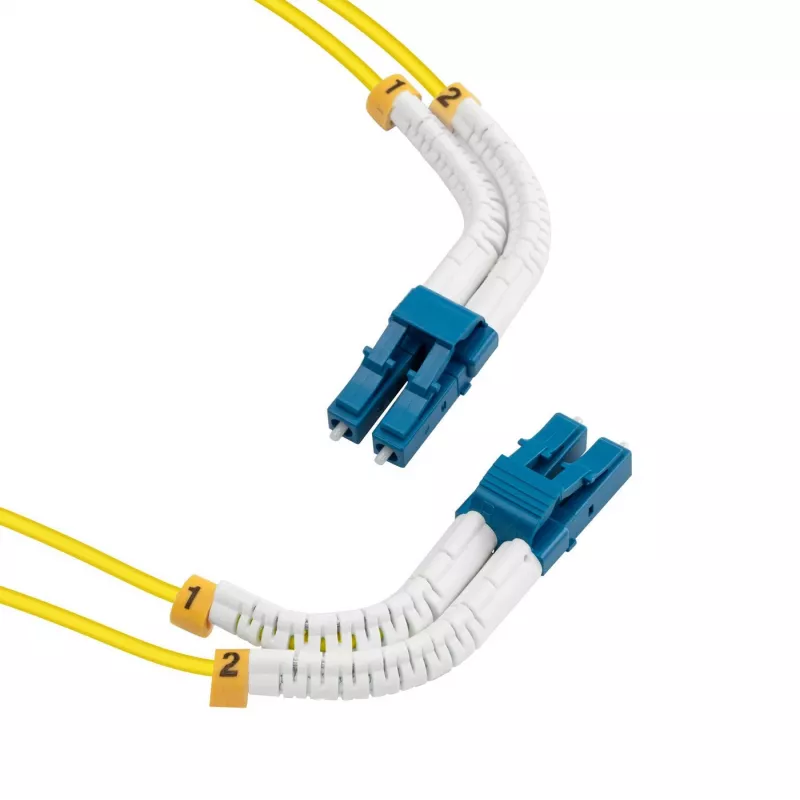

The Bendable series features a moulded boot built around a single stainless-steel wire that lets the connector be positioned by hand and retain any chosen angle from straight to 90°. The boot can be reformed or straightened for disconnection, enabling precise routing in confined or high-density installations while maintaining connector stability.

Suitable for

• Rack and cabinet installations in data centres
• High-density patch panels and splitter trays
• InfiniBand and other high-speed networking links
• Tight or constrained cable routing paths

Key specifications

• Cable type: LC/LC
• Fibre type: OS2 (single-mode), 9 µm core
• Cable length: 1 m
• Connector 1: LC
• Connector 2: LC
• Colour: Yellow
• Weight: 0.02 kg
• Model / MPN: LVO231406-FLEX
• EAN: 5715063506080

How to use

Insert the LC connectors into compatible LC duplex ports ensuring proper alignment and secure latching. Bend the moulded boot by hand to set the desired angle for routing; the internal stainless-steel wire will hold the position. To disconnect, straighten the boot and remove the connector. Use standard fibre handling precautions to avoid contamination of end faces and to protect the cable from sharp bends beyond its designed range.

Recommendations

For reliable performance, keep connector end faces clean, use dust caps when not connected, avoid exceeding the manufacturer’s recommended bend radius except where the boot is intentionally formed, and store the cable without tight coils or kinks. The Bendable boot is intended to aid routing in dense environments but does not replace proper cable management practices.
