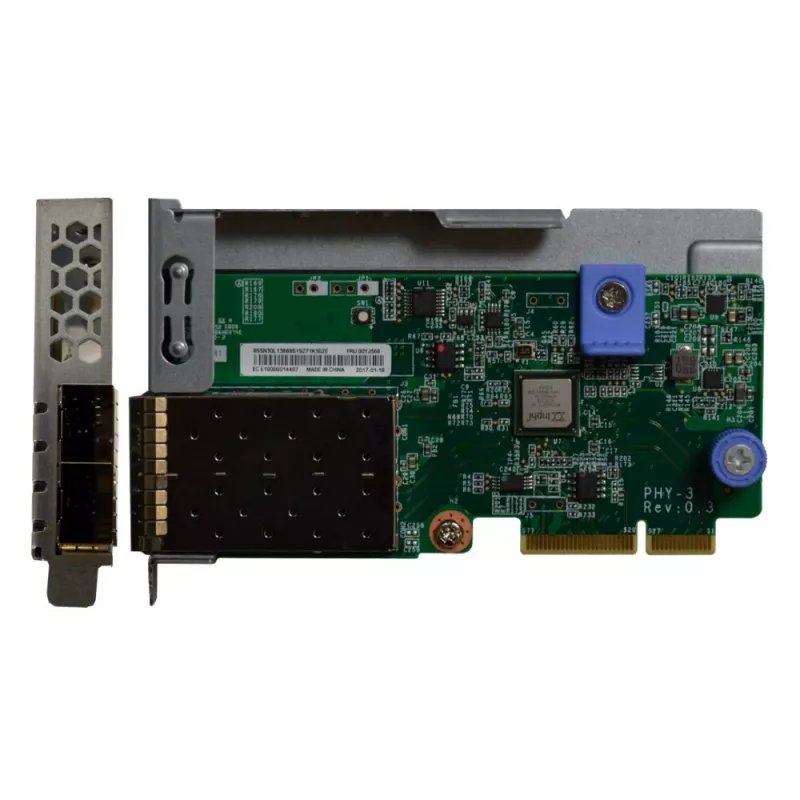

Lenovo 7ZT7A00546 Κάρτα δικτύου Εσωτερική Fiber 10000 Mbit/s

The Lenovo 7ZT7A00546 is an internal fiber network card designed for server and workstation use, providing up to 10 000 Mbit/s data transfer over SFP+ fiber or direct-attach copper when used with compatible Lenovo ThinkSystem platforms. The card uses a PCI Express host interface and implements standard Ethernet features to integrate with the Intel X722-based LOM architecture found on select ThinkSystem systems.

Advantages

The card delivers high-speed 10 GbE connectivity with support for IEEE 802.1Q VLAN tagging, IEEE 802.1p priority, IEEE 802.3ad link aggregation and IEEE 802.3x flow control, enabling reliable and manageable network performance. Its internal form factor and integration with Lenovo ThinkSystem LOM configurations simplify installation in supported servers. The metallic green finish provides a durable, identifiable component color for system builds.

Suitable for

• High-throughput server networking and virtualization hosts
• Storage and backup networks requiring 10 GbE links
• Aggregated link setups using IEEE 802.3ad link aggregation
• Environments needing VLANs and priority traffic handling (IEEE 802.1Q/802.1p)

Key specifications

• Manufacturer: Lenovo, MPN: 7ZT7A00546, EAN: 889488438600
• Maximum data transfer rate: 10000 Mbit/s (10 GbE)
• Host interface: PCI Express
• Connectivity technology: Wired (fiber / SFP+ or direct-attach copper when supported)
• Networking standards: IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
• Colour: Metallic green

How to use

Install the Lenovo 7ZT7A00546 into an available PCI Express slot of a compatible Lenovo ThinkSystem server or workstation following the server manufacturer’s service manual. Connect SFP+ fiber modules or direct-attach copper cables to the card’s SFP+ cages or integrated connectors as supported by the system. Configure network settings, VLANs, and link aggregation on the server operating system or network management software according to your network design. Ensure firmware and drivers from Lenovo are installed for full feature support.

Recommendations

Use appropriate SFP+ transceivers or DAC cables certified for your Lenovo ThinkSystem model, keep drivers and firmware up to date, and verify compatibility with the server’s onboard LOM configuration when replacing or adding the card.
