Lanview MO-OMXD30000 Μονάδα πομποδέκτη δικτύου Οπτική ίνα 10000 Mbit/s SFP+ 850 nm

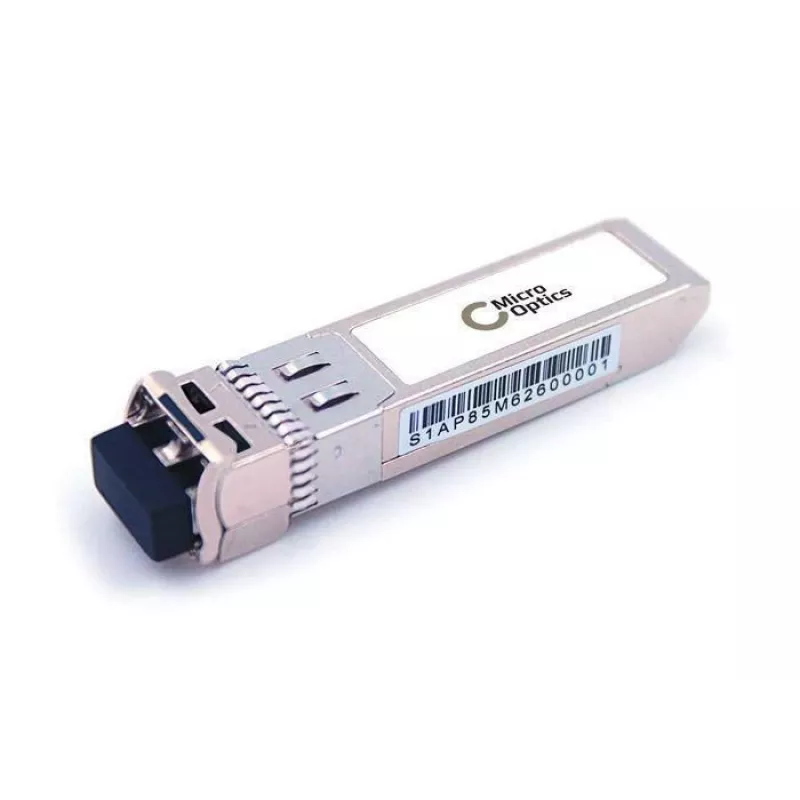

The Lanview MO-OMXD30000 is a compact SFP+ transceiver module designed for 10000 Mbit/s data transfer over an 850 nm wavelength. Constructed with stainless-steel housing, the module is intended for use in high-speed network environments and is fully compatible with Huawei equipment.

Advantages

Compact SFP+ form factor supports high-density deployment. Stainless-steel construction provides physical durability and improved resistance to wear. Designed for 850 nm multimode fiber links, the module enables 10 Gbps connectivity while maintaining compatibility with Huawei networking devices.

Suitable for

• 10 Gbps links over multimode fiber (850 nm)
• High-density SFP+ switch and router ports
• Data center uplinks and server connections
• Enterprise LAN backbones and aggregation links

Key specifications

• Data rate: 10000 Mbit/s (10 Gbps)
• Wavelength: 850 nm
• Form factor: SFP+
• Connector type: LC duplex (multimode fiber)
• Housing material: stainless steel

How to use

Insert the SFP+ module into a compatible SFP+ port on a switch, router, or host adapter until it latches. Connect LC duplex multimode fiber cables to the module, ensuring correct transmit/receive orientation. Verify link and speed status on the networking device and configure the interface as required by your network settings.

Recommendations

Use with multimode fiber rated for 850 nm and keep dust caps on when the module is not in use. Confirm Huawei compatibility with your device firmware and perform link testing after installation to ensure expected 10 Gbps performance.
