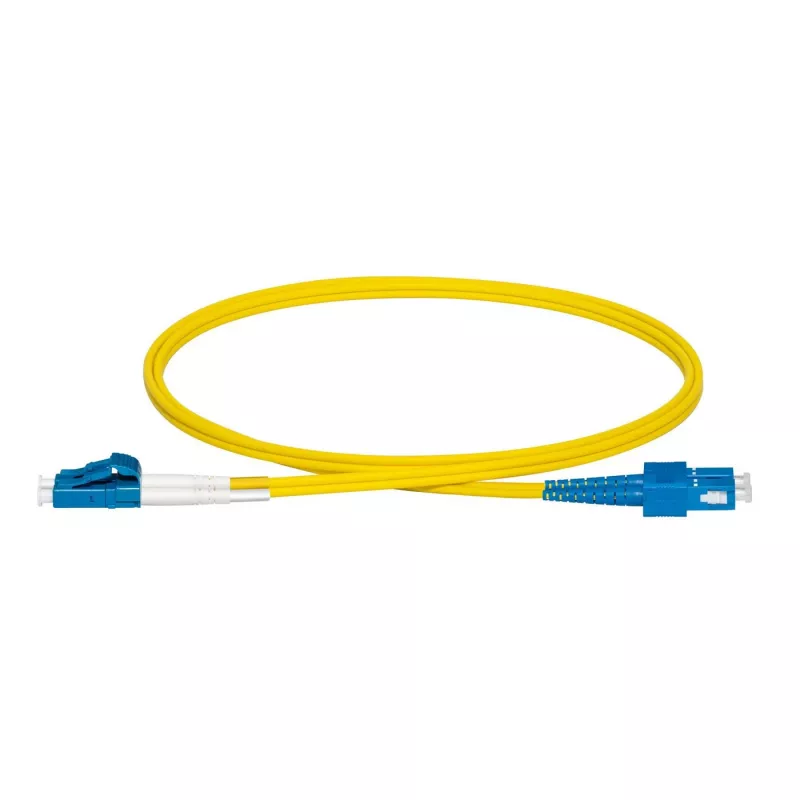

Lanview LVO231493 Καλώδιο InfiniBand/οπτικής ίνας 3 m 2x LC 2x SC κίτρινο

The Lanview LVO231493 is a 3 m single mode fibre optic cable with 2x LC to 2x SC connectors, designed for reliable high-speed network links. Using OS2 fibre (9 µm core), this full-duplex patch cord supports Ethernet connections including 1G, 10G, 40G and 100G and is suitable for installation in enterprise networks, telecom rooms, server farms and cloud storage networks. The LSZH jacket conforms to common industry standards for fibre patch cords.

Advantages

The cable provides low-loss transmission over long distances — up to 10 km at 1310 nm and up to 40 km at 1550 nm — and its OS2 single mode fibre ensures stable performance for high-speed links. The combination of LC and SC connectors offers compatibility with a wide range of equipment, while the 3 m length and yellow LSZH jacket make it easy to identify and route in structured cabling installations.

Suitable for

• Enterprise network backbones and horizontal runs
• Telecom rooms and patch panels
• Server farms and data centres connecting switches and transceivers
• Cloud storage and high-speed Ethernet links (1G/10G/40G/100G)

Key specifications

• Product name: Lanview LVO231493
• Fibre type: OS2 single mode, core diameter 9 µm

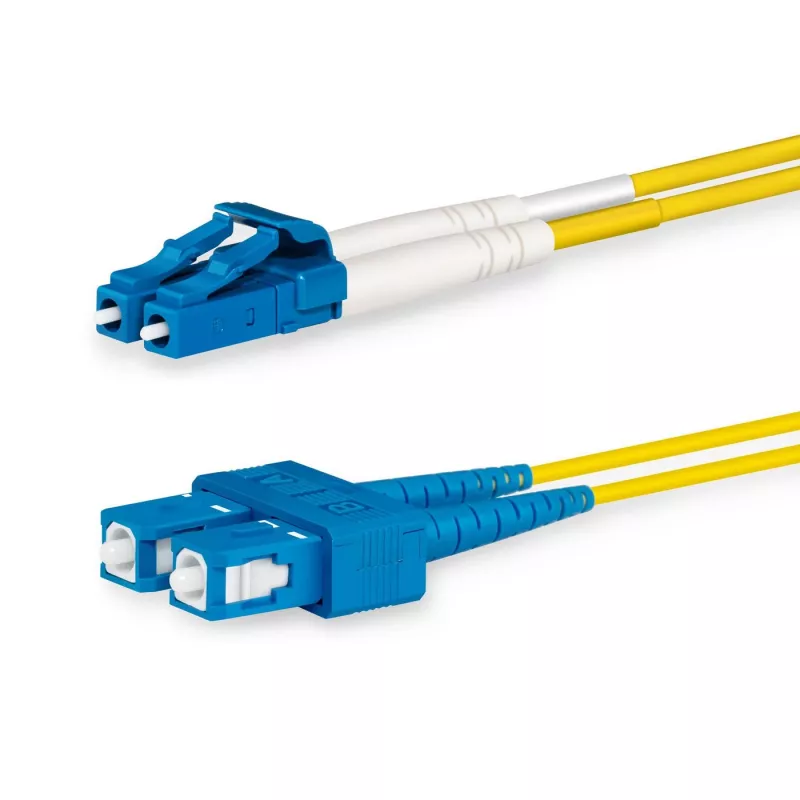

• Connectors: 2x LC to 2x SC (full duplex)
• Cable length: 3 m
• Jacket: LSZH, colour: Yellow
• Weight: 0.042 kg
• Transmission range: up to 10 km at 1310 nm, up to 40 km at 1550 nm

How to use

Route the 3 m patch cord between the intended LC and SC ports, ensuring connectors match the transceiver or patch panel ports. Clean connectors before mating to minimize insertion loss. Insert the LC ends into LC ports and the SC ends into SC ports until they click or are securely seated. Use appropriate cable management to avoid sharp bends and maintain the minimum bend radius for single mode fibre.

Recommendations

Inspect and clean fibre connectors with approved cleaning tools before each connection, avoid exceeding the cable's minimum bend radius during installation, and store unused cables coiled loosely to prevent microbending. Use this OS2 single mode cable for long-reach, high-speed Ethernet links and in environments where LSZH jacket material is required.
