Lanview LVN125416 Συνδετήρας καλωδίων

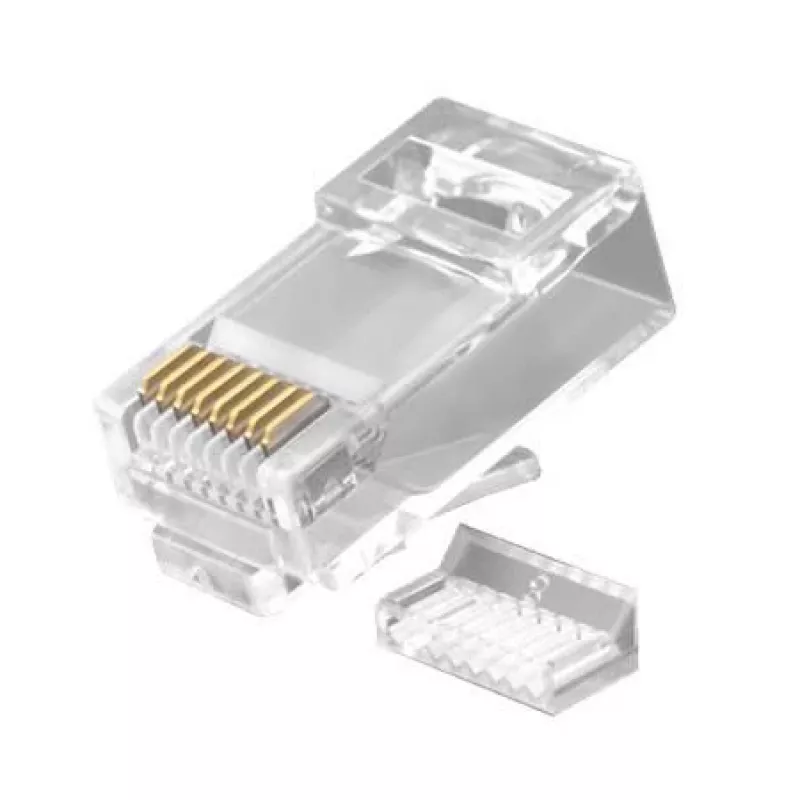

The Lanview LVN125416 wire connector is an RJ45 plug designed for direct mounting on larger AWG cables such as Cat6a. It supports unshielded twisted-pair cable installations and is commonly used when terminating network cables for devices like IP cameras. The compact connector weighs 28 g and each pack contains 10 pieces, suitable for small installation projects and repairs.

Advantages

The connector accommodates larger conductor sizes and allows direct mounting without bulky adapters. Its compact dimensions (12 mm width, 21 mm depth) enable installation in confined enclosures. Supplied in packs of 10, it simplifies inventory for technicians and reduces the need for individual packaging.

Suitable for

• Termination of Cat6a and other large-AWG UTP network cables
• Installation of IP cameras and PoE devices
• On-site network repairs and short-run patching

Key specifications

• Model: Lanview LVN125416
• Type: RJ45 wire connector for direct mounting
• Cable compatibility: Unshielded (UTP), large AWG (e.g., Cat6a)
• Weight per pack: 28 g
• Connector dimensions: 12 mm (W) × 21 mm (D)
• Pack quantity: 10 pieces
• EAN: 5704174536925

How to use

Strip the outer sheath and arrange the twisted pairs according to the required wiring standard, then insert the conductors into the RJ45 plug and perform the crimping/termination procedure specified for the connector type. Ensure the cable is fully seated and secured before testing the link with a network tester or by connecting the endpoint device.

Recommendations

Use with unshielded twisted-pair cables only; verify conductor sizes are compatible with the LVN125416. For installations requiring shielded cable or enhanced EMI protection, choose a shielded connector. Test each terminated cable to confirm continuity and correct wiring before finalizing the installation.
