KVM switch ATEN CL3700NW τοποθέτησης σε rack μαύρο USB HDMI Full HD

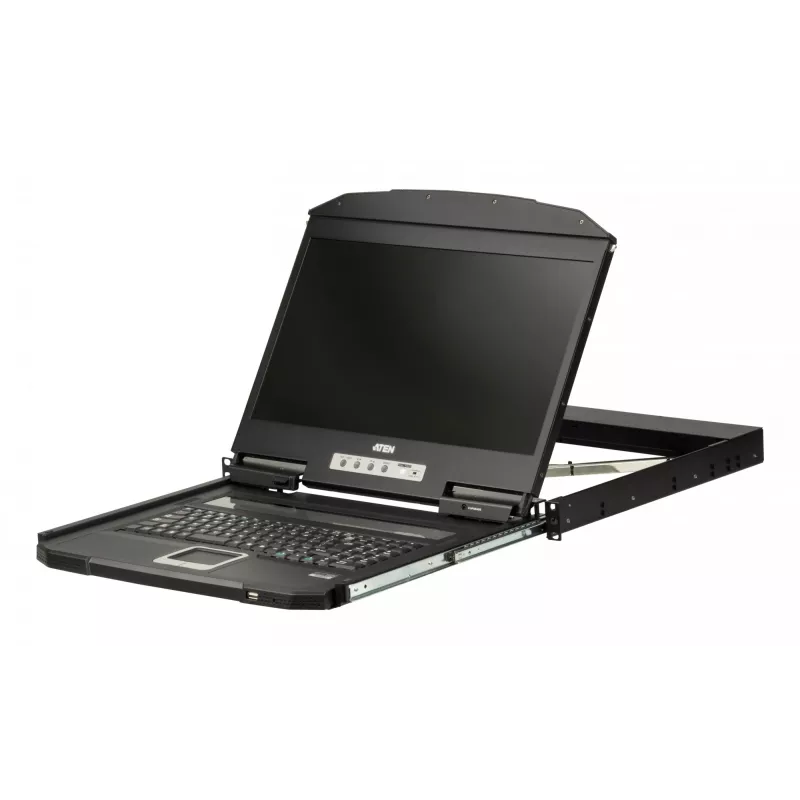

The ATEN CL3700NW USB HDMI LCD Console is a short-depth, single-rail rack console with an integrated 18.5" LED-backlit widescreen LCD, keyboard and touchpad. Designed for 19" equipment cabinets and especially suitable for shallow racks, the CL3700NW is intended as a space-saving front-end sliding console for compatible HDMI KVM switches and is suitable for environments such as OB vans, compact control rooms and other limited-space installations.

Advantages

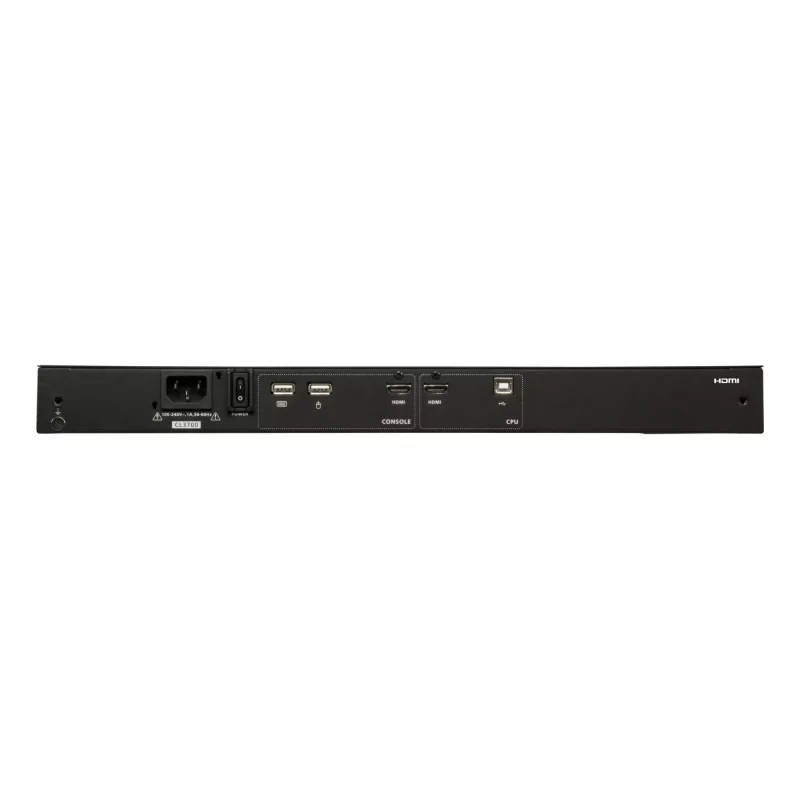

The CL3700NW delivers Full HD widescreen video up to 1920 x 1200 for clear display, a compact short-depth design to fit shallow racks, and integrated USB keyboard and touchpad for convenient local control. Front-panel USB mouse port and rear-panel ports for a second KVM console (USB keyboard/mouse and HDMI monitor) provide flexible deployment. The unit is built from metal and plastic for rack durability and has been tested to MIL-STD-810G procedures for temperature, vibration and shock resistance to ensure reliable operation in demanding conditions.

Suitable for

• Broadcast mobile units (OB vans) and live streaming vehicles
• Compact control rooms and network operation centres with limited rack depth
• Any 19" rack installation requiring a single-computer HDMI KVM front console

Key specifications

• Model: CL3700NW (MPN: CL3700NW-DE, EAN: 5704174605492)
• Display: 18.5" LED-backlit widescreen LCD, Full HD up to 1920 x 1200
• Video port type: HDMI
• Keyboard / Mouse: USB (integrated keyboard and touchpad; front USB mouse port; rear USB ports for second console)
• Form factor: Short-depth single-rail rack-mount console for 19" cabinets
• Construction: Metal and plastic housing
• Weight: 9.01 kg
• Power: AC input with wide voltage range (as specified by manufacturer)
• Number of controlled computers: 1

How to use

Install the CL3700NW into a 19" rack by sliding the single-rail console into the allocated bay and secure it according to the rack-mount instructions. Connect the HDMI and USB cables from the CL3700NW to the target computer or to the compatible HDMI KVM switch. Use the integrated keyboard and touchpad for local operation, or attach an external USB mouse to the front panel. If a second console is required, connect its USB keyboard/mouse and HDMI monitor to the rear-panel ports. Power the unit from the rack power source and verify video output at Full HD resolution.

Recommendations

For secure and stable installation, it is recommended to use compatible accessories such as ATEN 2K-0003 / 2K-0004 mounting kits and cable retention solutions like the 2X-EA12 LockPro HDMI cable lock and the 2X-EA07 Lok-U-Plug cable holder when installing in mobile or vibration-prone environments.
