Κουτί πρίζας Type F Kindermann 7430000084

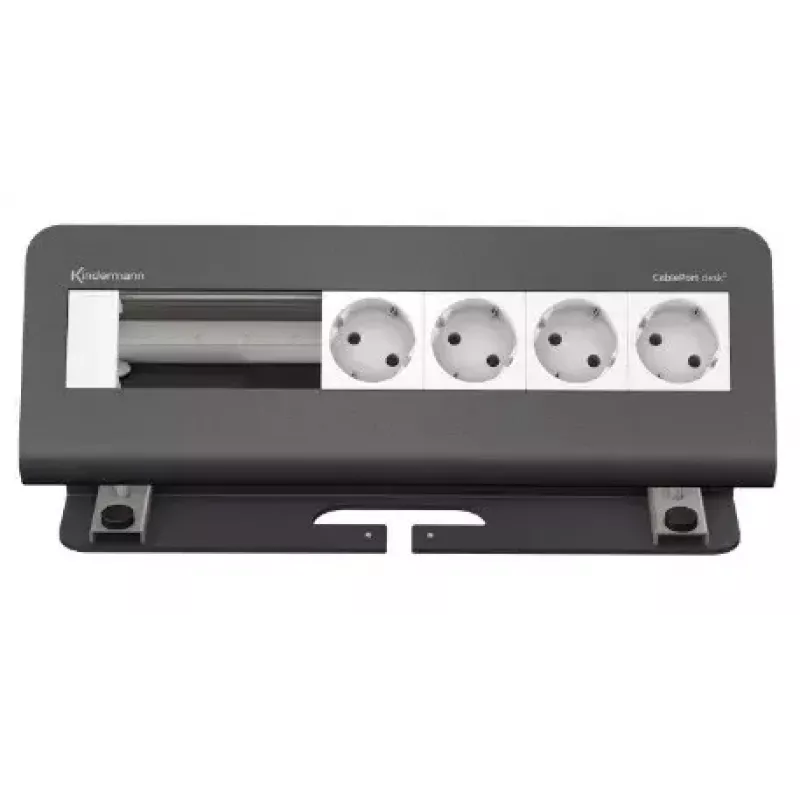

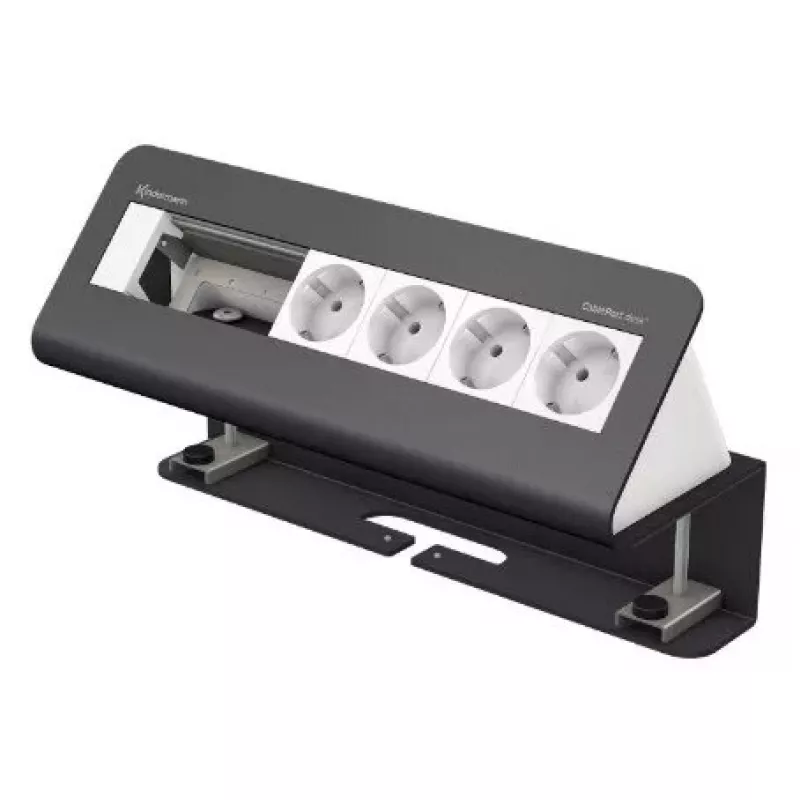

The Kindermann 7430000084 outlet box is a desktop-mounted connection unit with a 6-fold casing in powder-coated RAL 7015 slate grey. It includes four fixed mains sockets and additional space for individual configuration. The housing accommodates either four half or two full adapter plates from the Konnect flex 45 click series and is supplied with a 1 m GST18 power cable. Its compact dimensions and neutral grey finish make it suitable for residential and commercial workspaces.

Advantages

Adapter plates mount with an easy click mechanism to create a flush surface. The unit is compatible with Neets media controls, USB recharger modules and EnOcean components. Concealed clamps allow secure, anti-slip fixing to desktops with a thickness between 10 and 60 mm. Powder-coated steel construction provides a durable, low-profile finish.

Suitable for

Key specifications

How to use

Position the outlet box on the edge of the desktop and tighten the concealed clamps until the unit is firmly seated against the surface. Insert Konnect flex 45 click adapter plates by aligning and pressing them into the click mounts to achieve a flush finish. Connect the GST18 power cable to a compatible supply and plug in devices to the included mains sockets or installed adapter modules.

Recommendations

Install the unit on desks with a clean, level edge and confirm the desktop thickness is within 10–60 mm. For safe operation, use compatible Konnect flex 45 plates and certified modules; have electrical connections installed or inspected by a qualified electrician when integrating permanent wiring.
