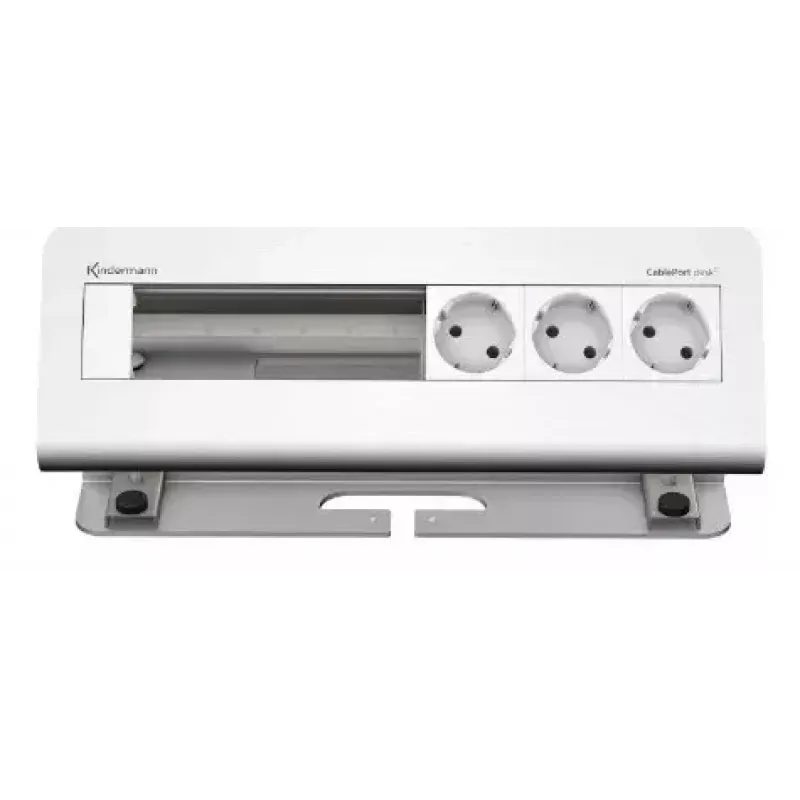

Πρίζα επιτραπέζια Type F Kindermann 7430000063

The Kindermann 7430000063 outlet box is a desk-mounted connection module made from anodized aluminium with a white finish. It provides space for up to six half or three full adapter plates from the Konnect flex 45 click series and includes a 1 m GST18 power cable. The casing is designed for secure fixing at desktops with thicknesses from 10 to 60 mm and offers flush, easy-to-use functionality for electrical and multimedia connections.

Advantages

The aluminium housing is durable and anodized for a clean look and long service life. Adapter plates mount via an easy click system that results in a flush surface. The unit is compatible with Neets media controls, USB chargers and EnOcean modules. Concealed clamps provide secure, non-slip attachment to desks and allow straightforward installation without visible fixings.

Suitable for

Key specifications

How to use

Position the outlet box on the desk edge at a location where the 1 m GST18 cable can reach the main power source. Use the concealed clamps to secure the unit to desks 10–60 mm thick by tightening as required until the housing is held firmly and without slip. Install Konnect flex 45 click adapter plates by pressing them into the cutouts until they click flush with the surface. Connect the GST18 cable to a compatible power inlet to provide mains to the installed power modules.

Recommendations

For safe operation, verify that the connected modules and the building power supply meet local electrical standards. Do not exceed the rated current of the installed adapter plates and ensure the outlet box is mounted on a stable desk edge within the specified thickness range.
