Κουτί PC Thermaltake View 390 Air Midi Tower λευκό

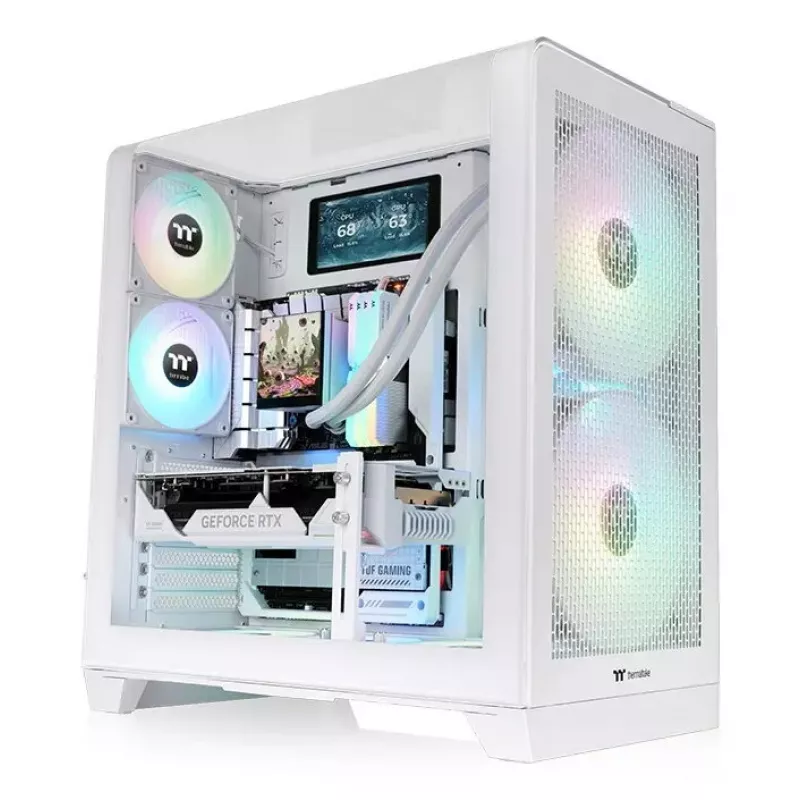

The View 390 Air Snow Mid Tower Chassis is an ATX case with curved tempered glass side and top panels, a perforated front panel, rotational PCI-E slots for horizontal or vertical GPU mounting, an included GPU bracket and riser cable bracket, and two pre-installed CT120 120mm rear PWM fans. It supports up to eleven 120mm fans in total, up to two 200mm front fans, a 360mm AIO radiator at the front or motherboard side, and can be fitted with an optional 6" LCD Screen Kit for real-time system information and custom visuals.

Advantages

The case offers strong cooling capacity through multiple fan mounting points, a perforated front panel and two rear CT120 fans, combined with removable dust filters for easier maintenance. Its curved 4mm tempered glass panels provide a distinctive look while supporting hidden-connector motherboards from major vendors. Rotatable PCI-E slots plus a GPU holder and riser support allow flexible GPU orientation and reduce sag. Top-panel I/O including two USB 3.0 ports, one USB 3.2 Gen 2 Type-C, reset and HD audio provide convenient access.

Key specifications

• Form factor: Mid Tower (ATX, micro ATX, Mini-ITX compatible)
• Side and top panels: 4 mm curved tempered glass
• Front panel: perforated for airflow
• Pre-installed fans: 2 × 120mm CT120 PWM (rear)
• Maximum fan support: up to eleven 120mm fans (or up to two 200mm front fans)
• Radiator support: 360mm AIO at front or motherboard side
• Drive bays: up to two 3.5" HDDs or up to three 2.5" SSDs (drive plate at right chamber)
• PCI-E: rotatable slots for horizontal/vertical GPU mounting; includes GPU holder and riser cable bracket
• Dust protection: removable filters at right and bottom
• I/O ports: 2 × USB 3.0, 1 × USB 3.2 Gen 2 Type-C, reset button, HD audio
• Color / materials: White, SPCC + tempered glass
• Optional accessory: 6" LCD Screen Kit (1480×720 support, JPG/GIF playback, TT RGB Plus integration)

How to use

Install a compatible ATX, micro-ATX or Mini-ITX motherboard and secure the power supply and storage drives in the right-chamber drive plate. Mount cooling fans and radiators according to available front or side mounting points; the case supports a 360mm AIO radiator at the front or motherboard side. Use the rotatable PCI-E slots and included GPU holder and riser bracket to position the graphics card horizontally or vertically, preventing sag. Connect front-panel I/O cables to the motherboard headers and, if desired, install the optional 6" LCD Screen Kit and configure it via TT RGB Plus for system monitoring and custom images.

Recommendations

For optimal cooling and cable management, install front intake fans and use the removable dust filters; when adding a vertical GPU mount, ensure the riser cable and GPU bracket are securely fastened. If you choose the 6" LCD Screen Kit, upload optimized JPG/GIF files at 1480×720 for best display quality and keep TT RGB Plus updated.
