Κουτί υπολογιστή Sharkoon SHARK ZONE C10 Mini-ITX Μαύρο, Κίτρινο

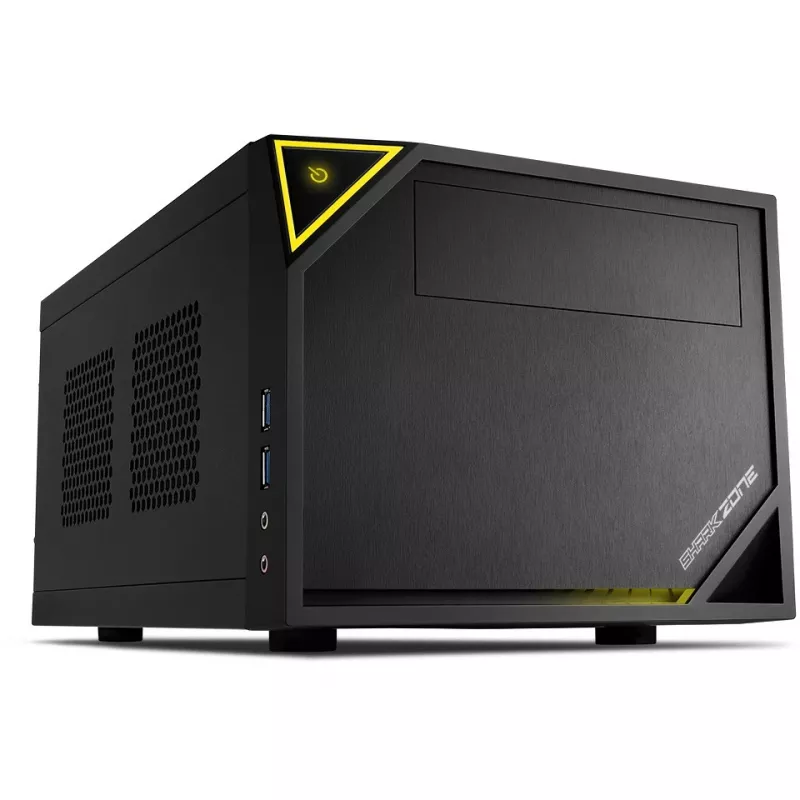

The Sharkoon SHARK ZONE C10 Mini-ITX is a compact PC case in black with yellow accents designed for gamers who need a space-saving yet flexible chassis. It supports Mini-ITX motherboards and accepts conventional ATX power supplies (SFX can be used to save space). With dimensions of 37.0 x 22.5 x 18.0 cm (L x W x H), the case holds up to two expansion cards, offers a 5.25" drive bay for an optical drive, and provides multiple mounting options for HDD and SSD storage.

Advantages

The SHARK ZONE C10 combines a compact footprint with a well-ventilated metal design and practical mounting options. It includes a pre-installed quiet 120 mm top fan and space for an additional 120 mm fan or a 240 mm radiator if the optical drive bay is not used. All side panels have ventilation openings with dust filters, and the front I/O provides two USB 3.0 ports and two audio jacks for convenient connectivity.

Suitable for

• Compact gaming PCs based on Mini-ITX motherboards
• LAN party systems and space-limited setups
• Builds requiring one or two drives (2.5"/3.5") and a single dual-slot graphics card

Key specifications

• Form factor: Mini-ITX
• Dimensions (L x W x H): 37.0 x 22.5 x 18.0 cm
• Expansion slots: up to 2 (dual-slot GPU supported, max length 31.5 cm)
• Drive bays: 1 x 5.25" (optical), up to two 3.5" or two 2.5" (without optical drive), plus one additional 2.5" mounting option
• Pre-installed fans: 1 x 120 mm (top)
• Additional fan support: 1 x 120 mm (top), 1 x 80 mm (rear)
• Liquid cooling: space for a 240 mm radiator at top if no optical drive is installed
• Front I/O: 2 x USB 3.0, 2 x audio ports
• Material: Metal
• Colour: Black, Yellow
• Weight: 3 kg

How to use

Install a Mini-ITX motherboard and position a conventional ATX power supply or smaller SFX unit depending on available space. Mount a dual-slot graphics card up to 31.5 cm in length. Use the 5.25" bay for an optical drive or omit it to free space for additional drives or a 240 mm radiator. Connect front-panel USB and audio ports to the motherboard headers and secure panels using the thumbscrews provided for easy access.

Recommendations

For optimal airflow, keep side ventilation openings unobstructed and use the pre-installed 120 mm fan together with an optional rear 80 mm fan. If planning water cooling, remove the optical drive and install a 240 mm radiator at the top. Choose an SFX power supply to maximize internal space when using larger graphics cards or multiple drives.
