Keystone Jack ACT CAT6 πλήρως θωρακισμένο χωρίς εργαλεία TD6020

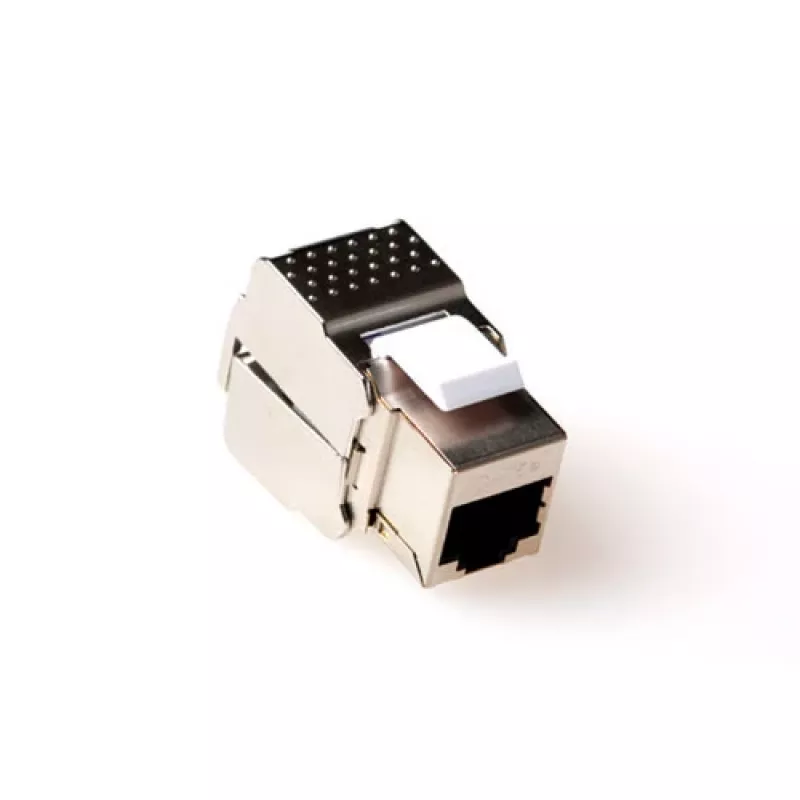

The ACT CAT6 Keystone Jack Full Shielded Tool Free TD6020 is a compact, easy-to-install network connector designed for CAT6 Ethernet cabling. Its full metal shielding reduces electromagnetic interference, while the tool-free design allows fast termination without special crimping tools. The jack integrates an RJ45 port and IDC termination points to support reliable high-speed data transmission in structured cabling installations.

Advantages

The full shielded housing improves immunity to external noise and crosstalk, helping maintain signal integrity in environments with multiple cables or electronic equipment. Tool-free termination simplifies installation and speeds up deployment, eliminating the need for separate punch-down tools. The combination of RJ45 compatibility and IDC contacts ensures consistent electrical contact and supports standard CAT6 performance requirements. The steel-color finish provides mechanical durability and a neutral appearance that fits professional networking panels and faceplates.

Suitable for

• Data center patch panels and horizontal cabling runs
• Office network outlets and wall plates
• Industrial or utility rooms with potential electromagnetic interference
• Small server rooms and telecommunications cabinets

Key specifications

• Category: CAT6 performance for up to 250 MHz
• Shielding: Full metal shield for EMI/RFI protection
• Termination method: Tool-free IDC termination
• Interface: RJ45 female port
• Conductor compatibility: 4-pair twisted pair copper cable (solid and stranded where applicable)
• Mounting: Keystone form factor for standard wall plates and patch panels
• Housing finish: Steel color metal

How to use

Prepare the CAT6 cable by stripping back the outer jacket to expose the four twisted pairs, keeping sufficient conductor length for IDC insertion. Align each conductor according to the color-coded IDC guide on the keystone jack and insert the wires into the corresponding IDC slots. Close or snap the tool-free cover to terminate the conductors securely; the IDC contacts pierce insulation to establish a reliable connection. Insert the keystone module into a compatible wall plate or patch panel until it clicks to lock in place. Plug an RJ45 patch cable into the jack for network connection and test the link with network testing equipment to verify signal integrity and pair continuity.

Recommendations

For optimal performance, use the keystone jack in cabling systems consistent with CAT6 standards and maintain proper cable bend radius and separation from high-voltage cables. Verify shielding continuity by properly grounding the patch panel or outlet frame. Perform certification testing after installation to confirm bandwidth and crosstalk parameters meet expected network requirements.
