Κάρτα δικτύου Supermicro AOC-CTG-i2S

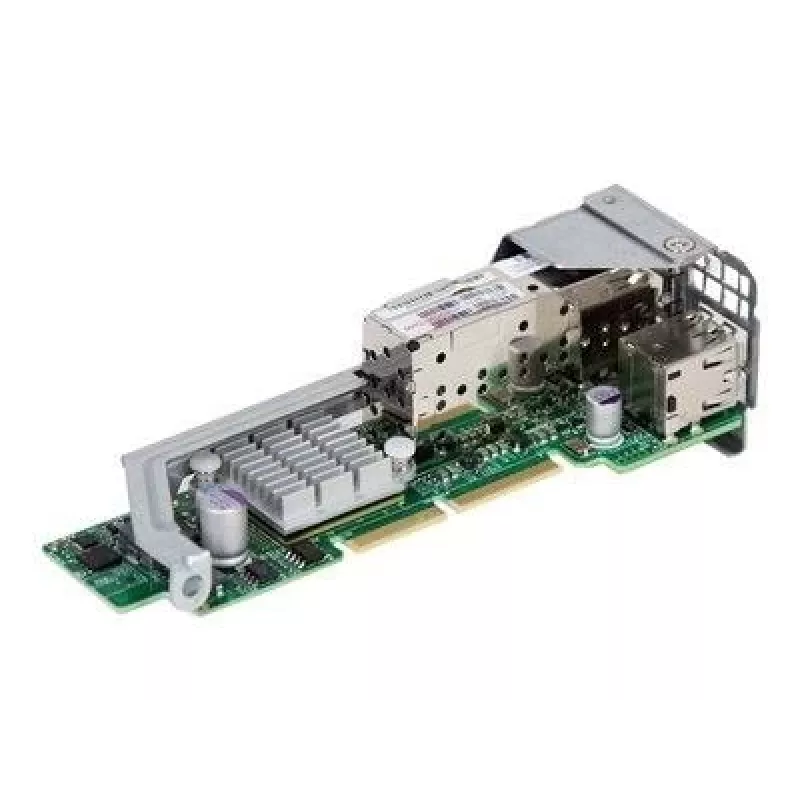

The Supermicro AOC-CTG-i2S is a compact, dual-port 10 Gigabit Ethernet adapter designed for high-density server environments. Based on the Intel 82599ES 10GbE controller and built in a microLP form factor, this PCI Express network card provides scalable, low-latency connectivity for LAN and SAN workloads and fits Supermicro MicroCloud and Twin systems.

Advantages

This network card offers dual SFP+ ports for flexible fiber or DAC connections, PCI Express 2.0 support (up to 5GT/s) and Intel QuickData offload capabilities to improve throughput and reduce CPU load. It includes virtualization features such as VMDq, next-generation VMDq and SR-IOV for efficient VM networking, load balancing across multiple CPUs, iSCSI remote boot and Fibre Channel over Ethernet (FCoE) support. The AOC-CTG-i2S is compatible with most network operating systems and is RoHS compliant.

Suitable for

• High-density server racks and MicroCloud/Twin server platforms
• Virtualized environments requiring SR-IOV or VMDq
• LAN and SAN convergence, including iSCSI and FCoE
• Applications needing low-latency 10GbE links over fiber or DAC cables

Key specifications

• Model: Supermicro AOC-CTG-i2S
• Network controller: Intel 82599ES (10GbE)
• Ports: Dual SFP+
• Interface: PCI Express 2.0 (up to 5GT/s)
• Maximum data rate: 10240 Mbit/s
• Standards: IEEE 802.3ae
• Supported media: DAC twin-axial and LC fiber-optic SR cables
• Compliance: RoHS 6/6

How to use

Install the AOC-CTG-i2S into an available PCI Express slot on a compatible Supermicro MicroCloud, Twin or other server platform supporting a microLP card. Secure the card and connect appropriate SFP+ modules or direct-attach copper (DAC) cables to the dual SFP+ ports. Install or update the server's network drivers and configure network settings, including virtual functions if using SR-IOV or VMDq. Verify link speed and connectivity from the operating system or network management tools.

Recommendations

Use certified SFP+ transceivers or DAC cables compatible with the AOC-CTG-i2S and ensure firmware and driver updates are applied for optimal performance. For virtualized deployments enable SR-IOV or VMDq in both firmware and OS to improve network throughput and CPU utilization. Match cable type (SR fiber vs DAC) to your rack distance and environment.
