Κάρτα διασύνδεσης DeLOCK 64103

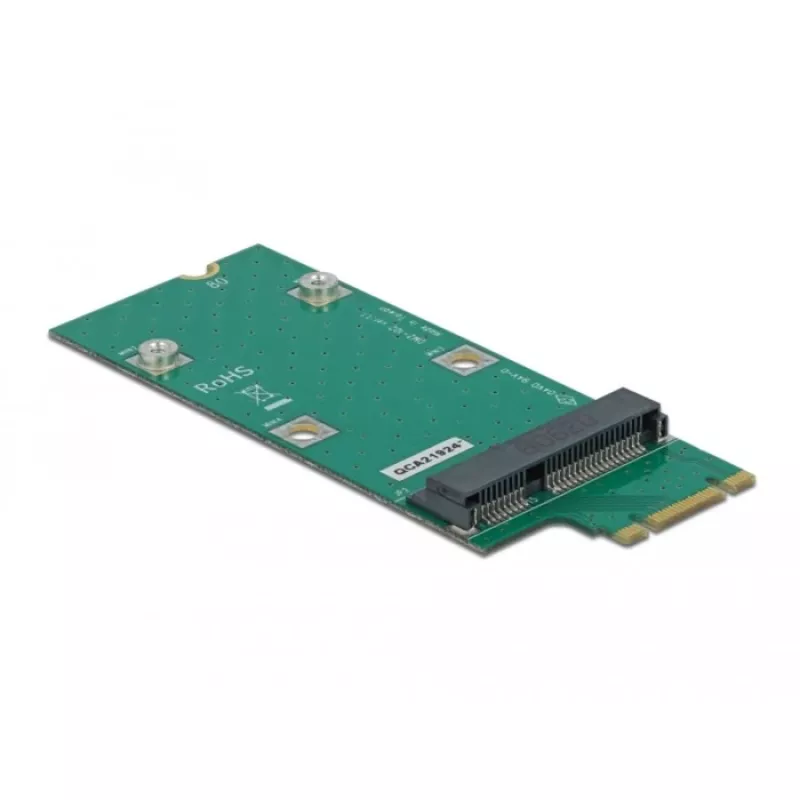

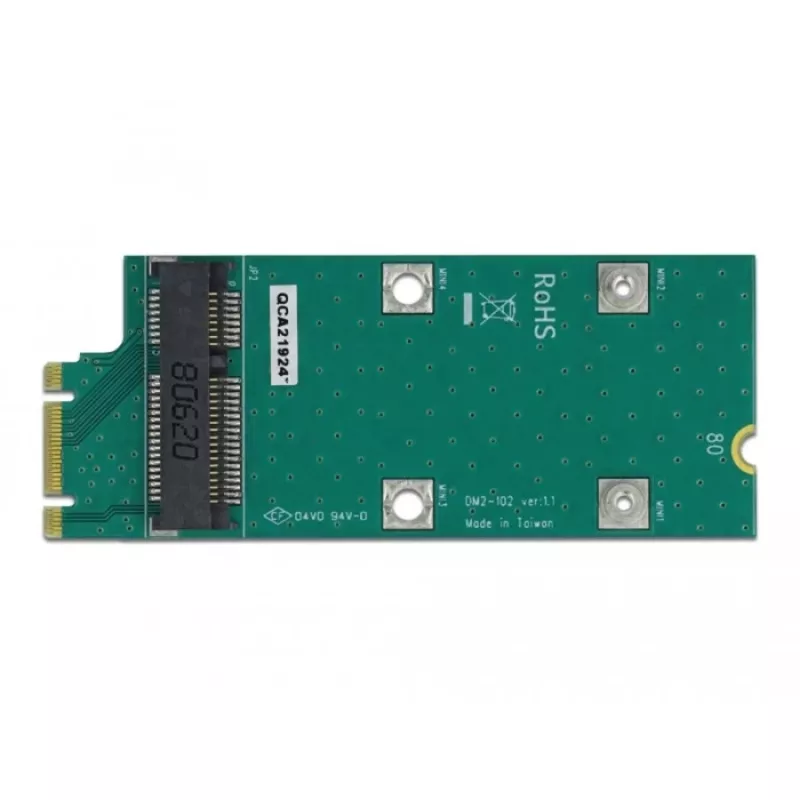

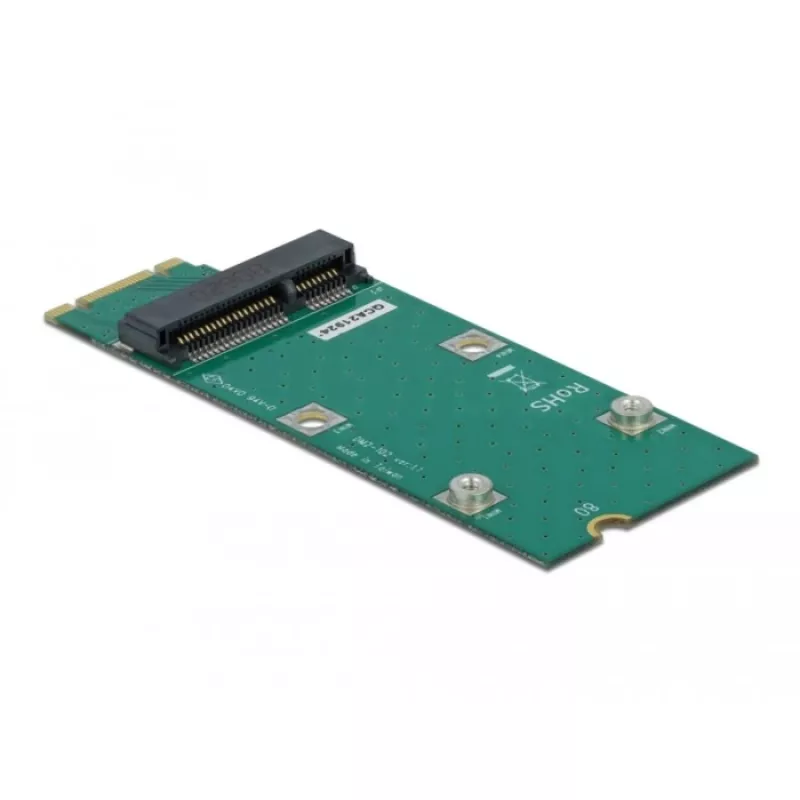

This adapter by Delock enables the connection of an Mini PCIe module in half size or full size format. The adapter can be installed into the system through a M.2 interface. The converter supports modules with USB or PCIe (x1) signal transfer.

Advantages

The DeLOCK 64103 provides a compact internal solution for adding Mini PCIe modules to systems with an M.2 host interface. Its design supports both half-size and full-size Mini PCIe cards and allows signal transfer via USB or PCIe x1. The card's small dimensions and standard form factor make it compatible with a range of systems where internal expansion is required.

Suitable for

• Adding Mini PCIe wireless, storage or I/O modules to systems with an M.2 slot
• Upgrading compact desktops, industrial PCs or embedded systems
• Enabling internal connectivity options where space is limited

Key specifications

• Brand: DELOCK
• Model: 64103
• Host interface: M.2
• Output interface: Mini PCIe (supports half-size and full-size modules)
• Signal support: USB and PCIe (x1)
• Internal: Yes
• Dimensions (W x D x H): 31.5 x 80 x 4.7 mm
• Colour: Green
• EAN: 4043619641031

How to use

Insert the DeLOCK 64103 into an available M.2 host slot on the motherboard following the host board manufacturer’s instructions. Mount the Mini PCIe module (half-size or full-size) onto the adapter and secure it according to the module’s mounting method. Ensure proper alignment of the connector and verify that the system supports USB or PCIe x1 signaling for the chosen module. After installation, power on the system and install any required drivers for the Mini PCIe module.

Recommendations

Install the adapter in a powered-off system and handle modules with ESD precautions. Verify clearance inside the chassis for the adapter’s dimensions and confirm host M.2 keying and signal compatibility before installation.
