Κάρτα διασύνδεσης DeLOCK 90401

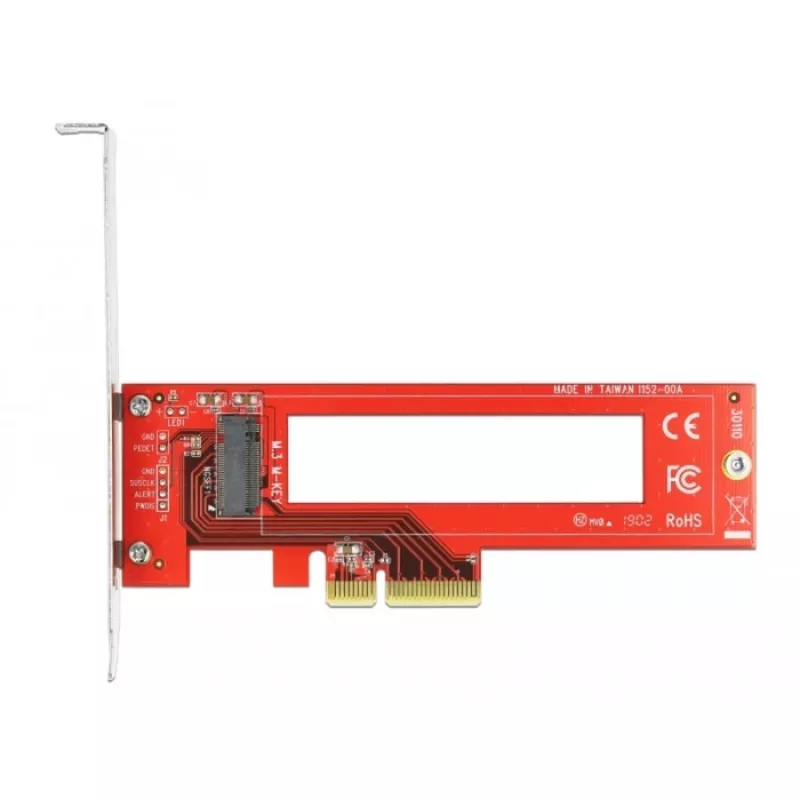

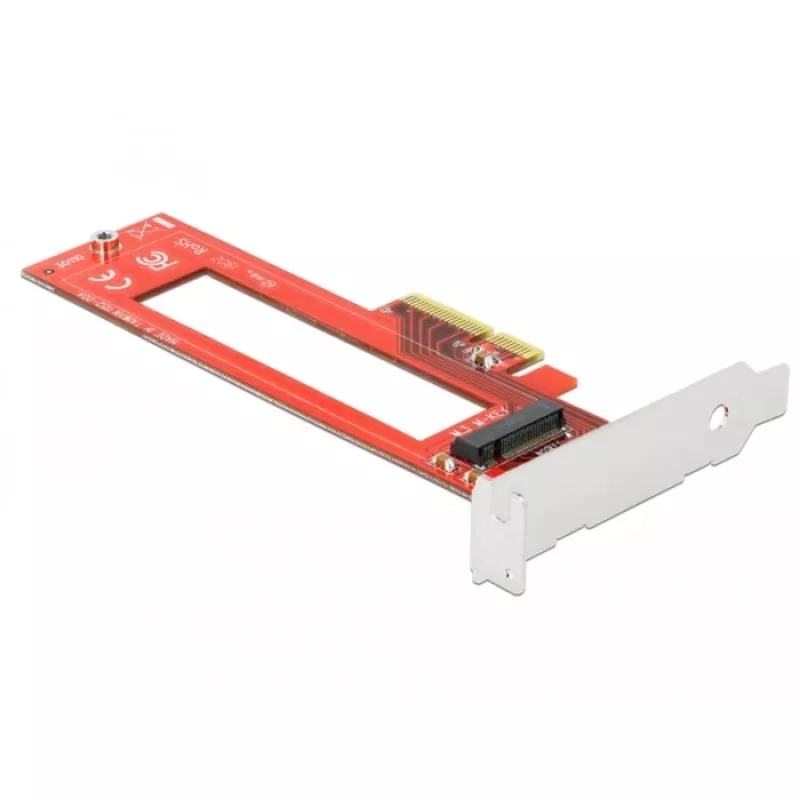

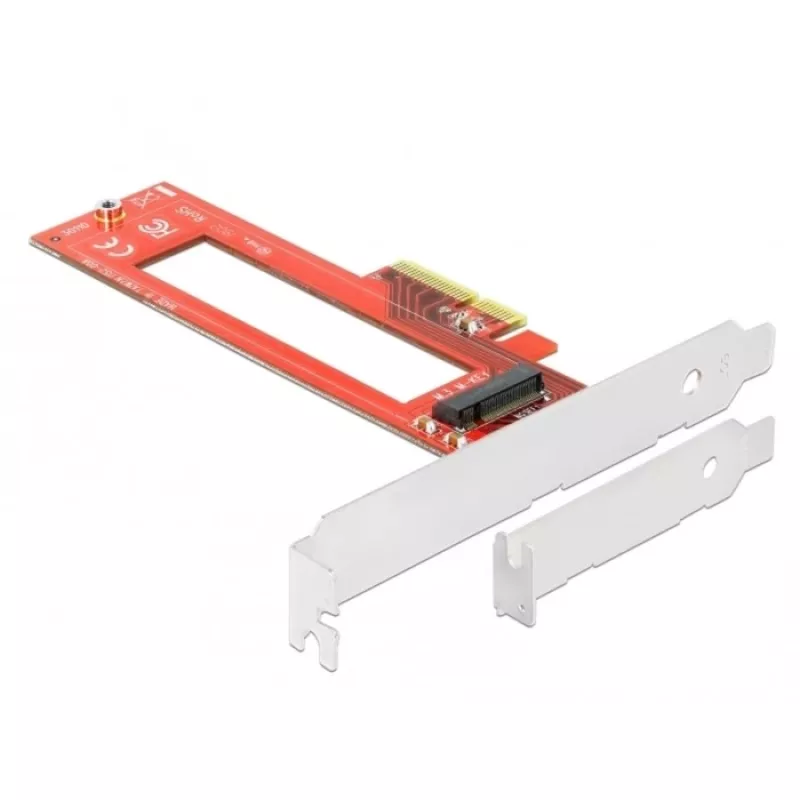

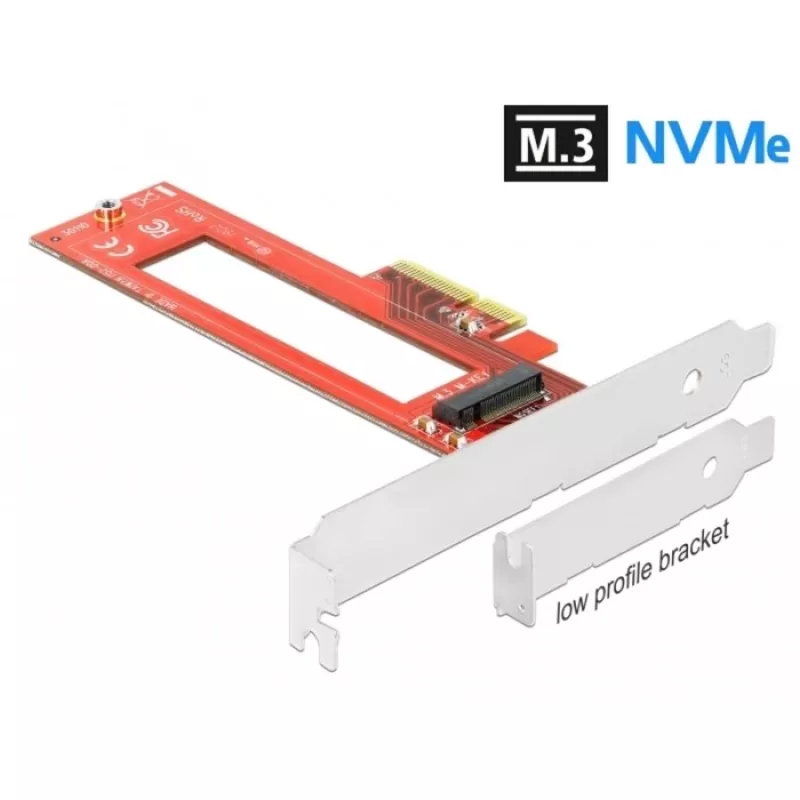

This PCI Express interface card from DELOCK provides one M.3 / NF1 (NGSFF) slot for internal installation in a PCIe host. It accepts one M.3 module with a length of up to 110 mm and a width of 30 mm and follows the PCIe 3.0 expansion card standard. The PCB includes a recessed area under the M.3 device to allow mounting of an optional heatsink on the underside of the SSD.

Advantages

The card offers a compact solution to add an M.3 / NF1 (NGSFF) device to a desktop system via a PCIe slot. Its red PCB and PCIe 3.0 compatibility ensure straightforward integration with compatible motherboards. The recessed PCB area improves thermal management by enabling an additional heatsink to be attached to the bottom of the installed SSD.

Suitable for

• Adding an M.3 / NF1 (NGSFF) SSD to a desktop PC
• Systems with an available PCIe slot requiring internal M.3 expansion
• Setups where bottom-side SSD cooling with a heatsink is desired

Key specifications

• Brand: DELOCK
• Model / MPN: 90401
• EAN: 4043619904013
• Host interface: PCIe (PCIe 3.0 expansion card standard)
• Output interface: M.3 / NF1 (NGSFF)
• Supported M.3 module size: 110 mm x 30 mm
• Internal installation: yes
• Product colour: red

How to use

Install the card into an available PCIe slot on the motherboard following standard anti-static precautions. Secure the card in the chassis and insert a compatible M.3 / NF1 (NGSFF) module (110 mm x 30 mm) into the slot. If additional cooling is required, mount an appropriate heatsink to the underside of the SSD in the recessed area of the PCB before securing the drive. Reconnect power and boot the system to verify the device is detected by the motherboard firmware or operating system.

Recommendations

Use the card in a desktop chassis with sufficient clearance for a 110 mm x 30 mm M.3 module. If high sustained SSD performance is expected, attach a suitable heatsink to the bottom of the SSD in the PCB recess to improve thermal dissipation. Ensure the motherboard and operating system support the chosen M.3 / NF1 device.
