Καλώδιο S-VGA InLine 15 HD γκρι αρσενικό/αρσενικό 1,5 m

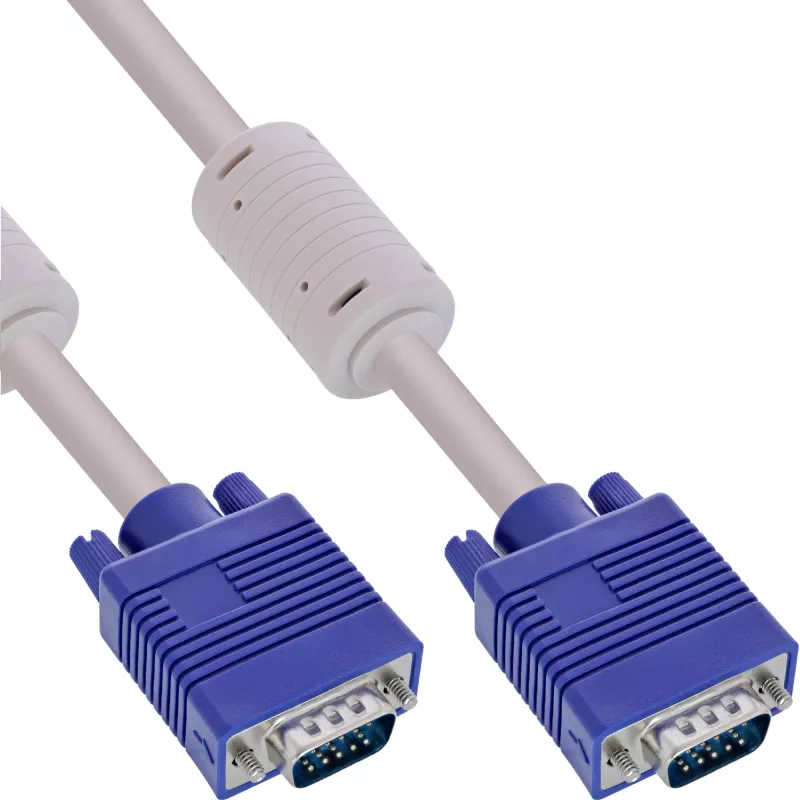

The InLine S-VGA Cable 17715 is a 1.5 m male-to-male VGA (D-Sub) cable designed for analogue video signal transmission between computers, monitors, projectors and other VGA-equipped devices. It uses three coaxial lines for RGB signals plus seven data lines and features 15-pin SVGA connectors with 1:1 wiring (PIN 9 not connected). The connectors are blue in accordance with the PC99 standard for easy port identification.

Advantages

Double shielding and individual single-shielded coaxial conductors for the RGB channels reduce electromagnetic interference and help preserve image quality. The standard 15-pin SVGA connectors provide broad compatibility with legacy and current VGA ports. A 1.5 m length offers a balance between desk neatness and reach for typical workstation and meeting-room setups.

Suitable for

• Connecting desktop PCs to VGA monitors
• Linking laptops or graphics sources to projectors with VGA input
• Replacing or extending existing VGA leads in office and classroom environments

Key specifications

• Cable length: 1.5 m
• Connectors: VGA (D-Sub) 15-pin male on both ends
• Wiring: 3 coaxial RGB lines + 7 data lines, 1:1 pin assignment (PIN 9 not connected)
• Colour: Beige housing with blue connector inserts (PC99)

How to use

Connect one 15-pin VGA plug to the VGA output of your computer or graphics source and the other plug to the VGA input of the monitor or projector. Tighten the connector thumbscrews to secure the connection and reduce the risk of signal loss. If your device lacks a VGA port, use an appropriate active adapter compatible with VGA signals.

Recommendations

For best video quality, avoid running the VGA cable parallel to power cords and long unshielded cable runs. Use the cable at its intended length of 1.5 m to minimise signal degradation; for longer distances consider a signal amplifier or a digital connection (HDMI/DisplayPort) if supported.
