InLine καλώδιο επέκτασης S-VGA 15 HD αρσενικό/θηλυκό μαύρο 5m

Reliable VGA extension:1:1 interconnected cable with HD15 plug to HD15 socket for clear signal transmission.
High-quality signal quality:Three coaxial cables (RGB) and seven data cores ensure stable image transmission.
Effective protection against interference:Overall and individual shielding and ferrite core reduce electromagnetic interference.
Easy installation:Color-coded die-cast connectors in accordance with the PC99 standard support error-free cabling.
Rugged workmanship:The robust connector design and precise pin assignment enable long-lasting use.

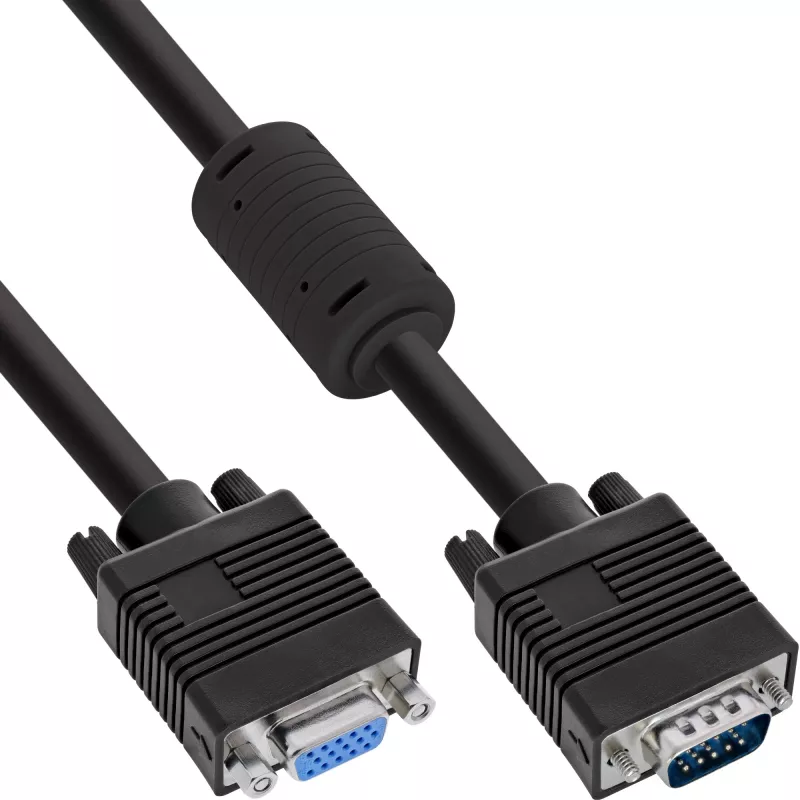

The InLine® S-VGA extension with HD15 plug to HD15 socket is a professional solution for extending analog image signals between monitors, projectors and computers. It provides a reliable connection for devices with a VGA connection, especially in presentation environments, educational institutions and office installations.
The cable has three single-shielded coaxial lines for RGB signal transmission and seven additional data lines. Thanks to the double shielding - consisting of overall and individual shielding - and the integrated ferrite core, the signal is effectively protected against electromagnetic interference.
The 1:1 pin assignment without PIN 9 ensures standard-compliant and stable transmission. The blue coloring of the die-cast connectors complies with the PC99 standard and makes it easier to correctly identify the connection ports. The robust design ensures high mechanical resilience even with frequent use.

Plug type: HD15 plug to HD15 socket
Pin assignment: 1:1 (without PIN 9)
Shielding: Overall and individual shielding
Cable construction: 3x coax (RGB) + 7x data cores
Special feature: ferrite core, PC99 color coding
Color: black

InLine S-VGA Extension Cable 15 HD male / female black 5m. Cable length: 5 m, Connector 1: VGA (D-Sub), Connector 2: VGA (D-Sub). Weight: 441 g, Package volume: 2000 cm³. Package width: 200 mm, Package depth: 245 mm, Package height: 40 mm

How to use

Connect the male VGA plug of the extension cable into the VGA output of your computer or source device and secure the screws. Plug the female VGA end to the monitor or projector cable and tighten the fixing screws to ensure a stable connection. Route the cable to avoid sharp bends and keep it away from strong sources of electromagnetic interference for best signal integrity.

Recommendations

For optimal performance, use the cable for resolutions and distances appropriate to analog VGA transmission; avoid combining with adapters or converters that may degrade signal quality. Inspect connector pins before use and replace the cable if shielding or plugs are damaged.
