Καλώδιο patch DIGITUS CAT6 U-UTP λεπτό 0,3 m, κόκκινο

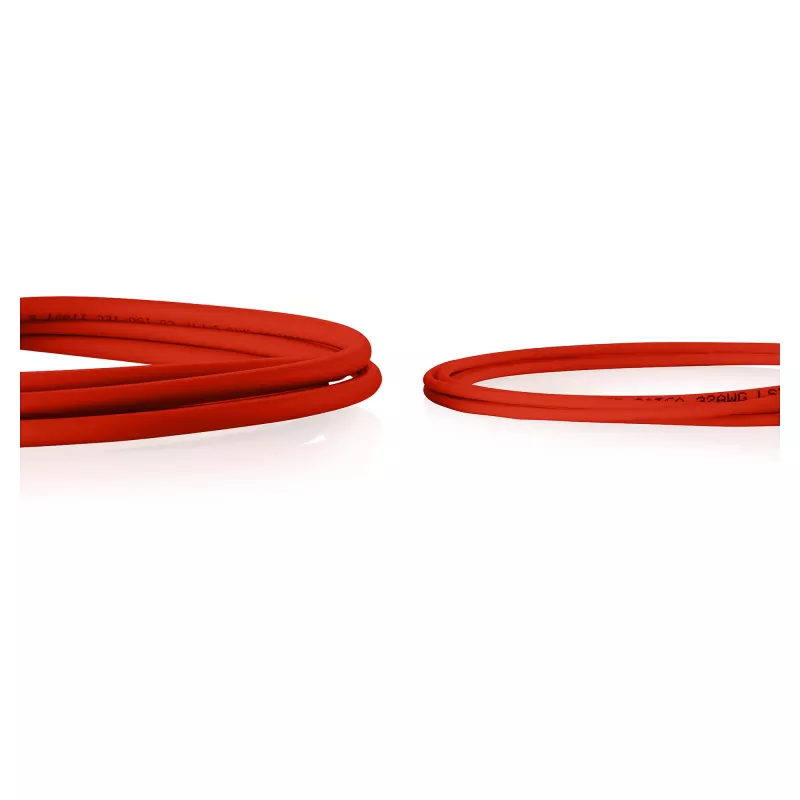

DIGITUS CAT6 U-UTP Slim 0.3 m, red is a slim unshielded twisted-pair patch cable designed for short Ethernet connections in racks, patch panels and network devices. With a 0.3 m length and a reduced outer diameter of approximately 2.7 mm, the cable is intended for space-saving routing in high-density cabling environments while supporting Gigabit Ethernet performance up to 1 Gbit/s and frequencies up to 250 MHz. The cable uses stranded AWG 32/7 bare copper conductors, HD-PE insulation and an RJ45 plug with molded strain relief and locking lever protection.

Advantages

The slim design reduces bulk in cable runs and simplifies routing in tight spaces without sacrificing CAT6 performance. Stranded copper conductors and a flexible jacket increase installation convenience and durability in patching scenarios. The cable supports PoE and PoE+ applications due to its pure copper conductors, meets relevant international cabling standards for CAT6 and is equipped with molded anti-kink sleeves and strain relief to protect connectors during repeated use.

Suitable for

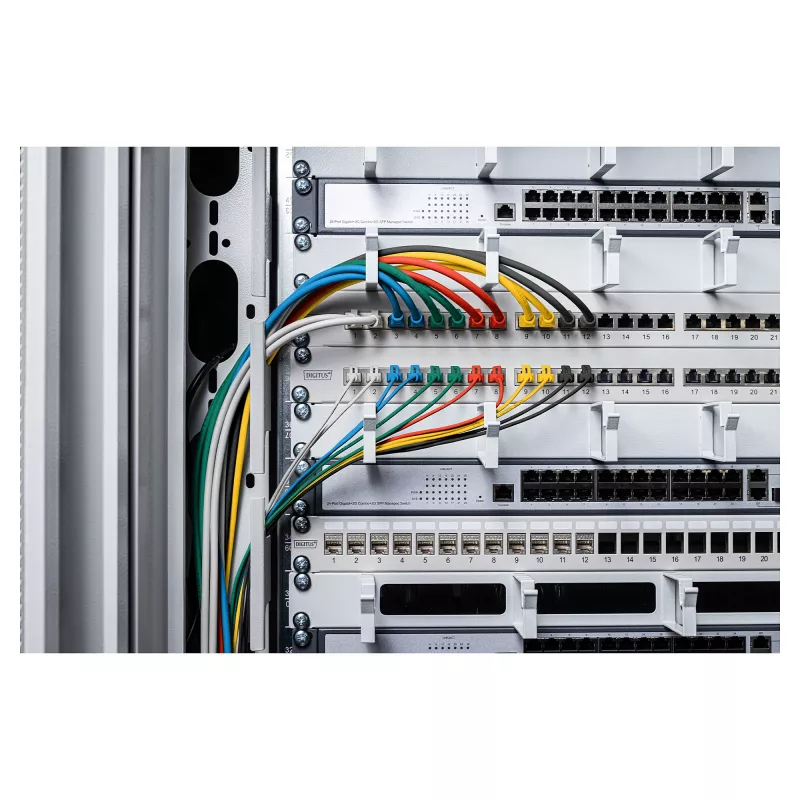

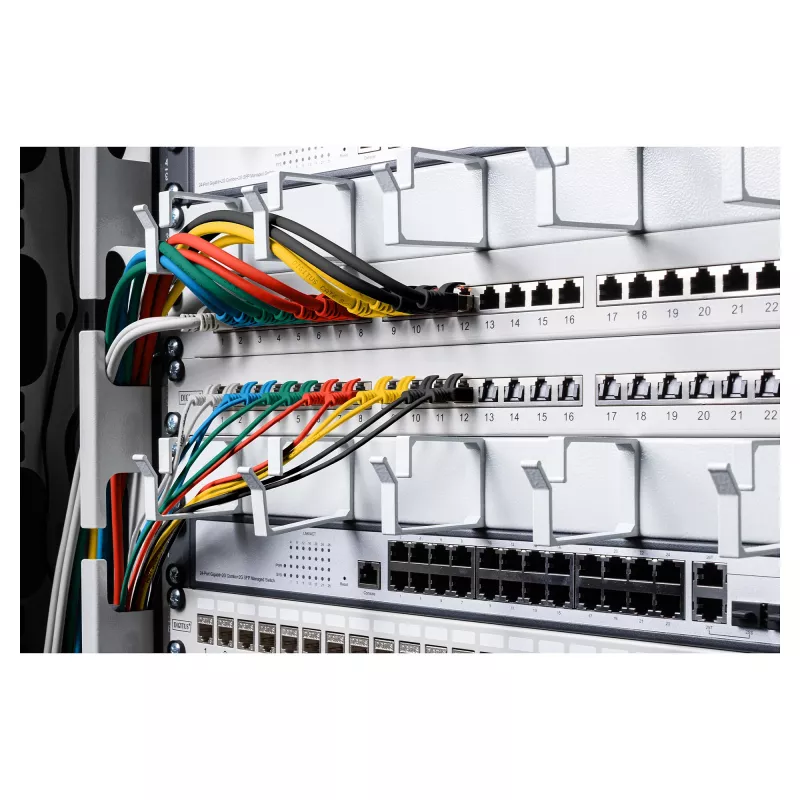

• Short patch connections between switches, patch panels and servers
• High-density racks and cabinets where space is limited
• Office and home network installations requiring Gigabit Ethernet
• PoE and PoE+ powered devices such as access points and IP phones

Key specifications

• Cable category: Cat6 U-UTP (unshielded twisted pair)
• Length: 0.3 m
• Outer diameter: approx. 2.7 mm ± 0.15 mm
• Conductors: stranded bare copper AWG 32/7
• Insulation: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Transmission frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)

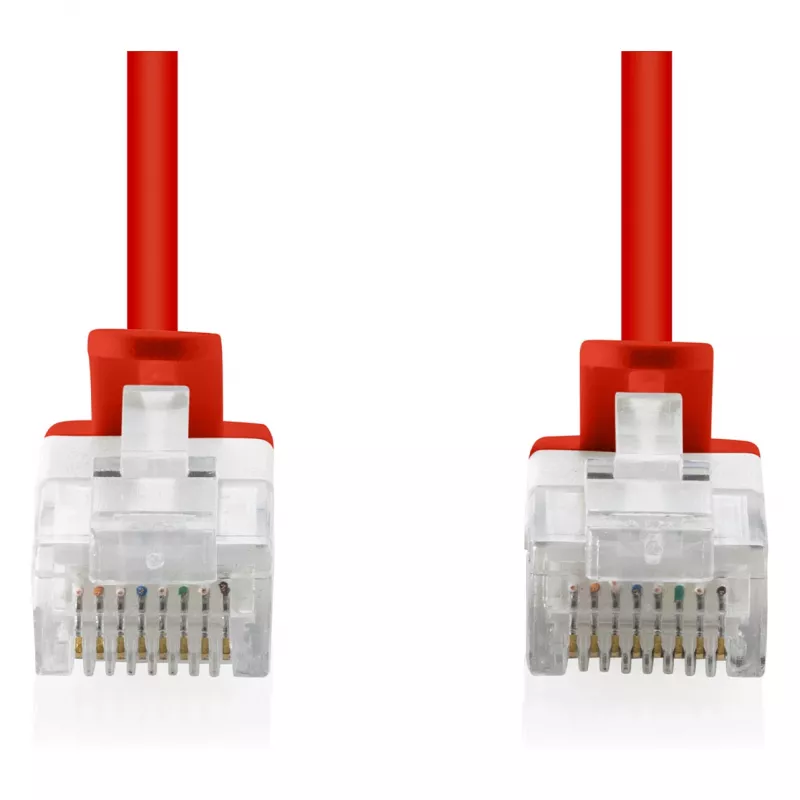

• Plug type: RJ45 with molded strain relief and locking lever protection
• Bending radius: 15 × outer diameter
• Operating temperature: -20 °C to +60 °C
• Flame retardancy and smoke emission: IEC 60332-1 and IEC 61034
• Typical supported applications: 10BASE-T, 100BASE-TX, 1000BASE-T
• Service life (mating cycles): typically 750 mating cycles

How to use

Insert the RJ45 plugs into the corresponding Ethernet ports on network devices, switches or patch panels until the locking lever engages. Route the slim cable through cable management channels, behind equipment or along patch panels to minimise clutter; maintain the recommended bending radius and avoid sharp kinks. For PoE devices, ensure connected equipment and power sourcing equipment comply with PoE or PoE+ standards. When unplugging, press the locking lever and pull on the booted connector, not the cable jacket, to avoid damaging the conductor termination.

Recommendations

Use the DIGITUS CAT6 U-UTP Slim cable for short patching runs and dense installations where space and cable management are priorities; avoid installation scenarios requiring shielded cables or runs longer than typical patch lengths where solid-conductor permanent links are preferred.
