Καλώδιο οπτικών ινών simplex InLine, FTTH, LC/APC8° σε LC/APC8° 9/125µm OS2 20m

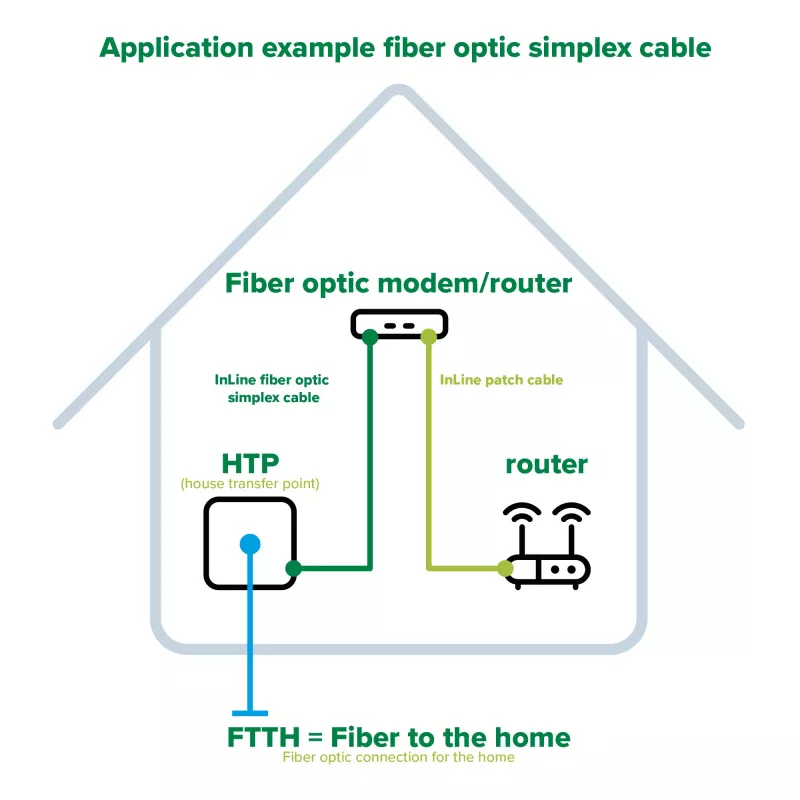

Telecommunications companies such as Vodafone, Deutsche Glasfaser and Telekom are increasingly enabling fibre connections for private households in Germany. Fibre to the home (FTTH) cables from InLine connect the house transfer point with the fibre optic modem and ensure a reliable fibre optic connection in your home.
Unfortunately, pre-installed cables from providers are often of poor quality and sometimes only 1.6mm thick. If the cable breaks, even the fastest fibre optic connection will not help. InLine FTTH cables are 3mm thick and have a particularly stable structure. Additional reinforcement in the form of a stainless steel spiral tube guarantees a long-term, reliable fibre optic connection in private homes. The neutral sheath colour white is suitable for inconspicuous installation in visible living areas. Different lengths up to 50m allow you to remain flexible, even if the position of the modem changes.

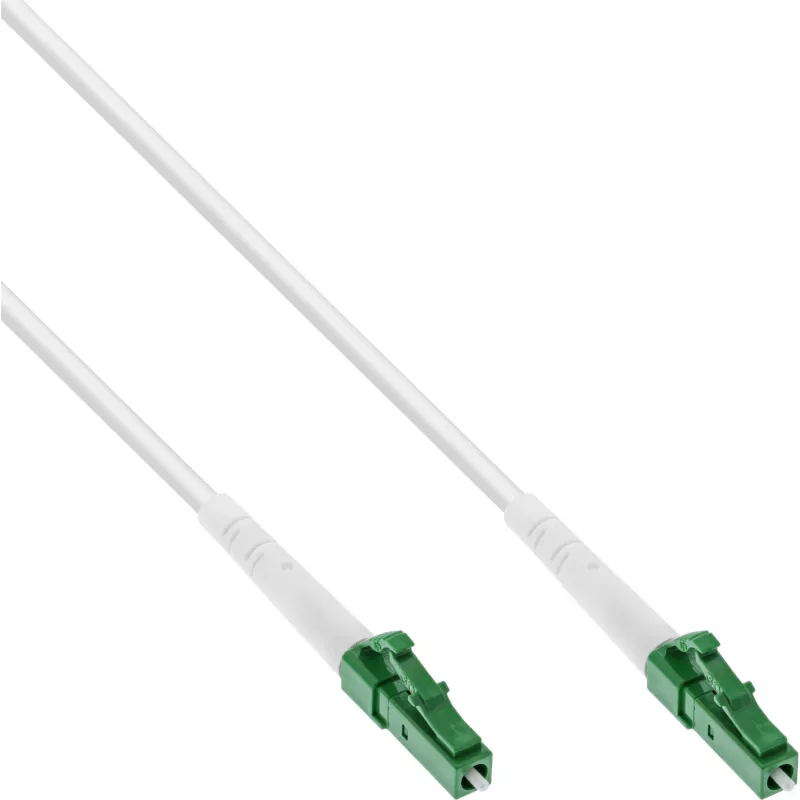

InLine Fiber Optical Simplex Cable, FTTH, LC/APC8° to LC/APC8° 9/125µm OS2 20m. Cable length: 20 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm

How to use

Route the 20 m InLine LC/APC to LC/APC patch cable between the FTTH wall outlet or distribution box and the optical device (ONT, OLT, media converter or switch). Before connecting, inspect connector endfaces for cleanliness and remove dust with appropriate fibre cleaning tools if necessary. Insert each LC connector into the corresponding LC/APC adapter or port until it clicks; ensure the 8° APC orientation matches the adapter. Avoid tight bends and maintain the recommended minimum bend radius for single‑mode cable to prevent attenuation increase or physical damage. If required, verify link performance with the supplied test report or run optical loss measurements after installation.

Recommendations

Store and install the cable in dry indoor environments, keep bend radii above manufacturer recommendations, and use dust caps when connectors are not mated. For permanent or outdoor runs, select a cable type rated for those conditions rather than this indoor armoured FTTH patch cable.
