Καλώδιο οπτικών ινών EFB Elektronik O0319FT 3 m

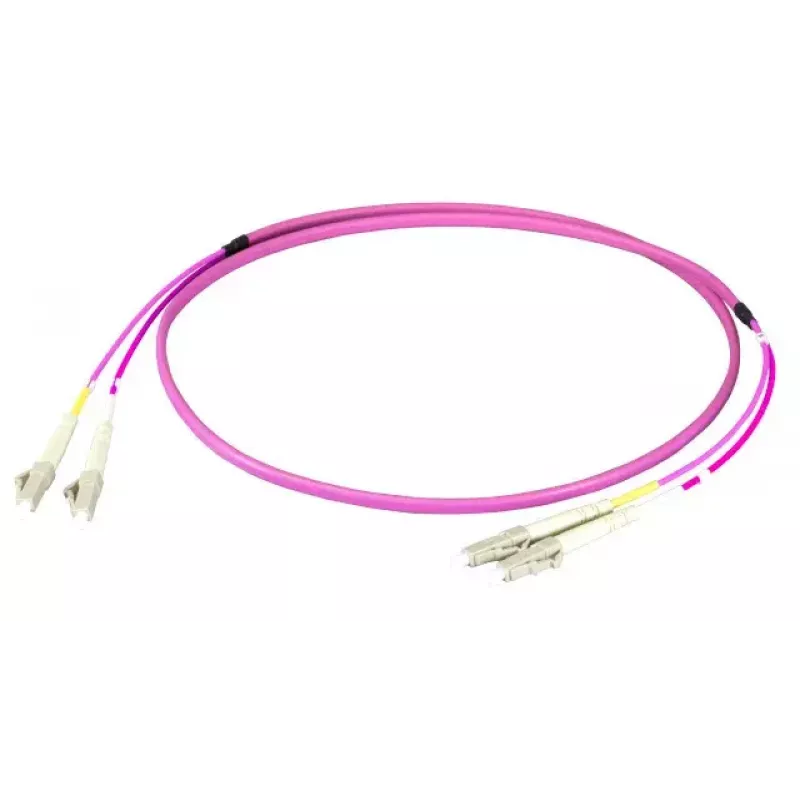

The EFB Elektronik O0319FT 3 m fibre optic cable is an OM4 duplex jumper with LC connectors on both ends, designed for full-duplex data transmission. The cable has a 50 µm core diameter and an additional outer jacket made from LSZH material, which increases stability and reduces smoke and toxic gas emission in case of fire. It is intended for high-speed networking environments that require reliable optical links over short to medium distances.

Advantages

The flat twin duplex design with an added outer jacket provides improved mechanical stability compared to standard jumpers and simplifies installation. LC connectors on both ends enable straightforward connection to compatible transceivers and equipment. The OM4 multimode fibre supports higher bandwidth and data rates for modern network applications, while the LSZH jacket offers enhanced safety in enclosed or public spaces.

Suitable for

• Data center patching and fibre optic patch panels
• High-speed LAN and enterprise network connections
• Short to medium distance multimode transmissions (OM4)

Key specifications

• Length: 3 m
• Fibre type: OM4 multimode
• Core diameter: 50 µm
• Connector type: LC to LC, duplex (flat twin)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Brand: EFB Elektronik
• Manufacturer part number (MPN): O0319FT.3
• EAN: 4049759157623

How to use

Connect each LC connector to the corresponding LC port on your transceivers, patch panel or networking equipment, ensuring correct orientation for duplex transmission. Route the cable along existing cable management paths, avoiding sharp bends and excessive tension. Verify optical connections with suitable test equipment or by checking link status indicators on network devices.

Recommendations

The cable is suitable for indoor installation in data centers and offices; use cable management accessories to maintain bend radius and protect the LSZH jacket. Do not expose the cable to prolonged direct sunlight or outdoor elements unless additional outdoor-rated protection is applied.
