Καλώδιο Gender Changer InLine 69927P — USB-Adapter Gender Changer

USB-A connector for outdoor use:The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating.
Reliable data transfer:Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications.
Power supply included:Charging function with 5 V / 2 A – suitable for live USB connections.
Compact design with M20 thread:Enables integration into standard housings and distribution systems.
Flexible cable compatibility: Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal.

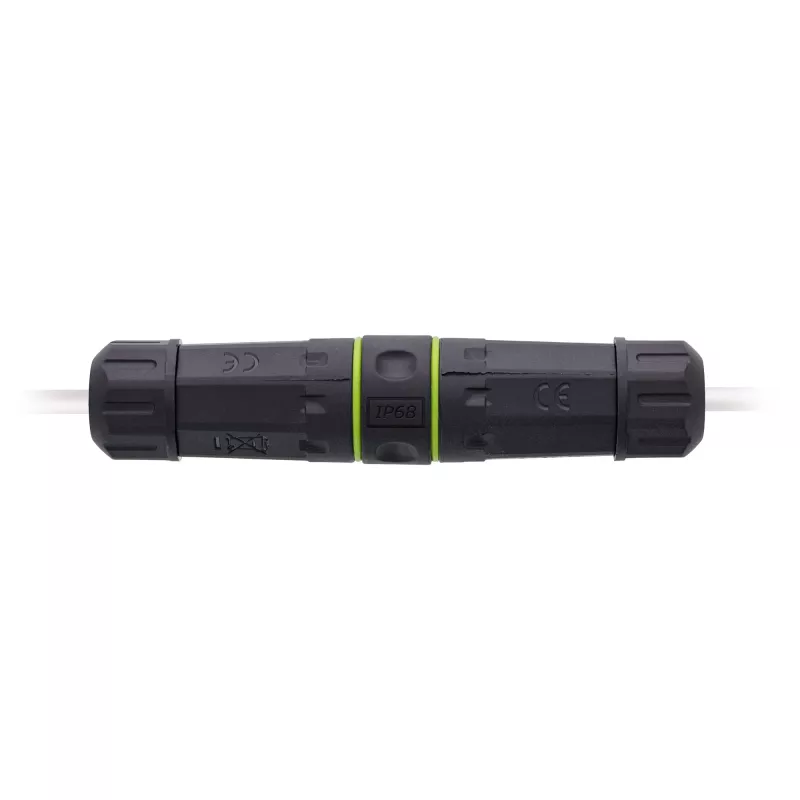

The InLine® USB-A cable coupling with IP68 protection is the robust solution for shielded USB connections in harsh environments. It connects two USB-A cables securely and permanently – ideal for industrial applications, outdoor areas, or measurement and control technology.

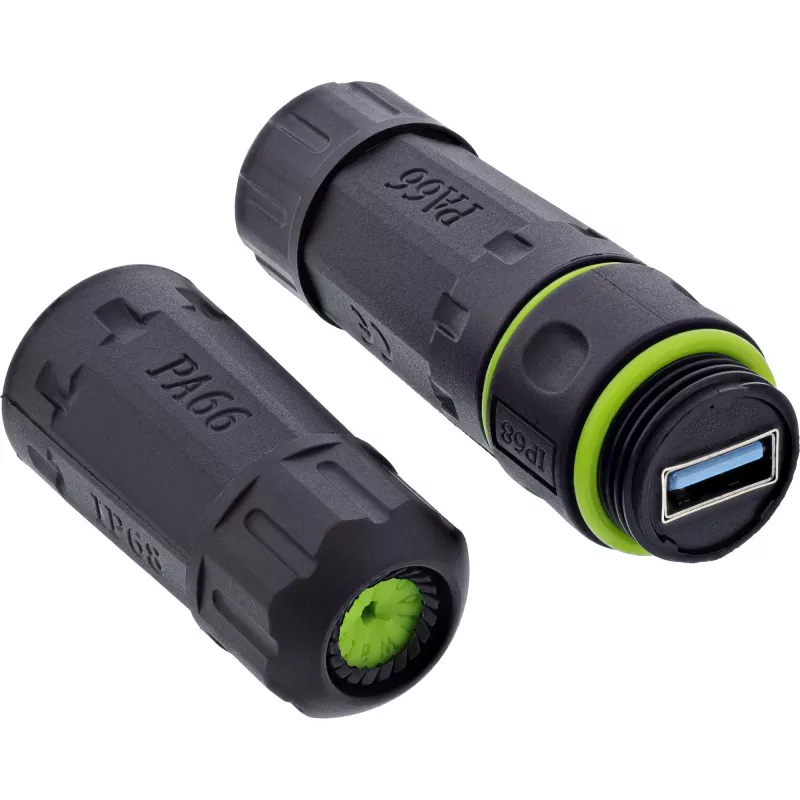

The coupling supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The robust PA66 housing reliably protects the interface from dust, water, and mechanical stress.
Thanks to its M20 thread, the coupler can be integrated into common housing openings or distribution systems. A flexible silicone seal ensures reliable sealing for cable diameters from 1.5 to 4.5 mm and 4.5 to 7.5 mm. Installation is tool-free and is done by simply screwing it in place.
Whether for connecting embedded systems, supply units, or peripheral devices, the InLine® USB-A coupler ensures that your USB connection is permanently secured and protected.

Material: Nylon (PA66)
Thread size: M20
Module: USB-A female/female
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: yes
Protection rating: IP68
Temperature resistance: -25 °C to +105 °C
Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

InLine 69927P. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 25 mm, Depth: 125 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 30 mm

How to use

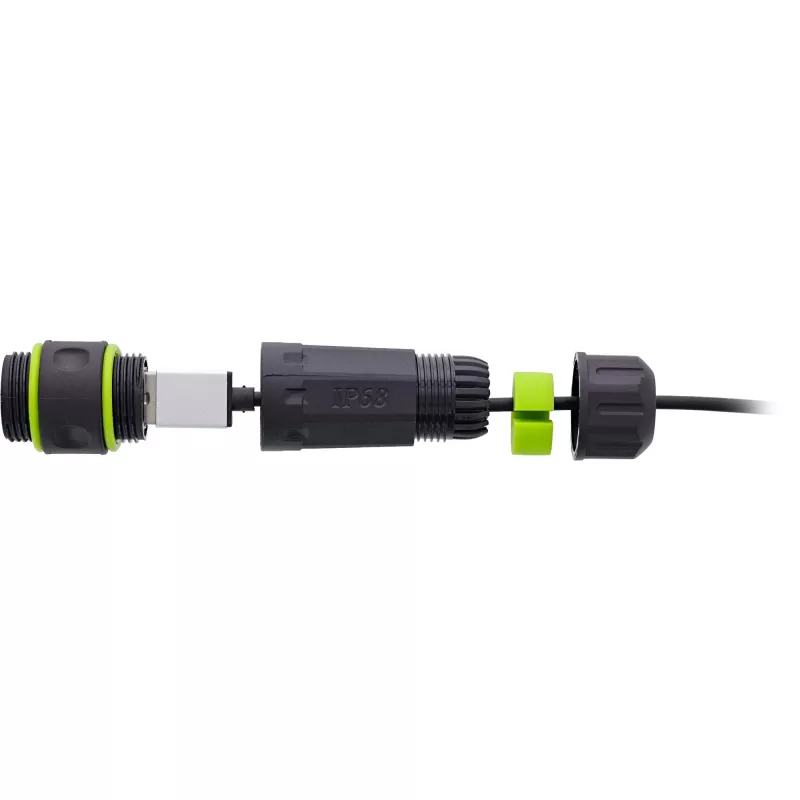

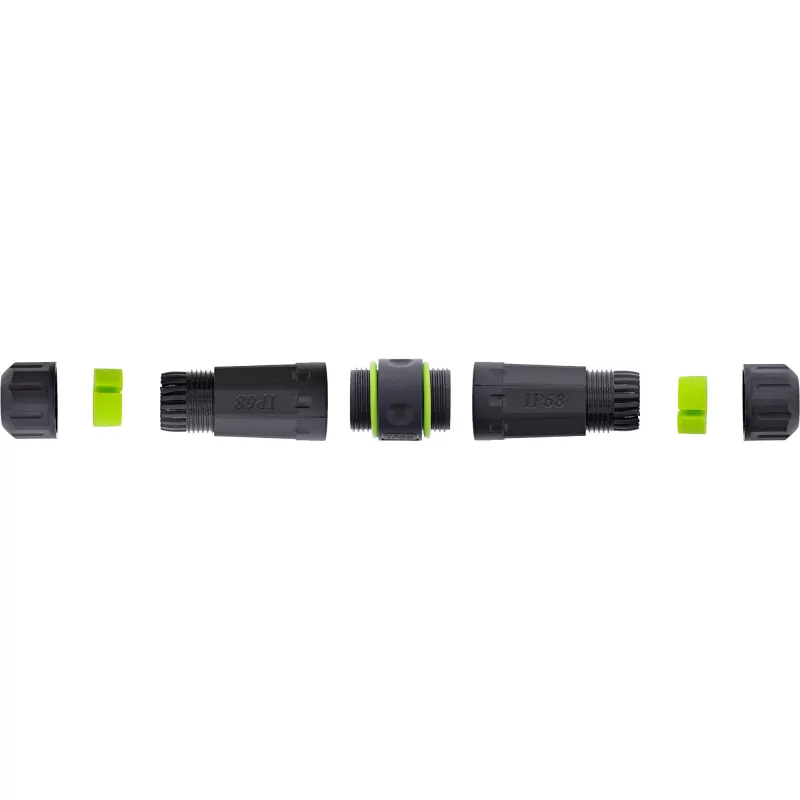

Prepare the two USB-A cables to be joined, ensuring the cable diameters match one of the supported ranges. Insert the cables through the silicone seal and engage the female USB-A modules. Screw the coupler into the mounting opening or housing using the M20 thread until the silicone seal compresses and creates a watertight connection. No special tools are required for installation. After assembly, verify data connection and charging function as needed.

Recommendations

For reliable long-term performance, use the coupler in environments within the specified temperature range and ensure proper cable routing to avoid excessive bending or mechanical strain at the connection. Regularly inspect seals for damage if used in harsh outdoor conditions.
