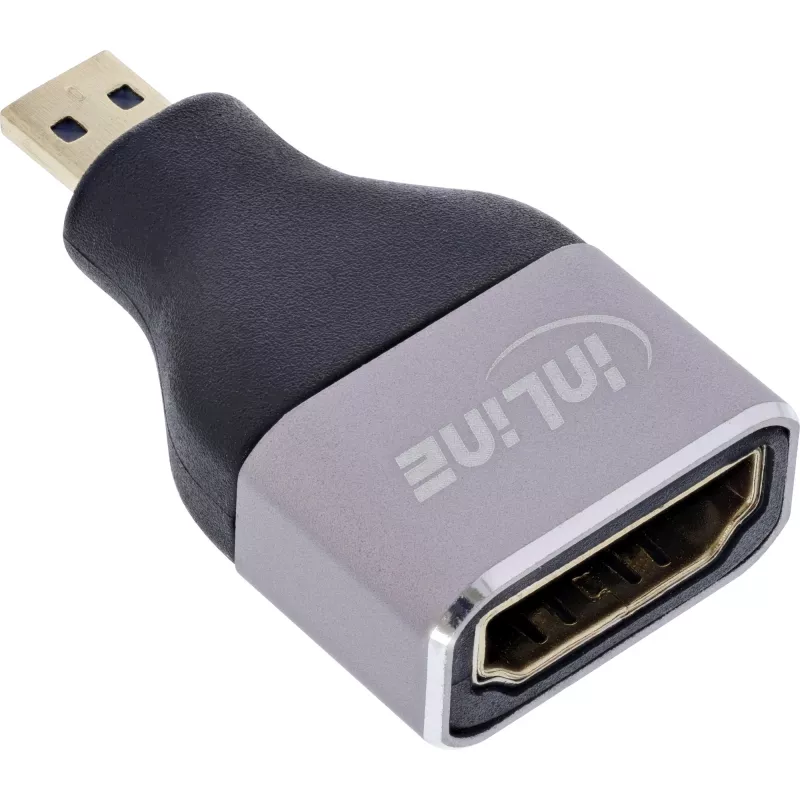

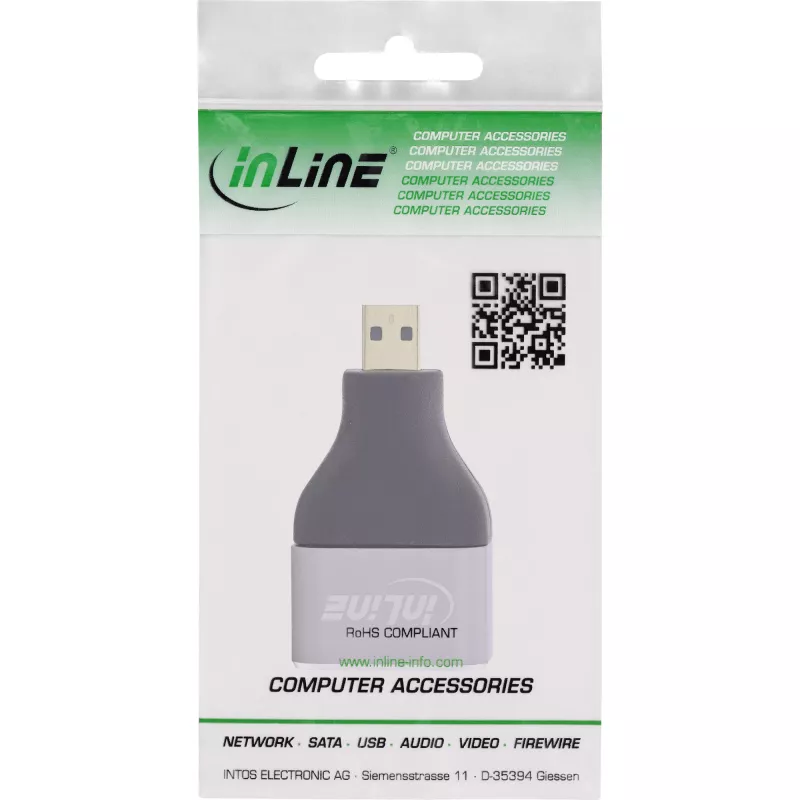

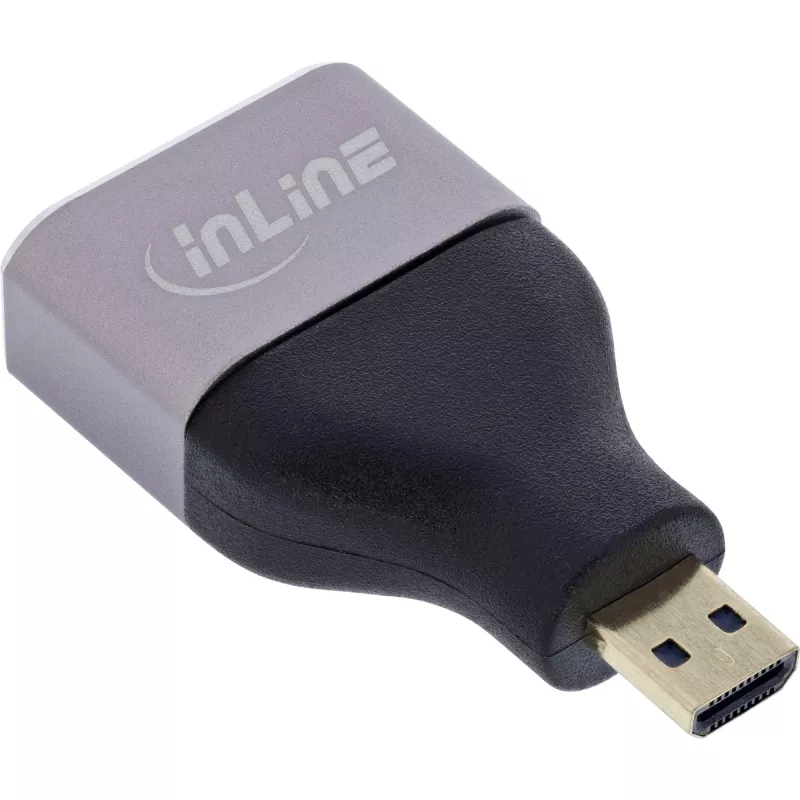

InLine 17991B Αντάπτορας καλωδίου HDMI A σε Micro HDMI D Μαύρο Γκρι

Reliable signal transmission:The 1:1 pin assignment enables direct transmission of audio and video signals without conversion.
Suitable for high-resolution applications:Supports UHD 8K and has been successfully tested in practice with 3840x2160 at 120 Hz and 4:4:4 8 bits.
Durable contact technology:Gold-plated contacts ensure stable transitions and reduce electrical resistance.
Robust construction:The aluminum housing protects the internal components and is suitable for demanding installations.
Flexible integration:Ideal for connecting or extending HDMI connections between micro HDMI sources and standard HDMI infrastructures.

The HDMI adapter reliably connects devices with micro HDMI outputs to existing HDMI infrastructure. The HDMI A socket on one side and the micro HDMI D plug on the other enable direct signal transmission without the need for additional active components. The 1:1 pin assignment ensures unadulterated transmission of digital audio and video signals.
The adapter supports resolutions up to UHD 8K and has been successfully tested with 3840x2160 at 120 Hz and 4:4:4 8 bits. This makes it suitable for installations that require high image quality and stable signal paths. The gold-plated contacts reduce contact resistance and contribute to a permanently reliable connection.
The robust aluminum housing protects the contact surfaces and ensures high mechanical stability. The adapter can be flexibly integrated into both stationary and mobile AV setups. The recommended total length of the signal path is up to 1.5 meters and can reach a maximum of 2 meters.
With its compact design, the adapter offers a reliable solution for various professional applications in which micro HDMI signals need to be integrated into existing HDMI environments.

Audio: Yes
Housing material: Aluminum
Side A: HDMI A socket
Side B: Micro HDMI D plug
Signal type: Audio/video
Type: Gold-plated contacts
Contact resistance: 3 ohms
Insulation resistance: DC 300V 10M ohms
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +80 °C
Recommended total length: up to 1.5 m, maximum 2 m
Dimensions: 19.3 mm x 12 mm x 10 mm
Outer jacket: PVC black

InLine 17991B. Connector 1: HDMI A, Connector 2: Micro HDMI D, Connector contacts plating: Gold. Product colour: Black, Grey

How to use

Insert the Micro HDMI D male end into the Micro HDMI port on your device and connect an HDMI A cable to the HDMI A female end. Ensure both connectors are fully seated to establish a secure connection. The adapter does not require power or configuration and can be left in place when not in use.

Recommendations

For best results, use high-quality HDMI cables and avoid excessive bending or strain at the connector joints. Inspect contacts periodically for debris and clean gently if needed. This adapter is intended for signal conversion between HDMI A and Micro HDMI D; compatibility depends on the capabilities of the connected devices and cables.
