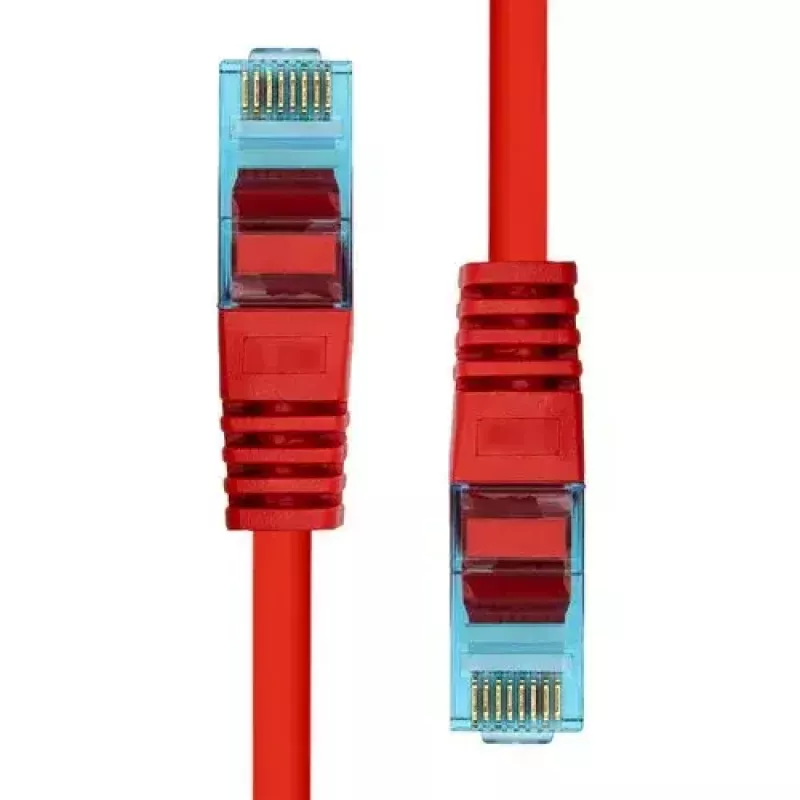

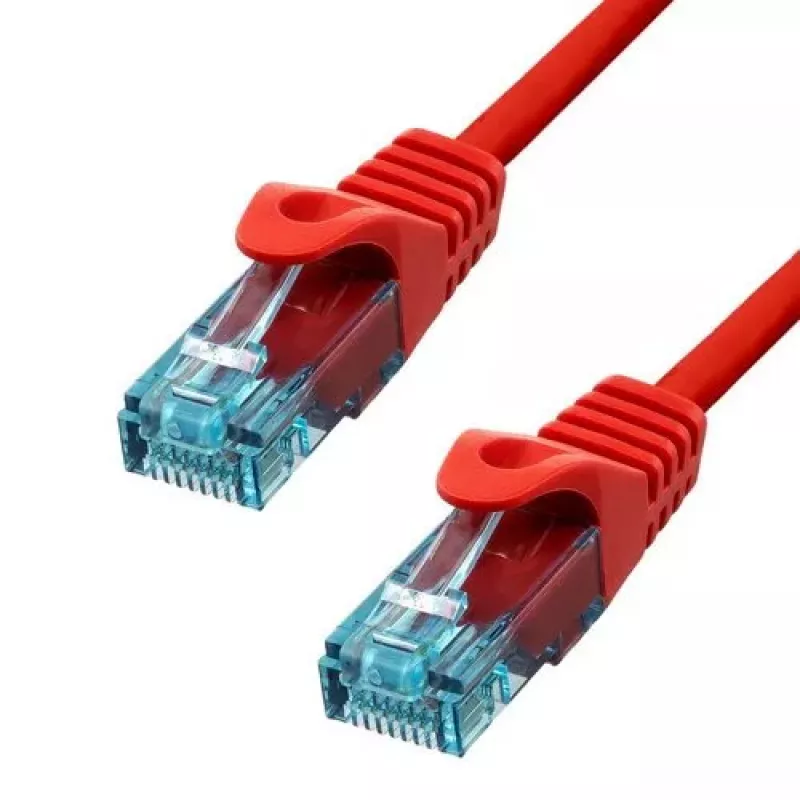

Καλώδιο Ethernet ProXtend CAT6A RJ-45 U/UTP 7 m κόκκινο

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (7 m) with RJ-45 connectors is designed for high-speed wired networks, supporting data rates up to 10000 Mbit/s and 10GBase-T applications. The cable uses 99.9% pure copper conductors (AWG 24) and a low-smoke zero-halogen (LSZH) outer jacket for safer operation in enclosed spaces. Connectors are gold-plated (50µ"U) for improved contact durability and transmission quality. The cable supports PoE+ and is available in a red finish.

Advantages

The cable construction with 99.9% pure copper strands and AWG 24 provides stable signal integrity and low attenuation for 10GBase-T performance. The LSZH jacket reduces smoke and toxic emissions in the event of a fire, improving safety in installations. Gold-plated (50µ"U) RJ-45 contacts increase wear resistance and deliver higher throughput compared with standard metal-plated connectors. Strain relief and a snagless latch protector add durability and ease of installation.

Suitable for

• 10GBase-T server and switch connections
• High-speed desktop and workstation networking
• PoE+ devices such as access points and VoIP phones
• Office and data center horizontal cabling where LSZH is required

Key specifications

• Cable type: CAT6A U/UTP CU
• Length: 7 m
• Connectors: RJ-45 to RJ-45, 50µ"U gold plating
• Conductor: 99.9% pure copper, AWG 24
• Data rate: up to 10000 Mbit/s (10GBase-T)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Supports: PoE+
• Colour: Red

How to use

Connect each RJ-45 connector to the corresponding Ethernet port on your network equipment (switch, router, server or device). Ensure connectors are fully inserted until the latch clicks. Route the cable avoiding sharp bends, kinks and electromagnetic interference sources to maintain signal quality. Use the built-in strain relief and latch protector to minimize connector stress during handling and installation.

Recommendations

For best performance, keep cable runs within standard maximum lengths for 10GBase-T horizontal cabling, avoid running parallel to high-voltage power lines, and terminate using compatible RJ-45 ports rated for CAT6A to preserve 10 Gbit/s capability.
