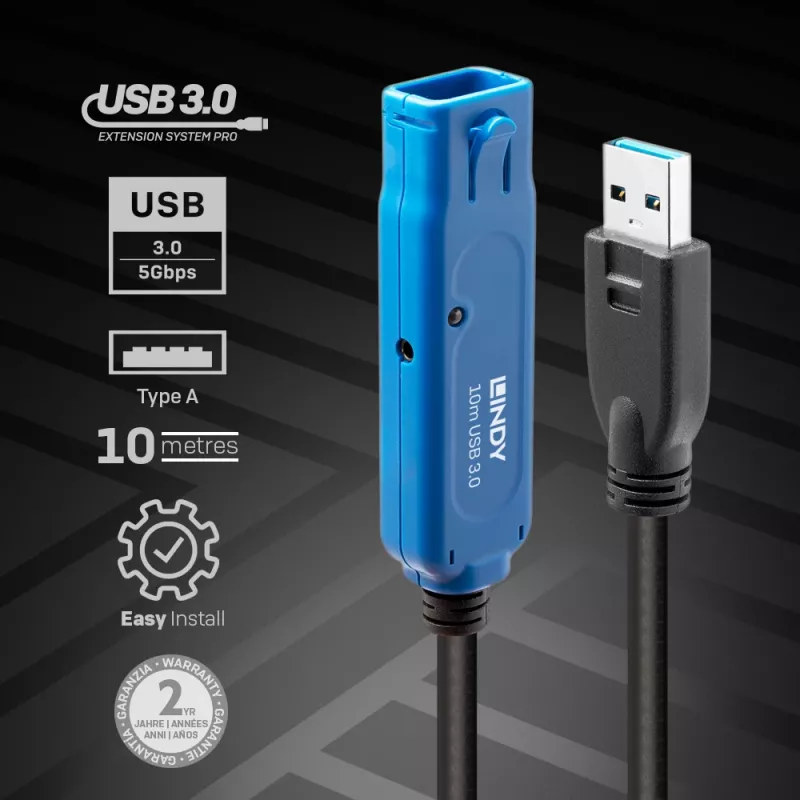

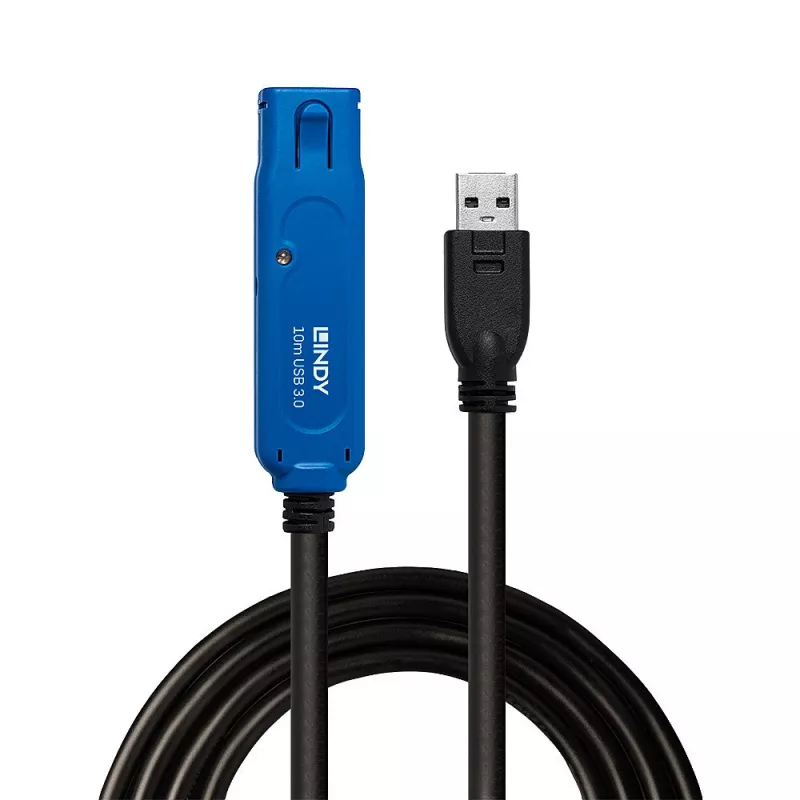

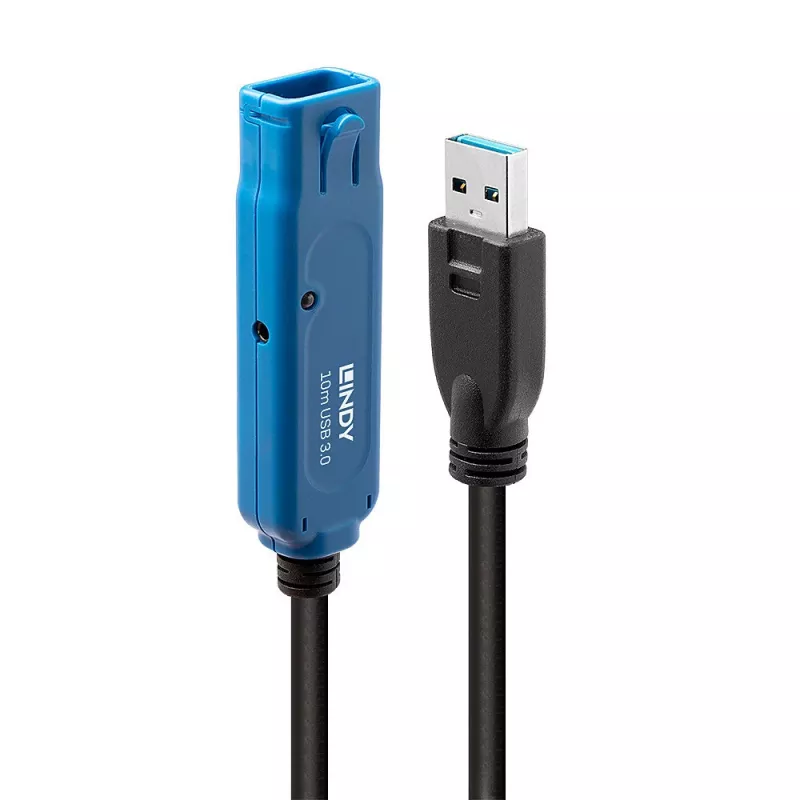

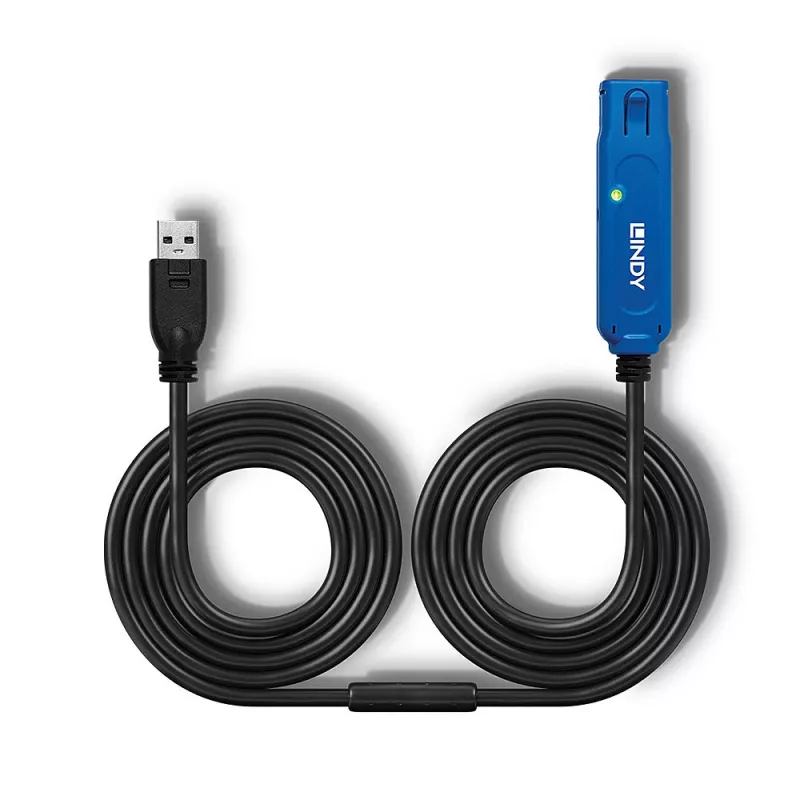

Καλώδιο επέκτασης USB Lindy 10m Active Extension Pro

The Lindy 10m USB 3.0 Active Extension Cable Pro enables connection of a computer to USB 3.0 SuperSpeed peripherals over long distances. It supports data transfer speeds up to 5 Gbps and uses active signal boosting and locking connectors to maintain reliable performance in demanding setups. The cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro, a modular solution for extending and distributing USB signals up to 40 m depending on cable configuration.

Advantages

The cable provides SuperSpeed USB 3.0 transfer rates (up to 5 Gbps) with active electronics that preserve signal integrity over a 10 m span. Locking connectors reduce accidental disconnects and the design is compatible with other Lindy Extension System Pro components to create cascaded extensions or hub endpoints for multiple devices.

Key specifications

• Length: 10 m
• Interface: USB 3.0 SuperSpeed (USB Type A compatible)
• Maximum data rate: up to 5 Gbps
• Active extension cable with integrated signal conditioning

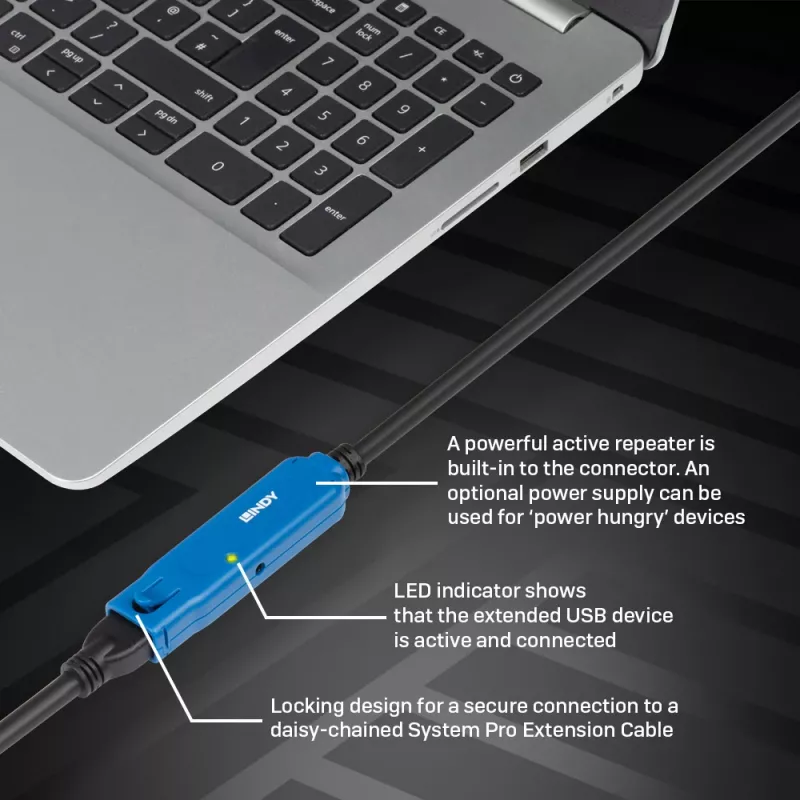

• Locking connectors for secure connection

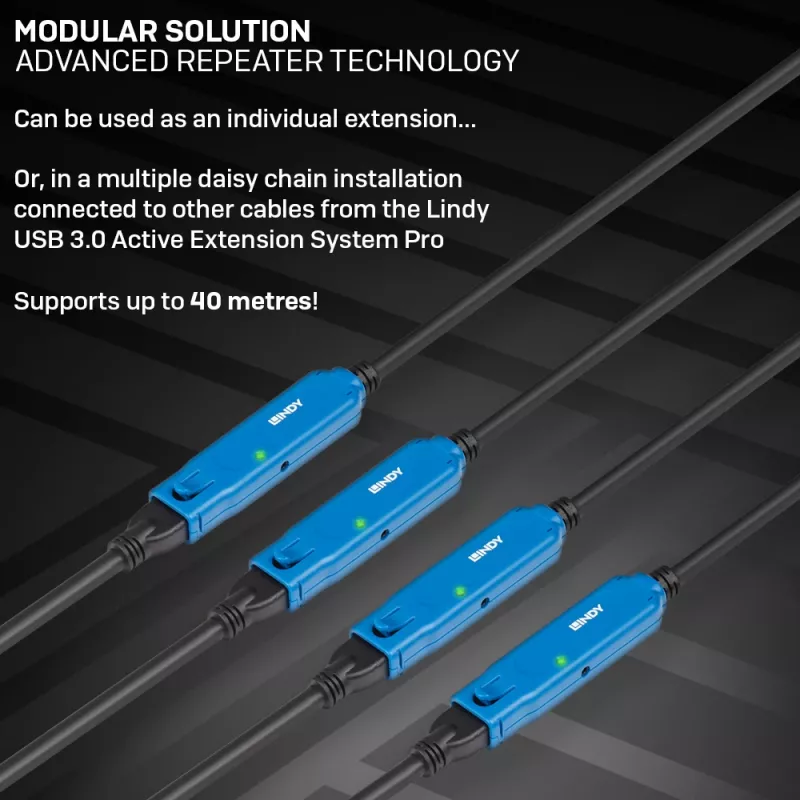

• Can be used alone or within Lindy USB 3.0 Active Extension System Pro (cascadable up to 40 m)

How to use

For standalone use, connect the cable between the computer USB host and the USB 3.0 peripheral. When integrating into the Lindy USB 3.0 Active Extension System Pro, the first unit connected to the computer must be the USB 3.0 Active Extension Pro 8 m (No. 43158) or 15 m (No. 43229). After the first cable is installed, cascade additional Extension System Pro cables as needed up to a total of 40 m. The final segment can be any cable or hub from the Extension System Pro range; if multiple devices or high-power devices are required, use the 10 m Hub Pro (No. 43159) with its power supply as the endpoint.

Recommendations

Ensure compatibility of host and devices (USB Type A or Type C host) and select the correct first cable (8 m or 15 m) when building a cascaded Extension System Pro installation. For high power devices or multiple endpoints, finish the extension with the 10 m Hub Pro and its power supply.
