Καλώδιο DisplayPort PureLink PureInstall 1,5 m

PI5010 - 8K / 4320p / DisplayPort 1.4 Cable, 1.5m

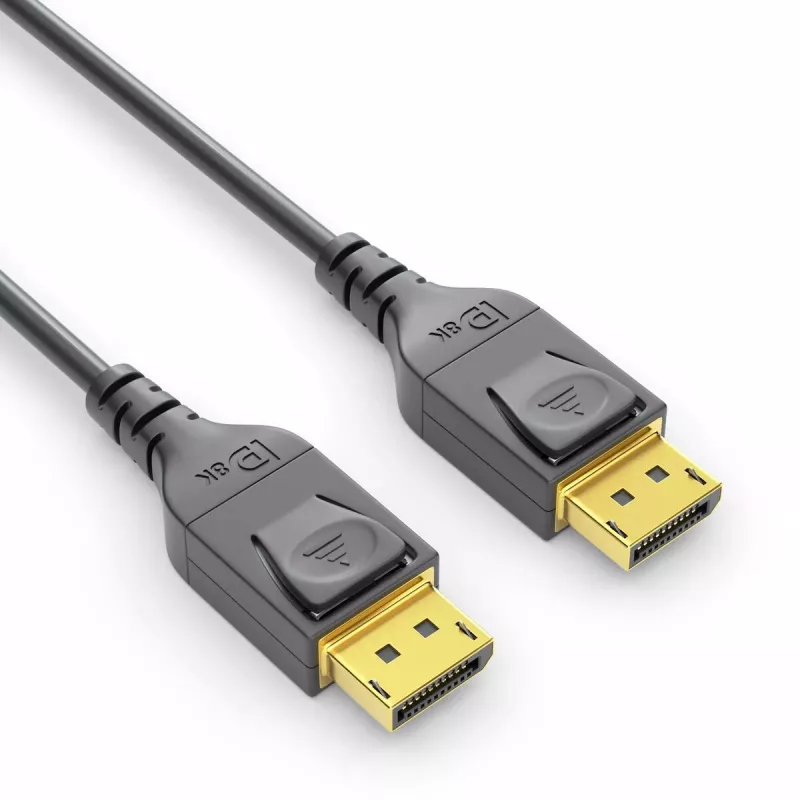

The PureLink PureInstall DisplayPort cable (1.5 m) provides a reliable wired connection between two DisplayPort devices and supports resolutions up to 8K@60Hz and 4K@120Hz according to the DisplayPort 1.4 standard. With up to 25.92 Gbps bandwidth via HBR3 and Display Stream Compression (DSC) 1.2, the cable transmits visually lossless 8K signals including HDR and up to 10‑bit colour depth. Both ends feature gold‑plated PureInstall DisplayPort connectors for secure, long‑term contacts. The cable is RoHS compliant and designed for high‑quality video and audio transmission in professional and installation environments.

Advantages

The cable supports DisplayPort 1.4 features including HBR3 bandwidth and DSC 1.2 for visually lossless 8K@60Hz or 4K@120Hz transmission, and is backward compatible with earlier DisplayPort versions. Triple shielding (aluminum foil, thick braid and inner shield) and an ultra‑pure OFC copper conductor reduce interference and crosstalk. Precision 24‑carat gold‑plated contacts ensure durable, low‑loss connections. Manufactured and 100% tested in modern production facilities, the PureInstall line targets professional installations and demanding applications.

Suitable for

• Connecting high‑resolution monitors and professional displays
• Linking projectors and AV equipment supporting DisplayPort 1.4
• Workstations and graphics cards requiring 8K@60Hz or 4K@120Hz output
• Permanent installations and AV cabinets where interference resistance is required

Key specifications

• Standard: DisplayPort 1.4
• Supported resolutions: up to 8K (7680×4320) @60Hz, 4K (3840×2160) @120Hz
• Bandwidth: up to 25.92 Gbps (HBR3)
• Compression: DSC 1.2 (visually lossless)
• Length: 1.5 m
• Connectors: DisplayPort to DisplayPort, gold‑plated
• Cable colour: Black
• Conductor: OFC copper; triple shielding
• Compliance: RoHS

How to use

Plug one DisplayPort connector into the output of your source device (PC, graphics card, laptop docking station) and the other connector into the DisplayPort input of the target device (monitor, projector, AV receiver). Ensure both devices are powered on and set the display resolution and refresh rate in the source device’s graphics settings to the desired mode (for example 8K@60Hz or 4K@120Hz). If using high resolutions with HDR, enable HDR in the display and operating system settings where applicable.

Recommendations

For optimal signal integrity, avoid tight bends and excessive tension on the cable; route it away from large power cables or sources of electromagnetic interference. For runs longer than 1.5 m with guaranteed 8K performance, consult higher‑specification or active DP 1.4 cable options.
