Γέφυρα Bachmann 930.060 αλουμίνιο 9mm 146mm

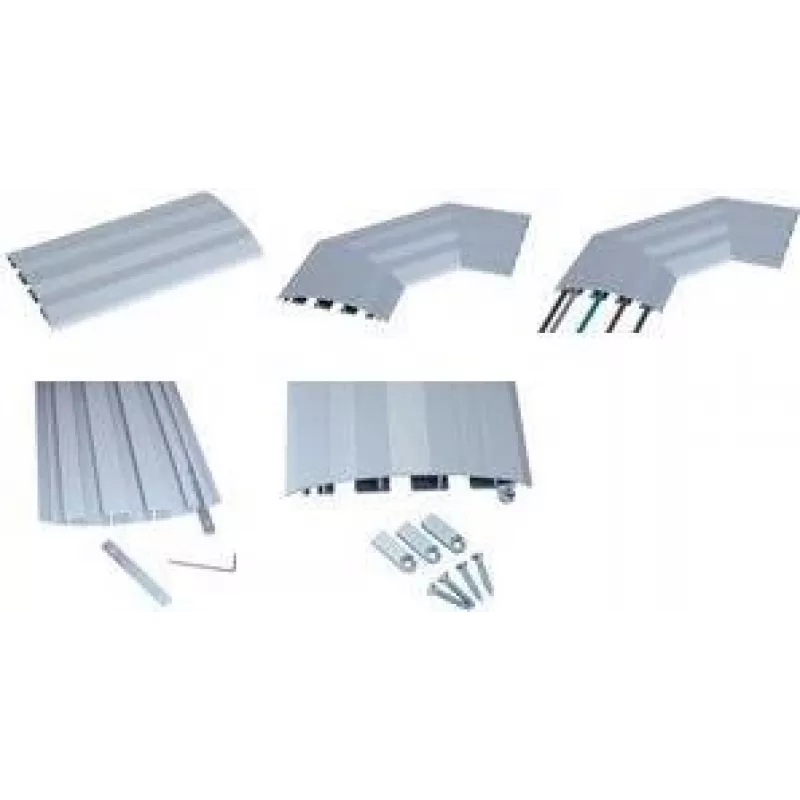

The Bachmann BRIDGE 930.060 is an anodised aluminium floor cable bridge with a rippled anti-slip surface. It has a total width of 146 mm and a profile thickness of 9 mm. The bridge is designed for routing power and data cables separately through a three-chamber system and can be fixed to the floor with double-sided tape or screws using appropriate fixing accessories.

Advantages

Anodised aluminium construction provides corrosion resistance and low maintenance. The rippled surface reduces the risk of slipping when installed on walking surfaces. The 3-chamber internal layout separates power and data cables to reduce interference and keep installations organized. Lightweight design simplifies handling and installation while remaining dimensionally stable for reliable performance.

Suitable for

• Temporary or permanent floor cable management in offices and conference rooms
• Routing power and data cables across pedestrian areas
• Use in commercial and light industrial environments where a low-profile bridge is required

Key specifications

• Brand: Bachmann
• Model / MPN: 930.060
• EAN: 4016514023905
• Material: Anodised aluminium
• Profile thickness: 9 mm
• Overall width: 146 mm
• Internal design: 3-chamber system for separate cable routing
• Fixing: Can be taped with double-sided tape or screwed to the floor (fixings not included)

How to use

Measure and mark the intended run on the floor, ensuring a clean, dry surface for installation. Route power and data cables into separate chambers of the bridge before positioning it. If using double-sided tape, apply tape to the underside of the profile and press firmly in place. If fixing with screws, pre-drill holes as needed and secure the bridge with appropriate floor fixings (not supplied). Confirm the bridge is level and that cables are contained within the chambers to avoid damage.

Recommendations

Use appropriate floor fixings and follow local electrical and building regulations when routing power cables. For installations on uneven or heavily trafficked surfaces consider screwing the profile to the floor for increased stability. Regularly inspect the bridge for wear or displacement and replace fixings if necessary.
