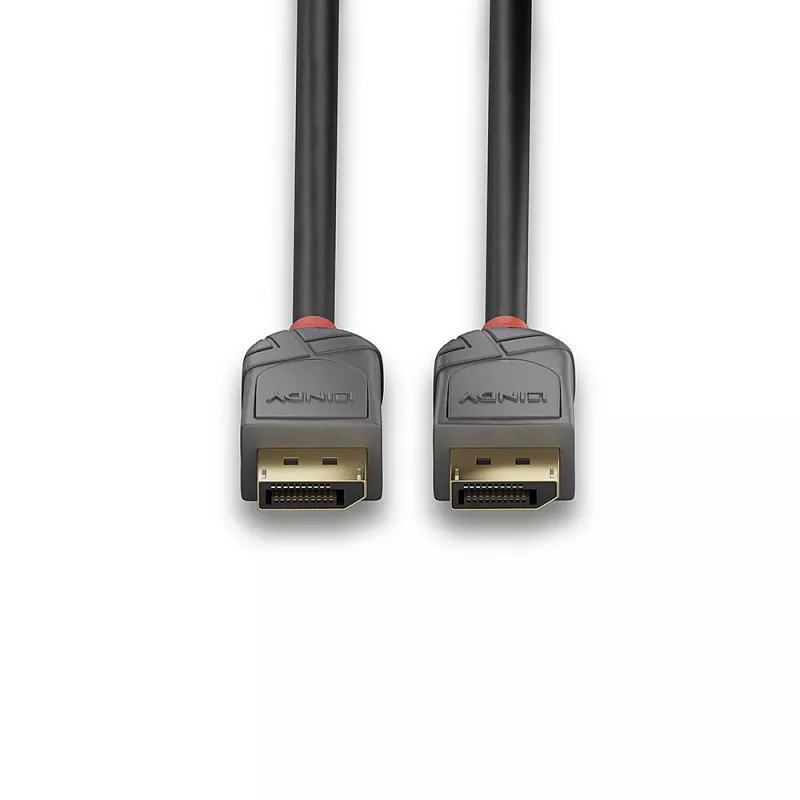

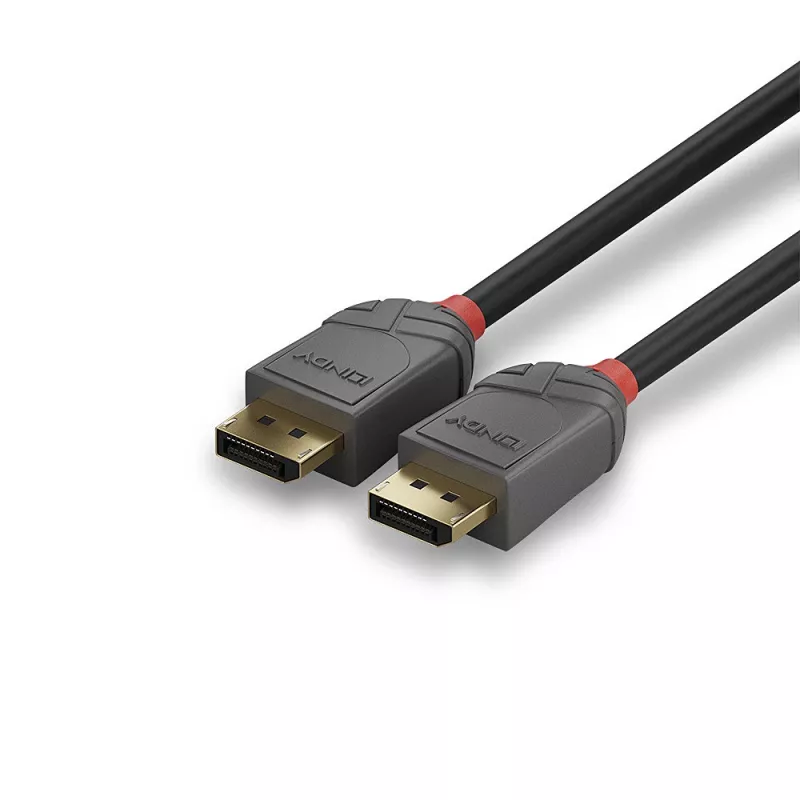

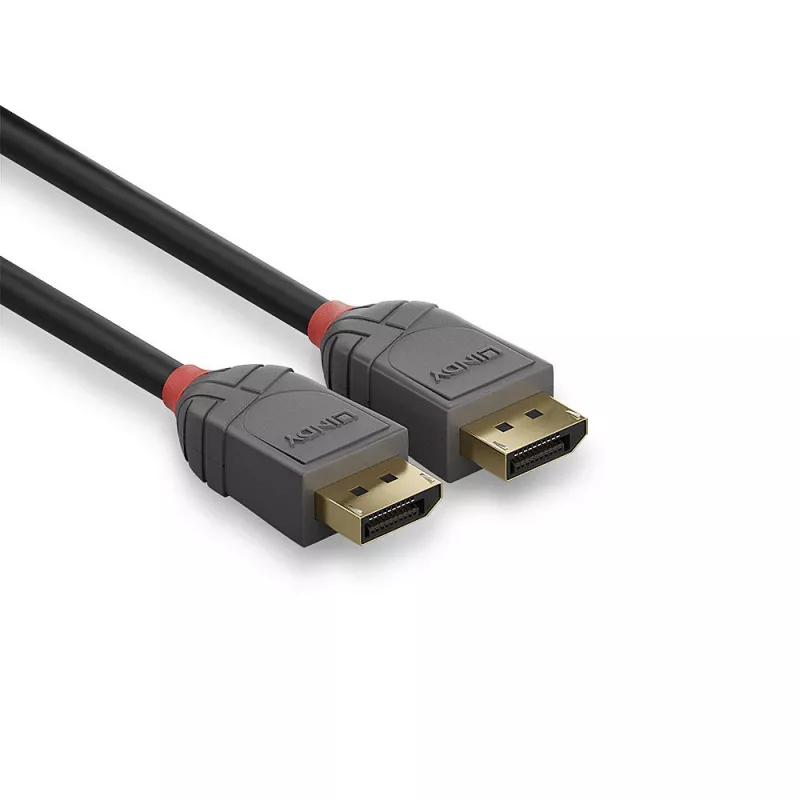

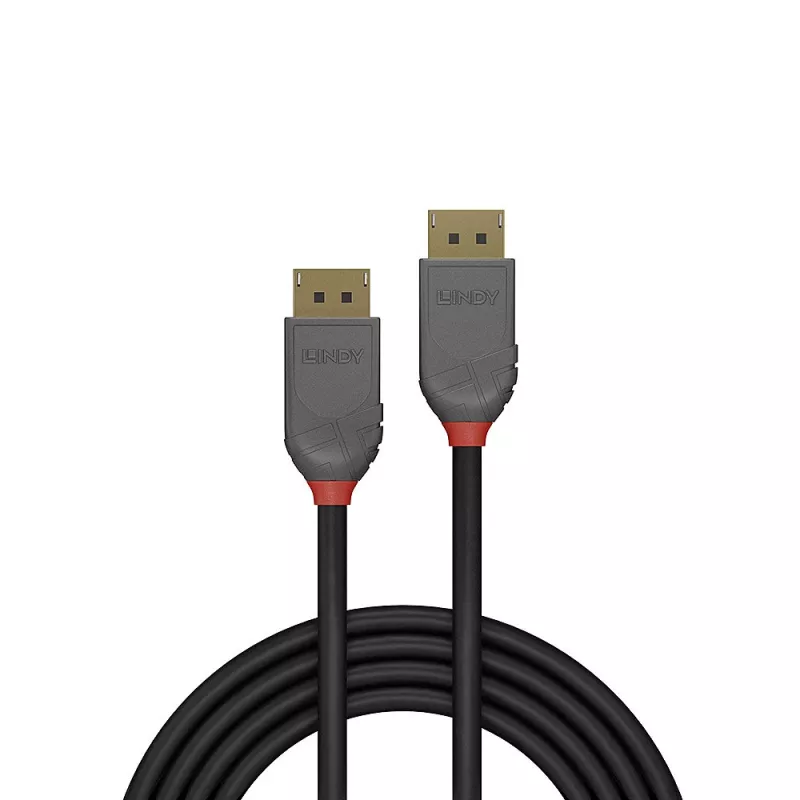

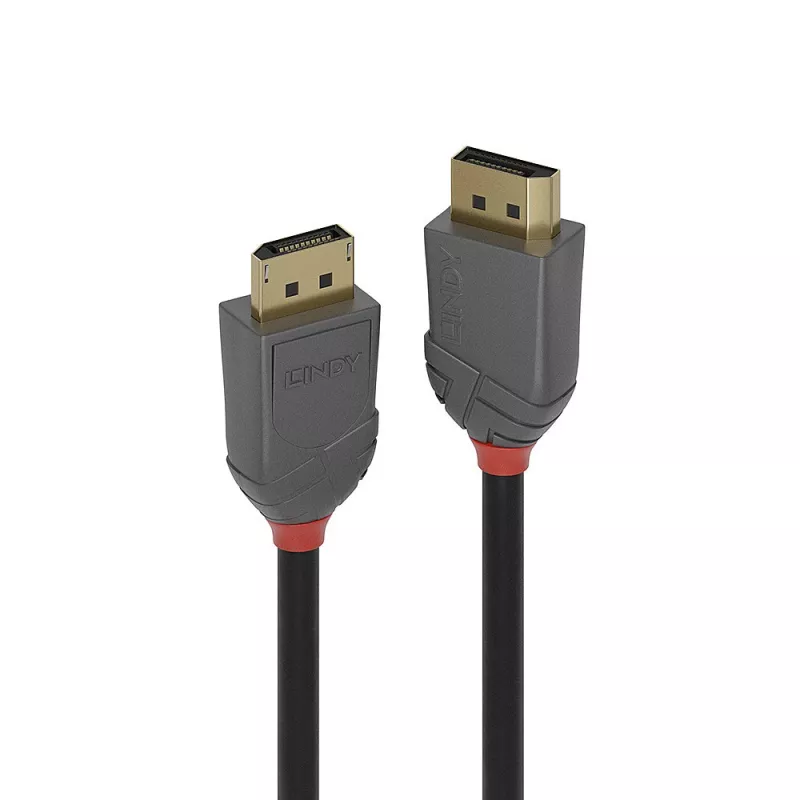

Καλώδιο DisplayPort Lindy 2m DisplayPort 1.4 Καλώδιο Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are designed for high-performance connections in commercial AV and IT installations. These DisplayPort cables support DisplayPort 1.4 technology and are DisplayPort compliance certified to ensure compatibility with DisplayPort-enabled devices, delivering UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit as well as 4K 4096x2160@144Hz 4:2:2 10bit and HDCP support. Anthra Line cables are available in multiple lengths from 0.5 m to 5 m to suit different installation needs.

Advantages

Anthra Line DisplayPort cables feature triple shielding and 28AWG tinned copper conductors for improved signal performance and corrosion resistance. High-quality 24K gold-plated contacts and robust connectors maintain signal integrity and reliable long-term operation. The cables are engineered to meet professional AV and IT installation requirements, providing stable transmission for high-resolution video and protected HDCP content.

Key specifications

• Standard: DisplayPort 1.4
• Maximum resolution: up to 8K 7680x4320@60Hz 4:2:2 8bit
• Also supports: 4K 4096x2160@144Hz 4:2:2 10bit
• HDCP: supported
• Conductors: 28AWG tinned copper
• Shielding: triple shielded
• Contacts: 24K gold plated
• Lengths available: 0.5 m to 5 m

How to use

Connect one end of the Anthra Line DisplayPort cable to the DisplayPort output of your source device and the other end to the DisplayPort input of your display or capture device. Ensure connectors are fully inserted and secured. For best performance, use cable lengths appropriate to the distance between devices and avoid severe bends or kinks. If HDCP-protected content is required, confirm both source and display support HDCP.

Recommendations

Choose the shortest cable length that meets your installation requirements to minimize signal loss; when deploying in professional AV setups, verify DisplayPort 1.4 compatibility on all devices to achieve the specified resolutions.
