Καλώδιο δικτύου Patch DIGITUS CAT6 U-UTP λεπτό, 5 m, μπλε

DIGITUS CAT6 U-UTP Slim, 5 m, blue is an unshielded twisted-pair Ethernet patch cable designed for structured network cabling where space is limited. With a slim 2.7 mm outer diameter and flexible jacket, this CAT6 cable supports Gigabit Ethernet speeds and operation up to 250 MHz while maintaining compatibility with standard RJ45 ports. The cable is constructed with stranded bare copper conductors and a molded strain-relief sleeve with locking lever protection to reduce the risk of connector damage during installation and everyday use.

Advantages

The slim profile reduces bulk in cable runs and patch panels, enabling higher port density and neater cable management in racks, switches and workstations. Its LSZH outer casing minimizes smoke and toxic gas emission in the event of fire. The cable supports PoE and PoE+ power delivery due to pure copper conductors and meets established CAT6 specifications for reliable data transmission.

Suitable for

• Office network patching between switches, patch panels and wall outlets
• Home network setups requiring compact cabling
• High-density rack or cabinet environments where cable diameter impacts routing
• Connections for routers, switches and network-enabled devices supporting Gigabit Ethernet

Key specifications

• Category: CAT6 U-UTP (unshielded twisted pair)
• Length: 5 m
• Outer diameter: 2.7 mm ± 0.15 mm
• Conductor: Stranded AWG 32/7 bare copper
• Insulation: HD-PE (high-density polyethylene)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Frequency: up to 250 MHz
• Transmission speed: up to 1 Gbit/s (1000BASE-T)

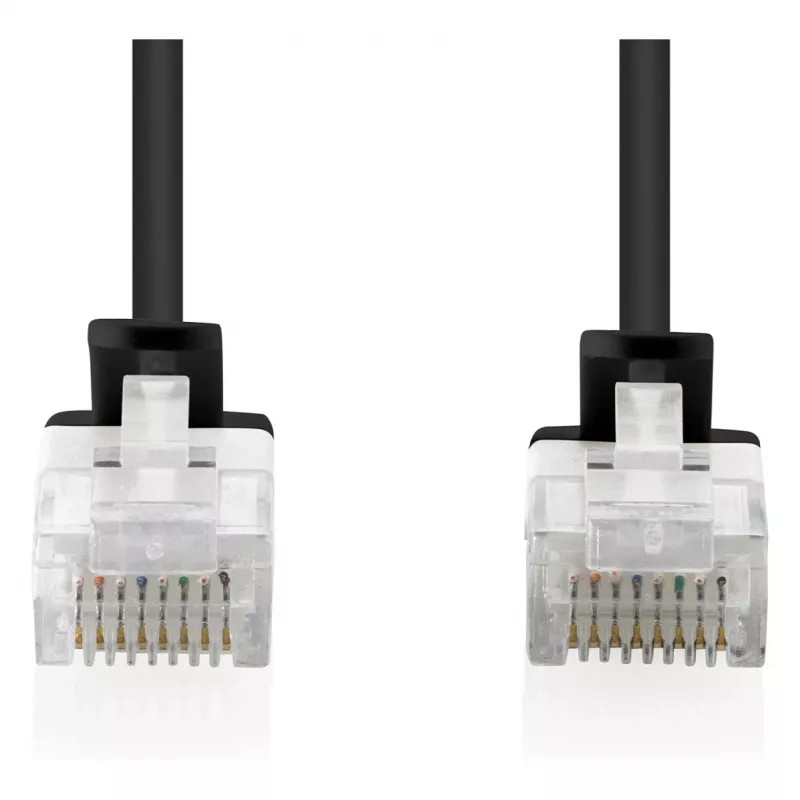

• Connector: RJ45 plug with molded anti-kink sleeve and strain relief
• Bending radius: 15 × outer diameter
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke emission: IEC 60332-1, IEC 61034
• Typical supported standards: IEEE 802.3 10/100/1000BASE-T
• Service life: approx. 750 mating cycles

How to use

Connect one RJ45 plug to the network device (switch, patch panel, router or wall outlet) and the other plug to the corresponding port on the opposite device, ensuring the locking tab engages to secure the connection. Route the cable through cable management channels or along rack sides using the slim profile to minimize obstruction. Avoid sharp bends below the specified bending radius and do not pull on the cable body when unplugging; grasp the connector housing to release the locking tab.

Recommendations

For best performance, keep cable runs within standard length limits for Ethernet and separate U-UTP patch cords from strong electrical sources to avoid electromagnetic interference. When installing in high-density environments, route cables in dedicated pathways and avoid excessive twisting or kinked areas to preserve signal integrity and service life.
