Καλώδιο δικτύου Patch CAT 6 U-UTP λεπτό 1,5 m, DIGITUS, κόκκινο

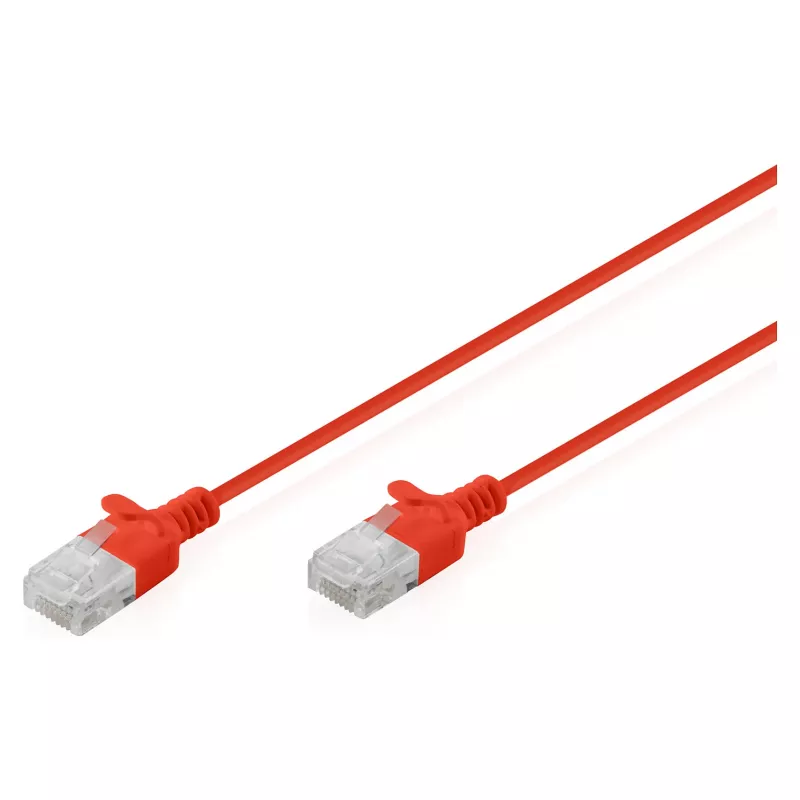

Slim CAT 6 U-UTP patch cable by DIGITUS, 1.5 m in red, designed for structured cabling and short network runs where a reduced cable diameter and high flexibility are required. The cable supports CAT 6 performance over unshielded twisted pairs with transmission up to 250 MHz and data rates suitable for Gigabit Ethernet. Constructed with stranded bare copper conductors, HD-PE insulation and an LSZH jacket, the cable includes a molded anti-kink sleeve and locking lever protection on the RJ45 plug for reliable mechanical connection in dense installations.

Advantages

The slim outer diameter of approximately 2.7 mm and a flexible jacket allow easy routing in confined spaces, behind patch panels and inside cable ducts. The cable supports PoE and PoE+ applications due to its pure copper conductors and meets internationally recognized standards for CAT 6 performance. Robust mechanical design with strain relief and lever protection reduces the risk of connector damage during frequent re-patching.

Suitable for

• Connecting switches, routers and patch panels in office and home networks
• High-density cabling environments and server racks with limited space
• Short patch runs between wall outlets and network devices
• Power over Ethernet deployments requiring compact cabling

Key specifications

• Category: CAT 6 U-UTP
• Length: 1.5 m
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: approx. 2.7 mm ± 0.15 mm
• Conductor: stranded AWG 32/7 bare copper
• Conductor diameter: ~0.08 mm ± 0.005 mm
• Insulation: HD-PE (high-density polyethylene)
• Maximum frequency: 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)
• Bending radius: 15 × outer diameter
• Plug: RJ45 with molded anti-kink sleeve and locking lever protection
• Cabling standard: EIA/TIA 568B
• Operating temperature range: -20 °C to +60 °C
• Flame retardancy and smoke emission conforming to IEC 60332-1 and IEC 61034
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T
• Service life: rated for 750 mating cycles

How to use

Plug one RJ45 connector into the network device (switch, router, patch panel or wall outlet) and the other connector into the target device. Ensure the locking lever clicks into place to secure the connection and avoid excessive bending near the connector by respecting the specified bending radius. For installations in confined spaces, route the slim cable carefully through cable management channels or behind equipment to maintain signal integrity and reduce mechanical stress on the connectors.

Recommendations

Use the DIGITUS CAT 6 slim patch cable for short runs and high-density installations where space is limited. Avoid tight knots and sharp bends; maintain the recommended bending radius and protect connectors during repeated re-plugging to preserve service life and performance.
