Καλώδιο δικτύου Metz Connect 13084FA000-E 10m Cat5e S/UTP Μαύρο

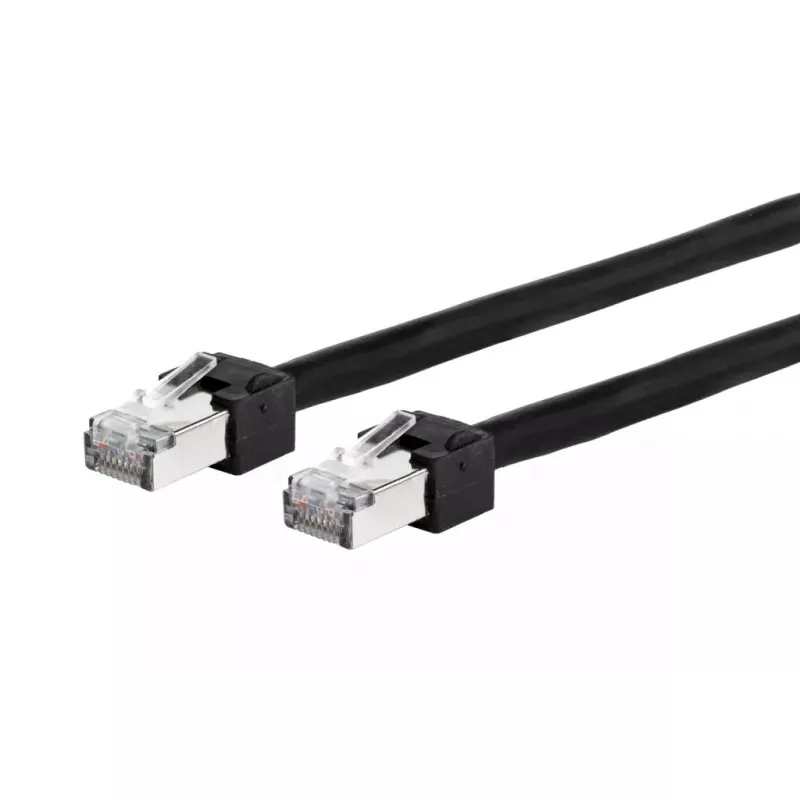

The Metz Connect 13084FA000-E is a 10 m Cat5e S/UTP networking cable with RJ-45 connectors at both ends. It is designed for industrial use with a robust, abrasion-resistant PUR outer sheath (LSHF / FRNC) in black and is suitable for outdoor installation. The cable meets the VDE-AR-N 4100:2019-04 requirement (6 kV impulse voltage test according to DIN EN 60664-1) for installation in metering positions and electrical distribution panels and is constructed as S/UTP 4x2xAWG24/7 for reliable data transmission.

Advantages

The cable offers mechanical robustness and abrasion resistance for machine and plant construction environments and outdoor use. Its LSHF (FRNC) PUR sheath reduces smoke and toxic gas emission in case of fire, while the S/UTP 4x2xAWG24/7 structure provides standard Cat5e performance. It is also tested for repeated moving applications in drag chains, with proven endurance at a 100 mm bending radius and acceleration of 4 m/s² for long-term operation.

Suitable for

• Industrial networking between machines and control systems
• Installation in metering positions and electrical distribution panels
• Outdoor and exposed routing where abrasion resistance is required
• Drag-chain applications with repeated motion

Key specifications

• Length: 10 m
• Standard: Cat5e
• Cable type: S/UTP 4x2xAWG24/7
• Sheath: LSHF (FRNC) PUR, black
• Compliance: VDE-AR-N 4100:2019-04 (6 kV impulse test according to DIN EN 60664-1)
• Connectors: RJ-45 on both ends

How to use

Connect RJ-45 plugs to the corresponding network ports on devices or patch panels. Route the cable following recommended bending radius guidelines (minimum 100 mm in tested drag-chain conditions) and avoid tight kinks. For installations in distribution panels or metering positions, ensure compliance with local wiring practices and the stated impulse voltage requirements.

Recommendations

Use this Metz Connect Cat5e S/UTP cable for fixed and moving industrial connections where abrasion resistance and adherence to VDE-AR-N 4100 requirements are necessary. For best performance in drag-chain installations, maintain the tested bending radius and avoid exposing the cable to mechanical stresses beyond the specified test conditions.
