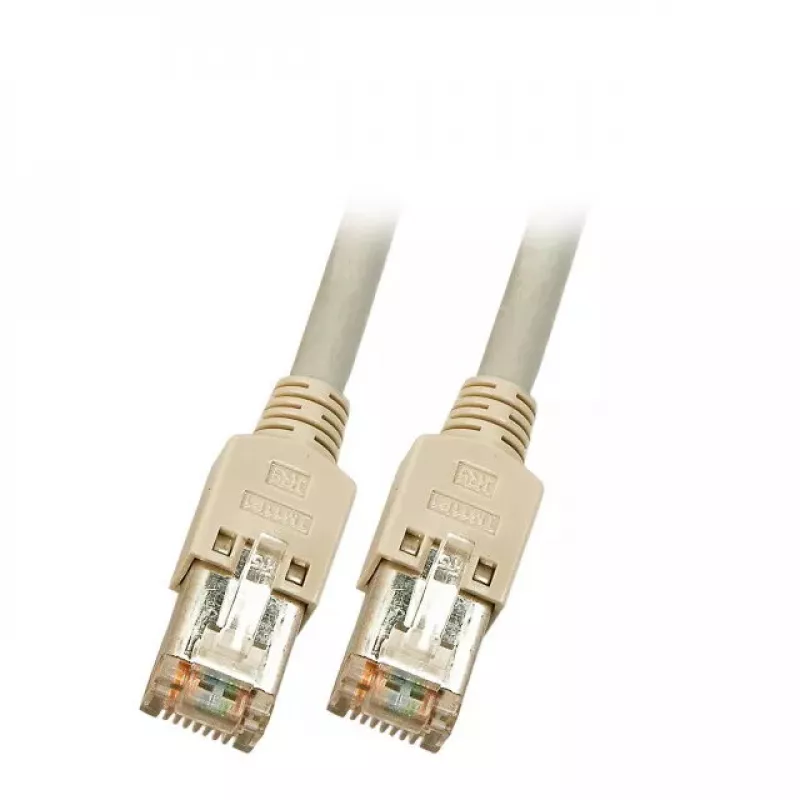

Καλώδιο δικτύου EFB Elektronik Cat5e RJ-45 10m γκρι

The EFB Elektronik Cat5e SF/UTP RJ-45 networking cable (10 m) provides 1 Gigabit Ethernet performance with Cat.5e specification and 100 MHz bandwidth. It uses SF/UTP (foiled pair with overall braid) construction and two shielded Hirose TM11 RJ45 plugs compliant with IEC 60603-7-3. The grey cable is equipped with mounted strain relief boots and follows TIA/EIA 568B pinout.

Advantages

The cable’s SF/UTP (S-FTP) shielding—foil around each pair plus an overall braid—reduces electromagnetic interference and crosstalk for more reliable data transmission. Shielded Hirose TM11 RJ45 plugs ensure secure, low-loss connections suitable for environments with potential interference. Low-smoke, halogen-free (LSZH) materials and flame-retardant construction meet IEC safety standards for reduced emissions in case of fire.

Suitable for

• Wired Gigabit Ethernet connections in homes and offices
• Connections between switches, routers and patch panels
• Environments where reduced electromagnetic interference is required
• Installations requiring LSZH and flame-retardant cabling

Key specifications

• Length: 10 m
• Standard: Cat.5e, 100 MHz
• Bandwidth/data rate: 1 Gigabit Ethernet
• Conductor: 4 x 2 x AWG26/7
• Shielding: SF/UTP (foil on pairs + braid)
• Connectors: 2 × Hirose TM11 RJ45, shielded, IEC 60603-7-3
• Pinout: TIA/EIA 568B coded
• Cable diameter: Ø 5.7 mm
• Safety: Flame retardant IEC 60332-1, halogen-free IEC 60754-2, low smoke IEC 61034
• Colour: Grey

How to use

Connect one RJ-45 plug to a network device (switch, router or PC) and the other plug to the corresponding network port. Ensure both ends are fully inserted until the shielded connector seats and the strain relief boots are positioned to reduce cable stress. Use the TIA/EIA 568B wiring orientation on connected equipment for consistent polarity and pairing.

Recommendations

For optimal performance, avoid running the cable in parallel with high-voltage power lines and keep bend radius greater than four times the cable diameter. Use in indoor installations; verify compatibility of shielded connectors with equipment grounding to maintain the effectiveness of the shielding.
